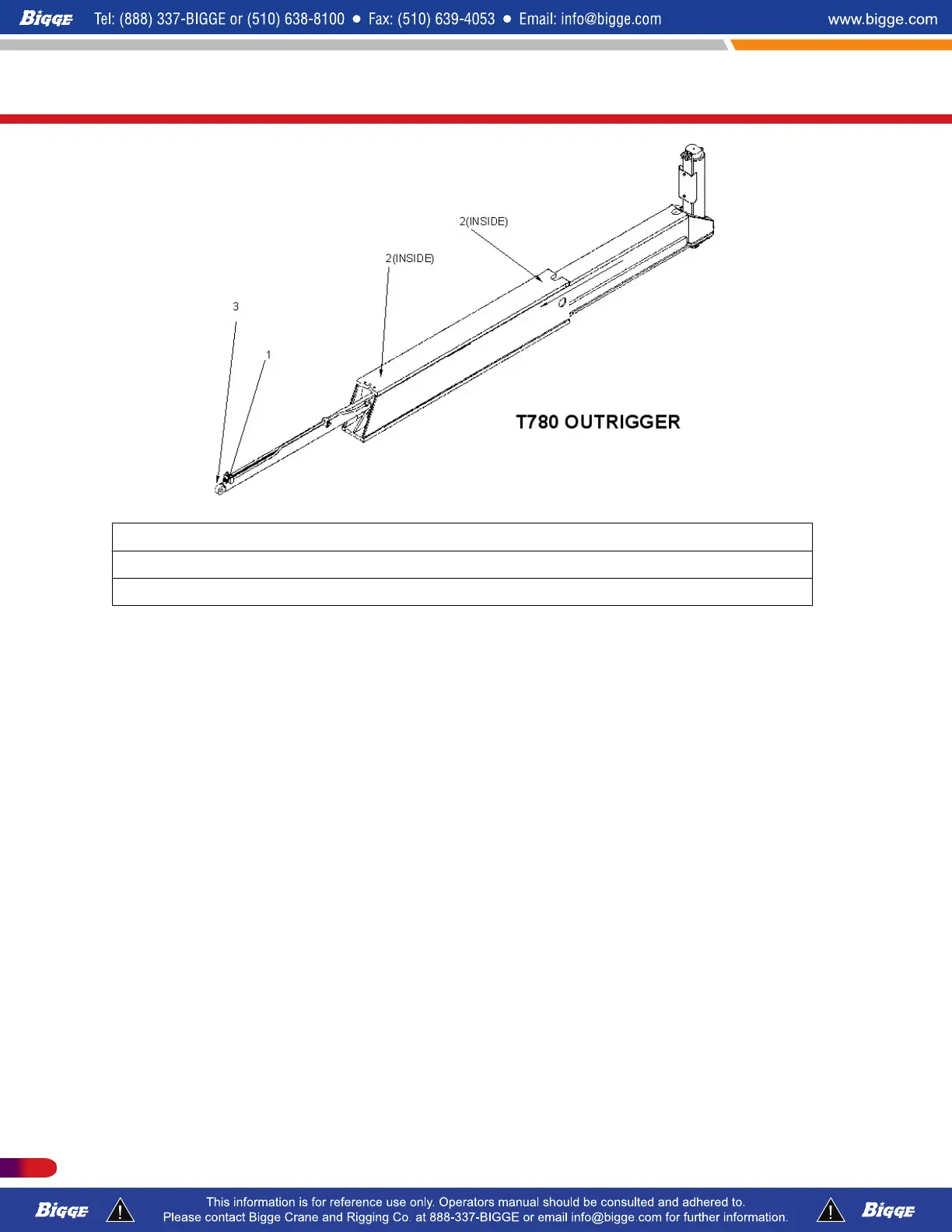

1. Hose Disconnects
2. Wear Pad
3. Outrigger Extend Cylinder Deadend
NOTE: The outriggers section coincides with section 3 in the parts manual.
WEAR PAD (2)
A wear pad (2) is mounted on the back end of each outrigger beam to prevent the beam
from gouging the outrigger box when extending or retracting the outrigger beams. The
wear pad (2) can be reached when the outrigger beam is fully retracted. The wear pad (2)
can be replaced by removing one bolt.
BEAM REMOVAL AND REPLACEMENT
The outrigger beams must be removed to service the outrigger extend cylinder. The beams
are removed by the following procedure:
1.
Disconnect the hydraulic hoses (1) from the extend/ retract cylinder dead end (3).
2.
Remove the extend/retract cylinder dead end pin.
3. Support the beam with a hoist and pull the beam out of the outrigger box. The extend/
retract cylinder will come out with the beam.
Install the outrigger beam by reversing the removal procedure.
T300-1_T500-1_T780
Service / Parts
442 P/N 12261-683
REVISED: January 2015
