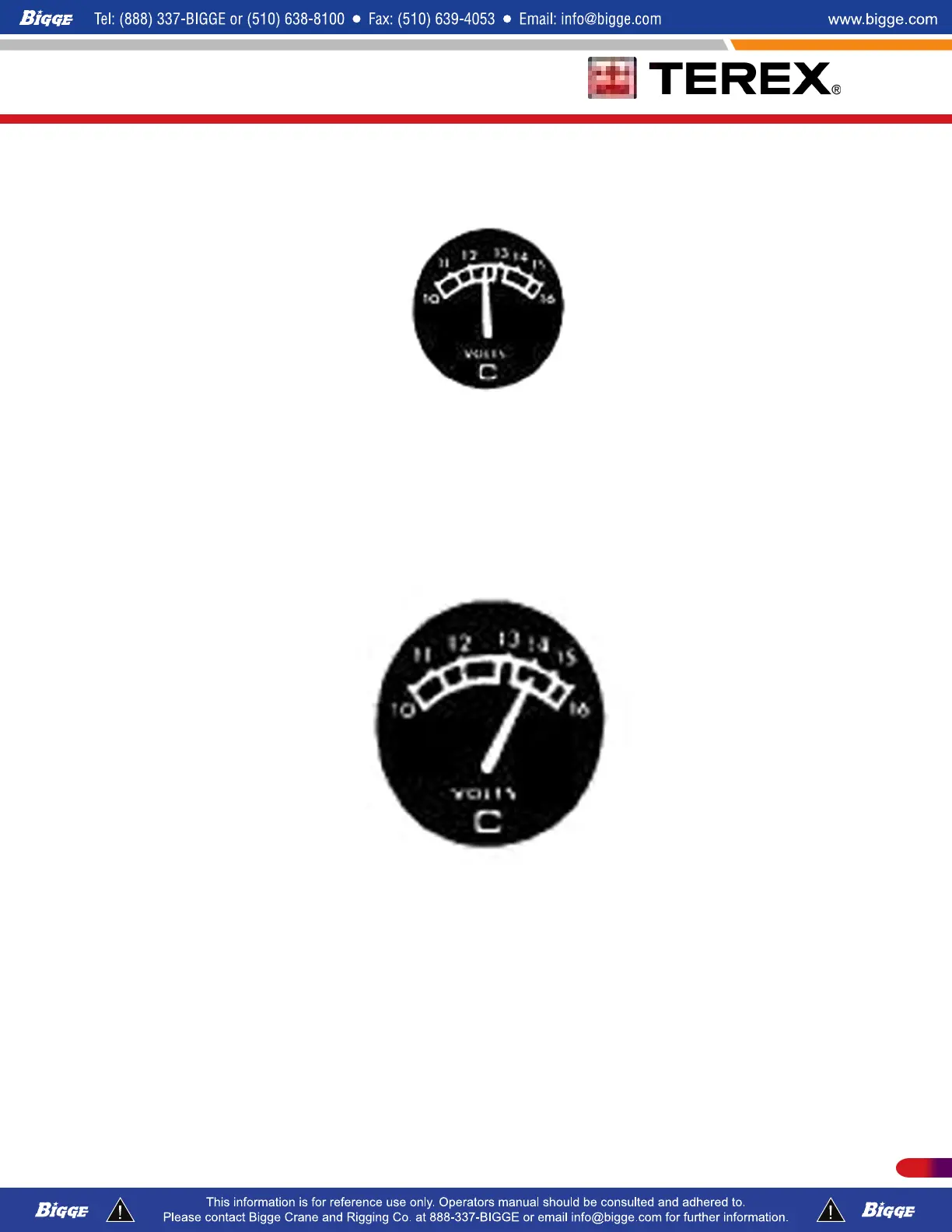

This is the area in which the pointer should be when alternator, voltage regulator, and
battery are all in good condition and working properly.
When the pointer goes above 15.2, the voltage regulator is set too high or is jammed and
continued operation of the engine will burn out the battery.
499P/N 12261-683 REVISED: January 2015
