Changing the main cartridge

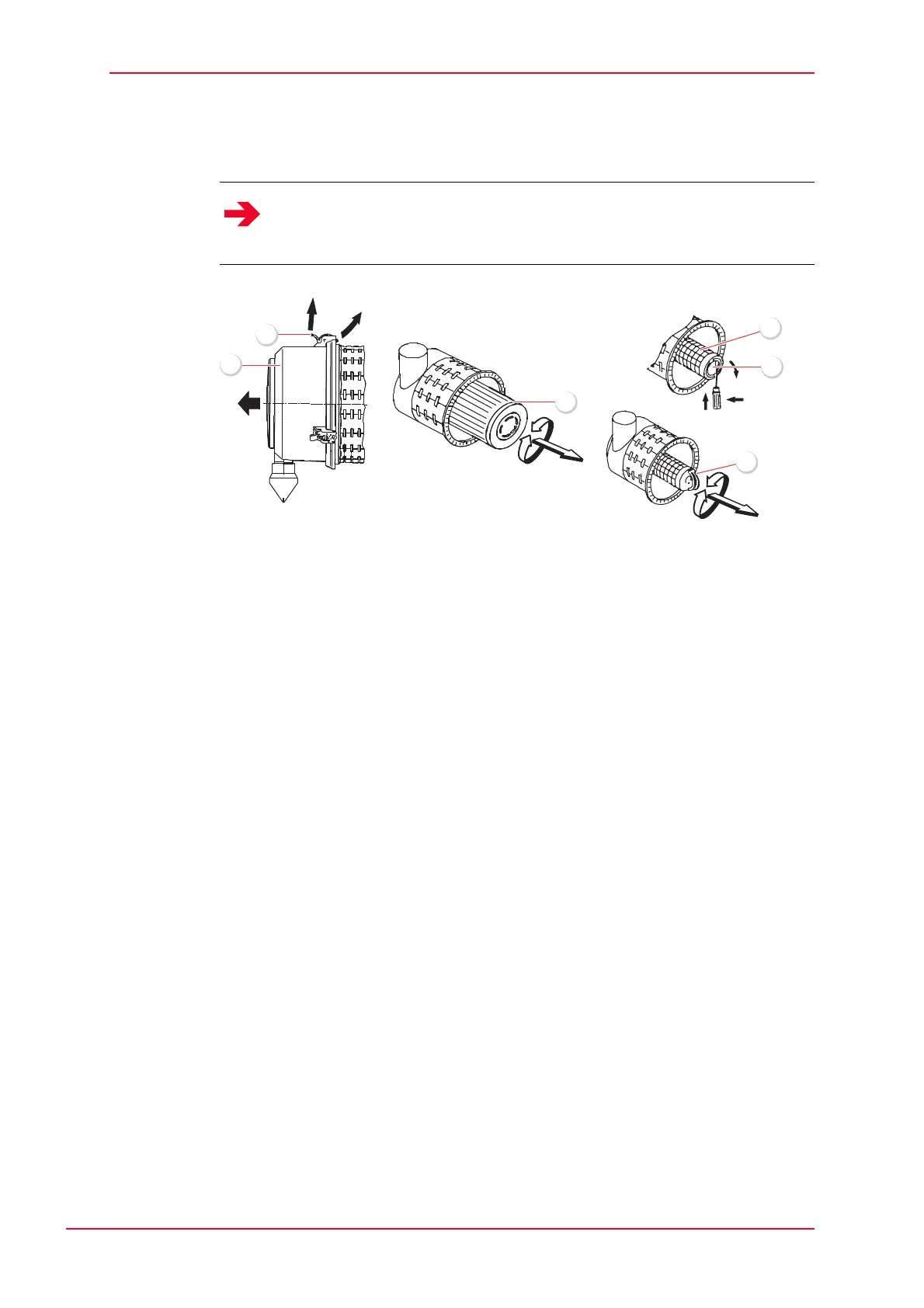

Fig. 6-16 Changing the air filter cartridges
Release the wire fasteners (1) and remove the bottom of the housing (4).
Withdraw the main cartridge (2) by twisting slightly to and fro.
Check whether the safety cartridge (3) must be replaced.
Mark the maintenance in the corresponding marking fields on the safety
cartridge (3).
Insert the new or cleaned main cartridge carefully into the filter housing
starting with the open side and check that it is correctly positioned.
Fit the lower part of the housing. (Pay attention to the position of the dust
ejection valve).
Place the wire fasteners in the groove of the flange on the filter housing and
tighten.
Note
Remove the safety cartridge only in the case of necessary maintenance
work. Only open the seal (5) of the safety cartridge for the purpose of
replacement.
