Changing the safety cartridge

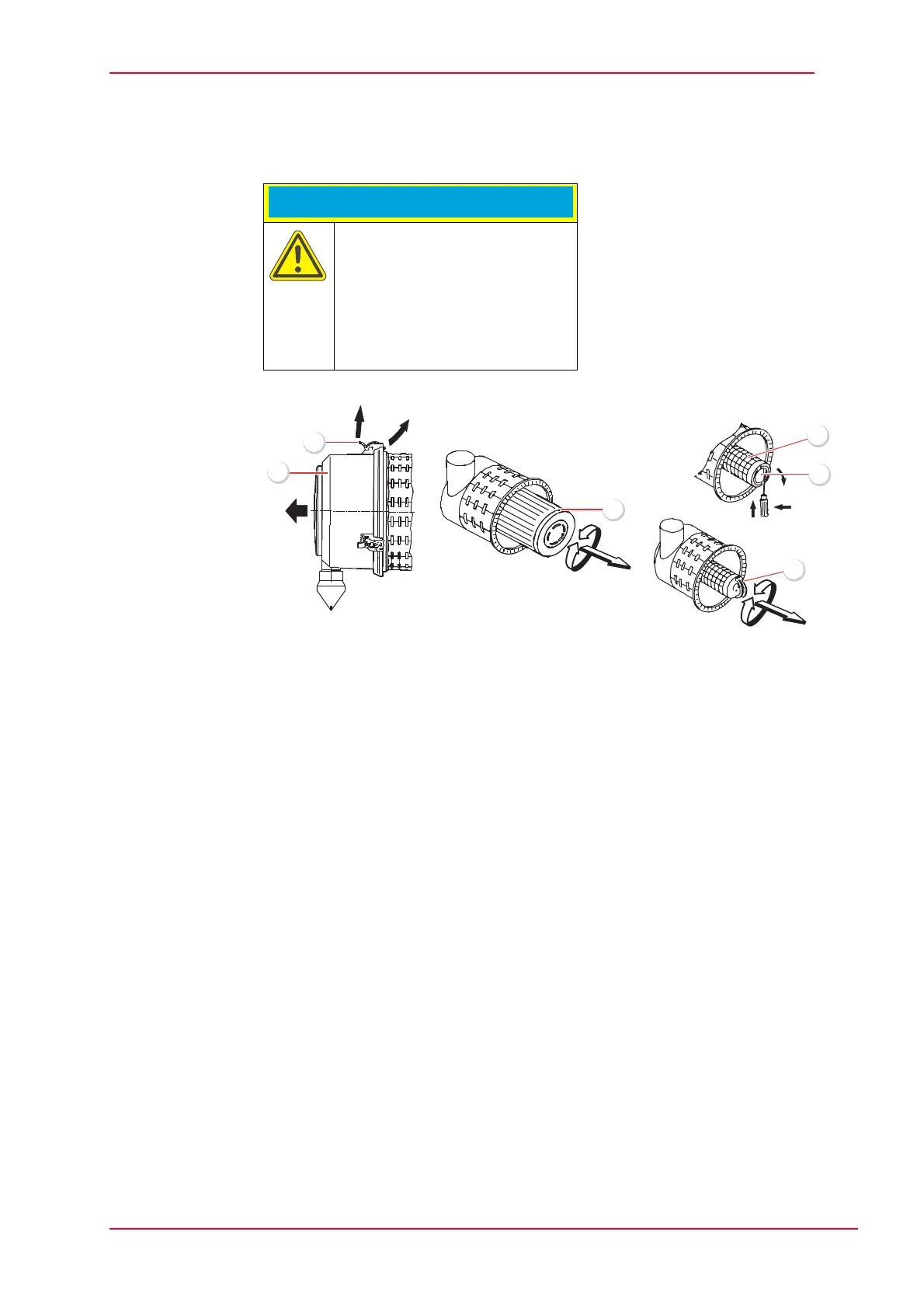

Fig. 6-17 Changing the air filter cartridges
Remove the main filter cartridge.
Using a suitable tool (e.g. screwdriver), pierce the seal (5) of the safety
cartridge (3) from the inside, then lift up the two clips (6).
Grasp the safety cartridge (3) by the two clips (6) and withdraw by moving
slightly to and fro.
Dispose of the safety cartridge.
Insert a new safety cartridge and check that it is correctly positioned.
Re-install the main filter cartridge.
Property damage
Machine damage due to
damaged safety cartridge.
Z Observe that the safety
cartridge must not be cleaned
and used again once it has
been removed.
3
5
6
2
1
4
4560_6016
