Front axle differential

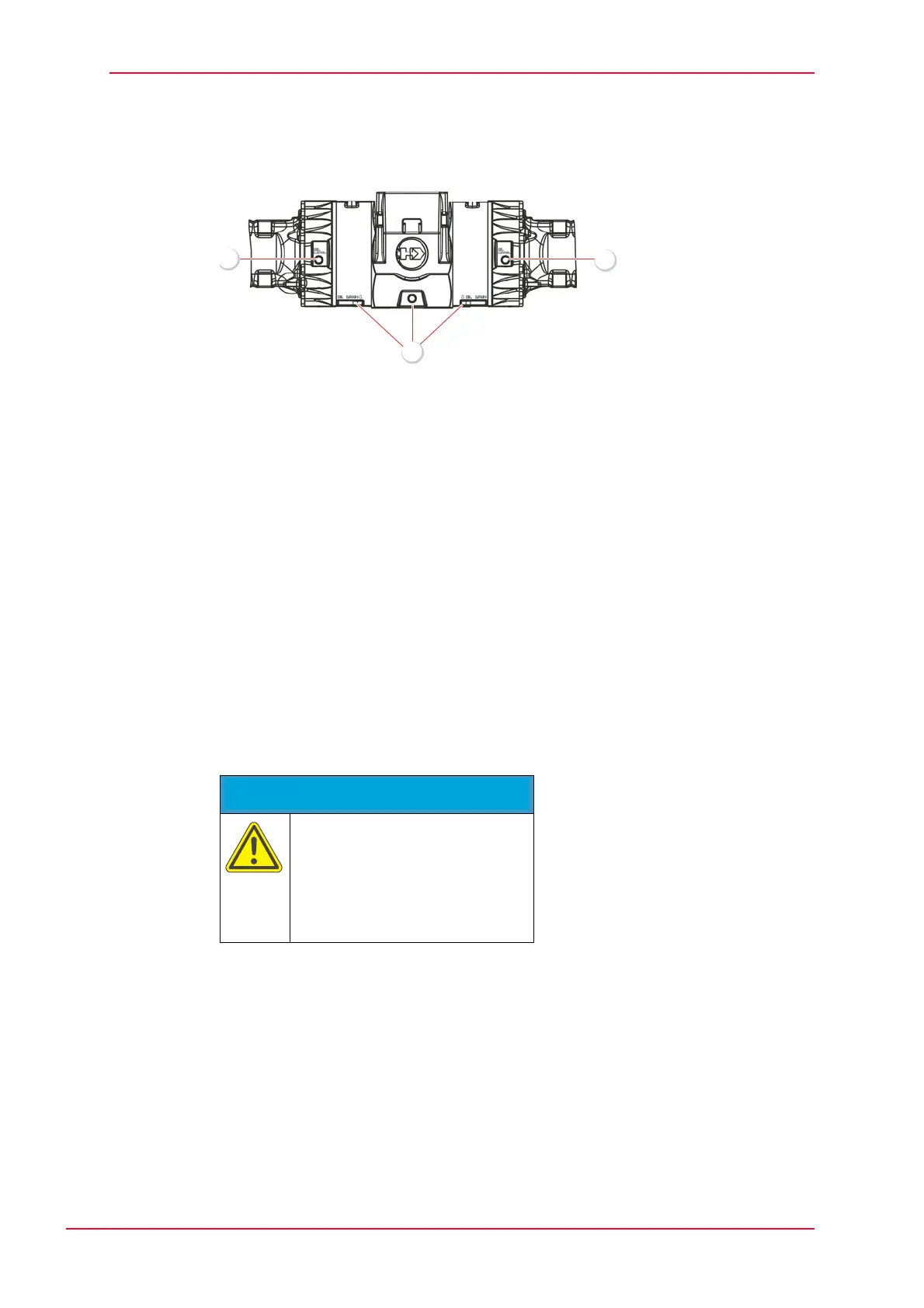

Fig. 6-33 Checking / replacing the front axle oil
Checking the axle oil level
Park the machine in horizontal position.
Remove the inspection-filling plugs (1).
Check if the oil is up to the edge of the inspection-filling hole.
Top up oil if required.
Turn the inspection-filling plugs tightly back in.
Changing axle oil
Park the machine in horizontal position.
Clean the area around the inspection-filling plugs (1) and drain plugs (2).
Open the inspection-filling plugs (1).
Open the drain plugs (2) on the differential and brake housings and drain oil.
Flush the axle, if necessary.
Turn the drain plugs tightly back in.
Pour in oil using the inspection-filling hole until oil escapes from the other
inspection-filling hole.
Turn the inspection-filling plugs (1) tightly back in.
Damage to property
Machine damage from incorrect
oil.
Z Use transmission oil!
See chapter 6.4.2
"Consumables", page 52.
