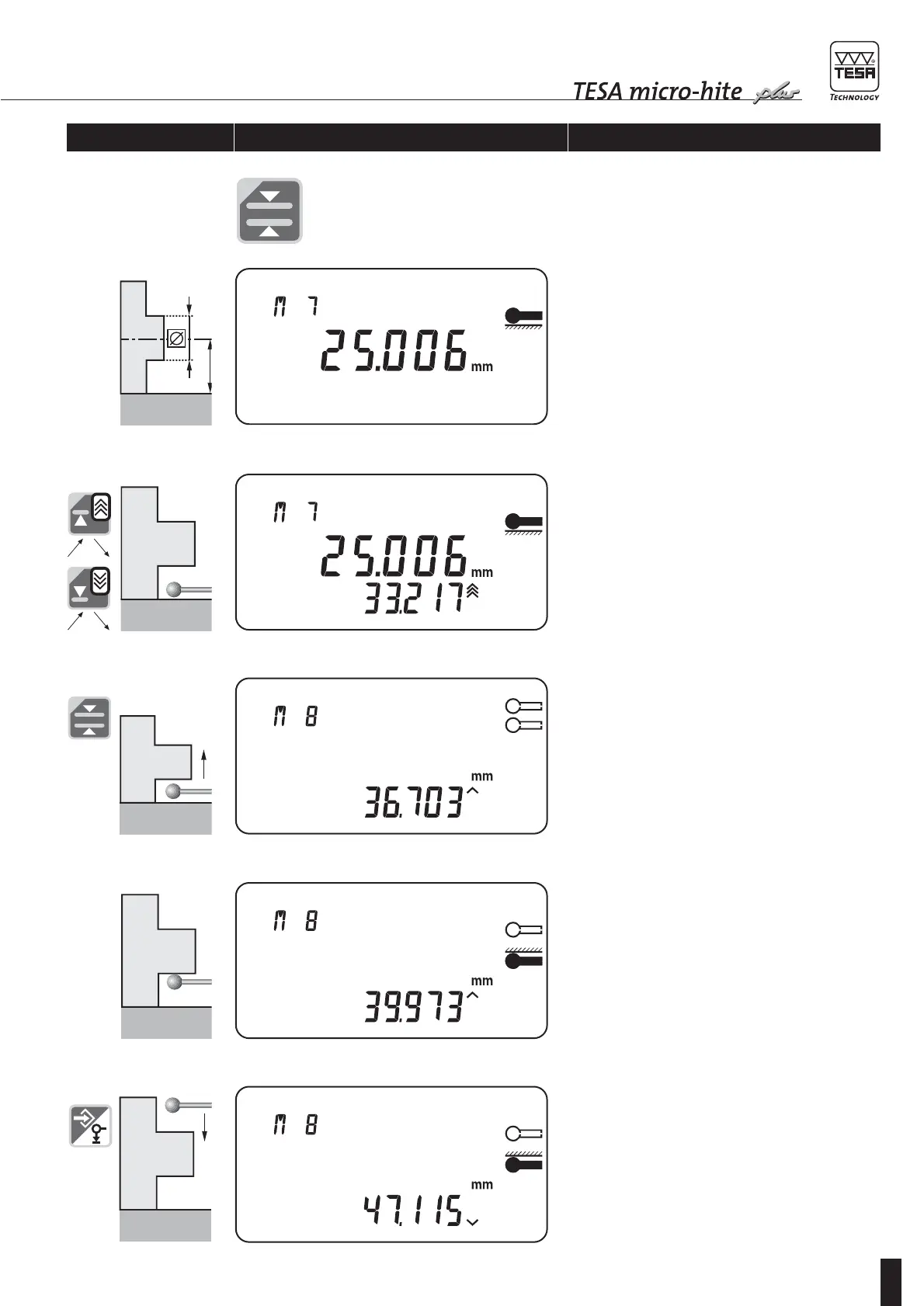

1 Probe contact procedure.
2 Position probe insert below the rib by pressing
both positioning keys or rotating the power control
3 Probe moves up automatically for capturing first
value.
Auxiliary display shows probe displacement,
continuously.
4 First value is being captured with simultaneous dis-
playing of related symbol.
Probe insert stands still once retracted. Use both
positioning keys or the rotary power control to have
it lying above the rib.
5
Activate second value capture by pressing ENTER
or rotating the power control.
Probe moves down automatically for capturing sec-
ond value.
4.10
Measuring ribs
