7.1
RS232
interface
The connecting cable 04761052 is used to link
TESA Micro-hite plus M to SPC printer or a PC.
Baud rate 4800 bauds
Data bits 7 bits
Start 1 bit
Stop 2 bits
Parity even
7.2
Monodirectional
data transmission
Data transfer may either be trigerred off by activat-
ing the function key or using a remote control
switch (hand switch or foot switch) connected to
the port «EXT.P» on the back side of the control
panel.
7.3
Bidirectional
data transmission
This transmission mode allows direct control of the height gauge from a PC. Given instructions are as
follows:
Each command must be ended using ASCII code «CR»
?<cr> Measured value
ID ?<cr> Serial number TE…<cr/lf>
VER ?<cr> Model number 2.1<cr/lf>
UNI ?<cr> Unit system MM or IN<cr/lf>
MM<cr> Metric unit (mm) <cr/lf>
IN<cr> Inch unit (in) <cr/lf>

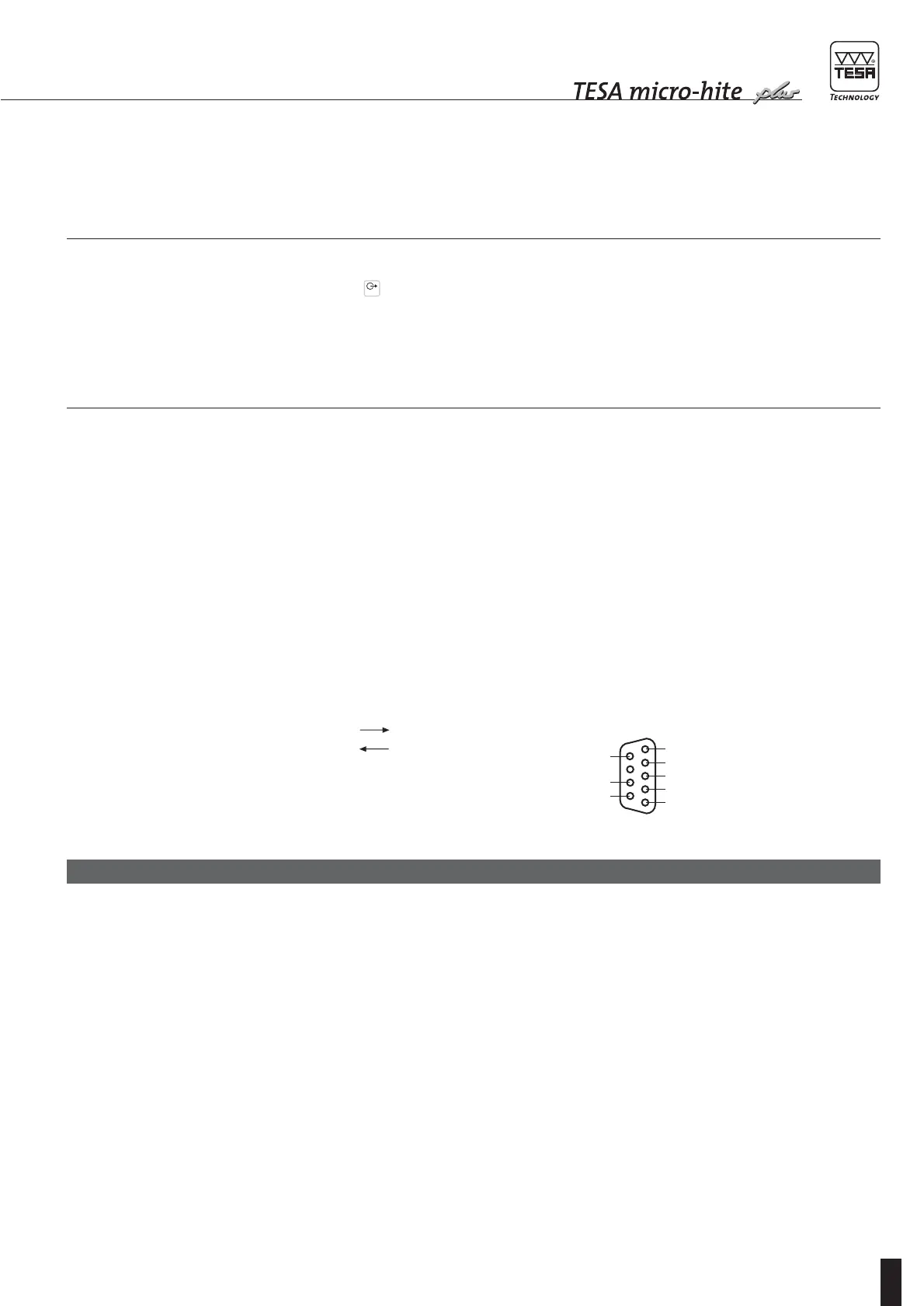

Pin layout on the 9-pin (female) connector:
Control panel PC
2 TXD (Data Out) 2 RXD
3 RXD (Data Req) 3 TXD
5 GND
Other pins are leaved unused.
We guarantee this product against any fault of
design, manufacture or material for a period of 12
months from the date of purchase. any repair work
carried out under the guarantee conditions is free of
charge. Our responsibility is limited to the repair of
the product or, if we consider it necessary, to its
free replacement.
The following are not covered by our guarantee:
batteries and damages due to incorrect handling,
failure to observe the instruction manual, or
attempts by any non-qualified party to repair the
product; any consequences whatever which may be
connected either directly or indirectly with the prod-
uct supplied or its use.
(Extract from our General Terms of Delivery,
December 1, 1981).
8 WARRANTY
