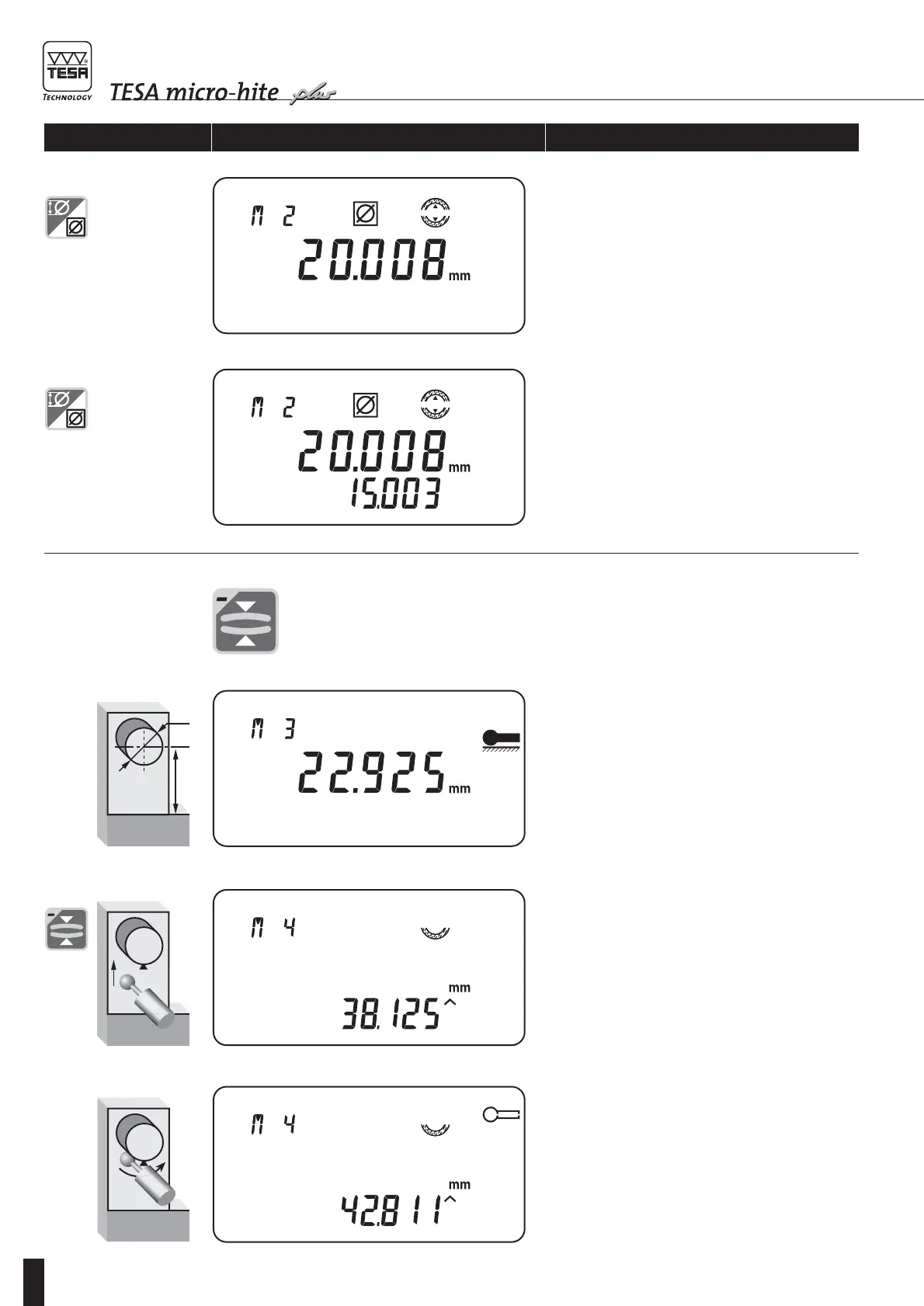

7 Main display shows the difference between both
probe contacts for a while. Numbered value is
incremented providing dip switch 6 is set on ON.
8 Main display shows the difference between both
probe contacts permanently. Displayed values will
not be retained in memory once the height gauge
has been switched off.
1 Position probe insert below the diameter to be
checked by pressing both relevant keys or rotating
the power control.
2
Starting probing operation
As probe insert is retracting, display shows its dis-
placement continuously. Probe symbol appears as
soon as the insert has stabilised after contacting
the workpiece feature. Move the workpiece (or the
vertical column) sideways for automatic detection
of the culmination point, which is signalled by a
beep sound while relevant probe symbol is being
highlighted. This point must be probed once
(default setting). But, you may also choose to travel
past the culmination point twice by pressing
ENTER. If the difference between both points is
exceeding 10 µm, a beep warns you to restart prob-
ing procedure. Selected option remains stored for
all subsequent measurements taken with detection
of the culmination point. To return to the default
option, press ENTER again or switch your height
gauge off.
3
Enabling keys/gauge Displaying Explanation
4.12
Measuring
shafts
