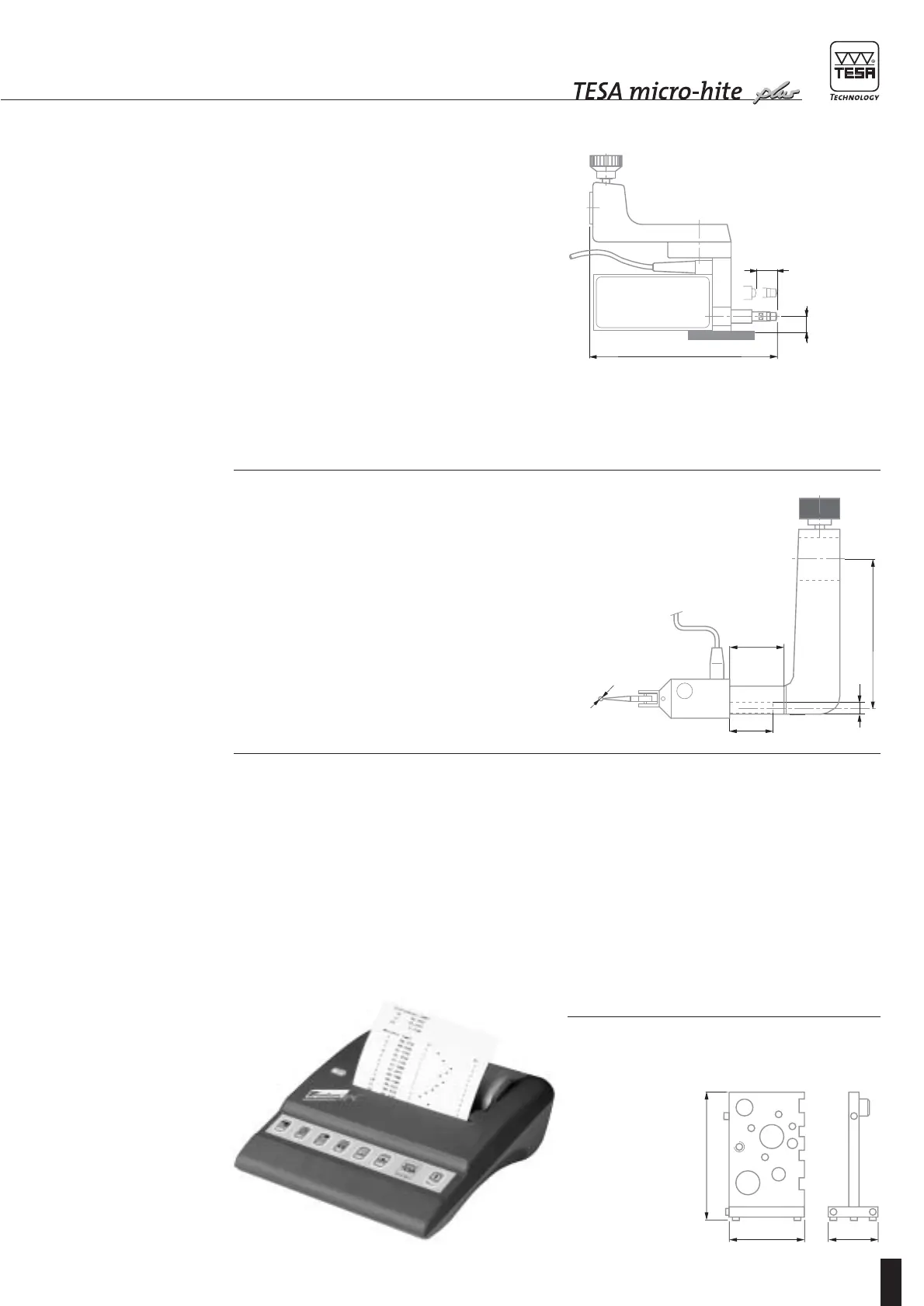

TESA Micro-Hite Plus M - Technical Data

49
TESA IG-13 probe set N
o
00760140
consisting of
1 TESA IG-13 digital probe, N
o
00760139
measuring span
13 mm/0.5 in
1 Probe attachment N
o
00760138
TESA IG-13
Additional accessories
Lift lever for measuring bolt N
o
01960005
Extension for probe insert,
10 mm long N
o
03540501
Connecting cable for N
o
04761047
IG-13 to control panel (1 m)
ACCESSORIES FOR USE WITH THE POWER PANEL PLUS M ONLY
M
TESA MEMOTAST- special N
o
S07020086
Auxiliary probe.
Technical data are valid when used
with TESA Micro-hite pLus M.
Measuring force 0,5 N
Max. perm. error (3 + 3 . L) µm
L en m
Repeatability limit ≤ 3 µm
10
116,3
13
ø6
73
20
25
ø2
241
148
100
TESA PRINTER SPC N
o
06430000
Provided with the following items:
1 Thermal paper roll
1 Mains adaptor, 100 to 240 Vac /
50 to 60 Hz, 6,6 Vdc / 750 mA N
o
04761054
1 Instruction manual with a declaration of
conformity according to EN 45014
00760124
PRACTICE WORKPIECE N
o
00760124
Accessories for TESA PRINTER SPC
Battery pack
6 V N
o
04768035
Trigger for data transfer (to TESA Printer SPC)
Hand switch N
o
04768000
Foot switch N
o
04768001
Connecting cable
RS232, opto-coupled with 9 pin/m/f trapezoidal
connector for TESA PRINTER SPC
(N
o
06430000) or a PC/AT computer,
2 m long. N
o
04761052
