TESA Micro-Hite Plus M - Power Panel Plus M Function Key Usage

M
16
4.3

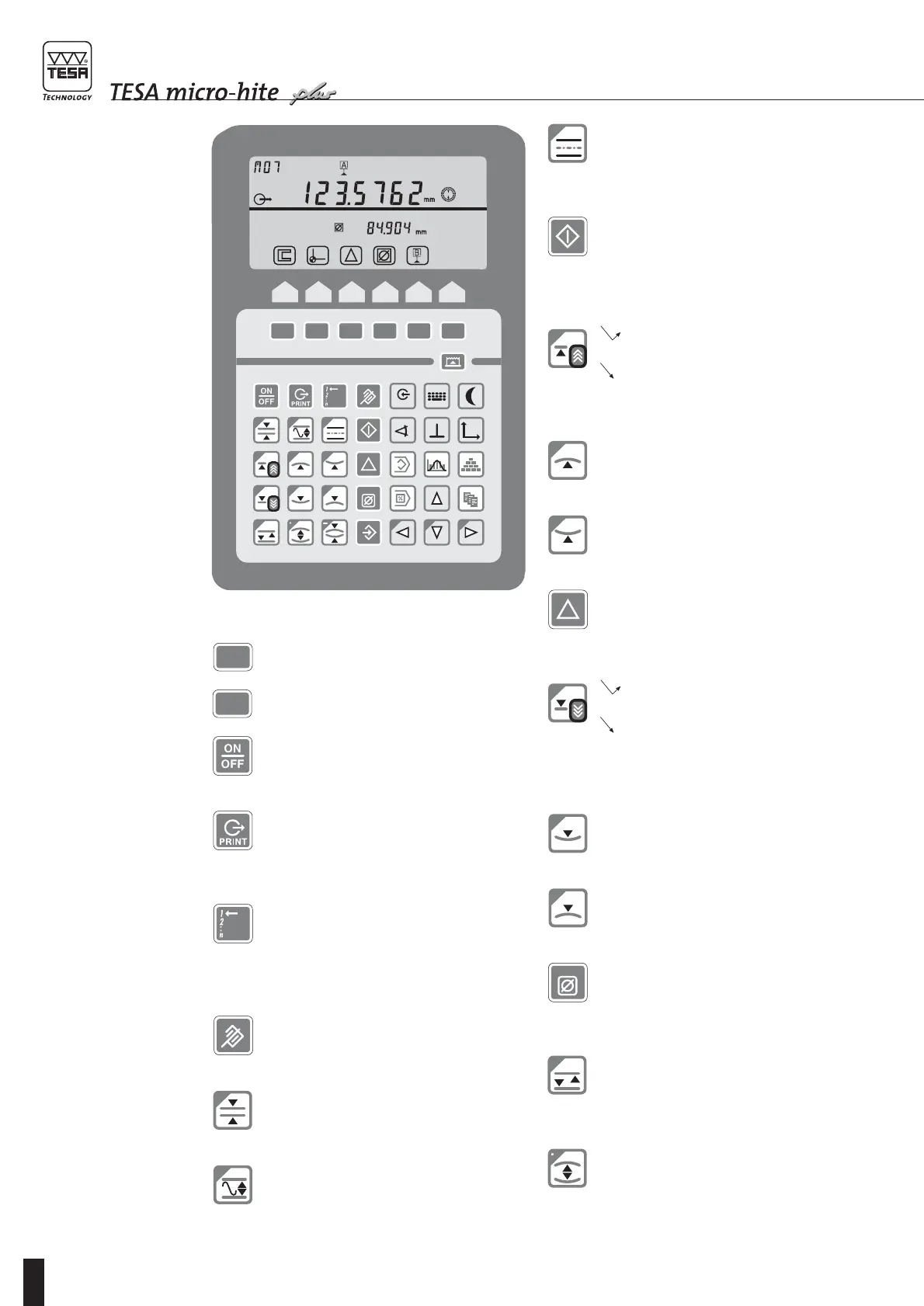

Power Panel Plus M
with function keys
(N° 00760220 or
00760221)
Function keys
Press to switch height gauge on or off.
Keep pressing this key (> 0.6 s) to get con-
firmation.
Press shortly (< 0.6 s) to transfer the value
from main display to a peripheral device.
Keep pressing this key (> 0.6 s) to transfer
full table contents to a peripheral.
Press to reset counter to zero and get
prompted for value storage or not. If head-
ing option has been selected, a new head-
ing can be entered each time this key is
pressed.
Press to cancel last function or probing
operation.
Press to measure the centre, then the
width of a rib.
Press to measure parallelism or run-out
errors.
8
G
7
F
B
A
F1
Press to enable mean value from the last
two probe contacts or from both num-
bered values selected in the logbook to be
calculated and further displayed.
Press to cancel both references A and B
and return to menu St1/2 to take a new ref-
erence A and/or B along with probe con-
stant if you wish to. This key also permits
to return to St1/2 from any menu.
Press shortly (< 0.6 s) to probe up.
Keep pressing this key (> 0.6 s) to
move probe up quickly (30 mm/s). Probe
will stop moving as soon as you release it.
Press to probe up with detection of the
highest culmination point.
Press to probe up with detection of the
lowest culmination point.
Press to enable the difference between the
last two probe contacts or numbered val-
ues selected in the logbook to be calcu-
lated and further displayed.
Press shortly (< 0.6 s) to probe down.
Keep pressing this key (> 0.6 s) to
move probe down quickly (30 mm/s).
Probe will stop moving as soon as you
release it.
Press to probe down with detection of the
lowest culmination point.
Press to probe down with detection of the
highest culmination point.
Press for temporary or continuous dis-
playing of a bore or shaft diameter or the
width of a groove or a rib (difference
between two probe contacts).
Press to measure both the centre and
width of a groove.
Press to measure both the centre and
diameter of a bore.
0
SP
*
W
3
V
2
U
1
T
+
P
6
O
5
N
4
M
I
÷
9
H
F1 F2 F3 F4 F5 F6
I
7
÷
+
*
(
=
)
89
456
123
0
BA
P
W
RS
2D
G
N
H
O
F
M
UVT
JKL
CD E
QRS
XYZ
SP
F6
à
