TESA Micro-Hite Plus M - Control Panel Options

44
6.2

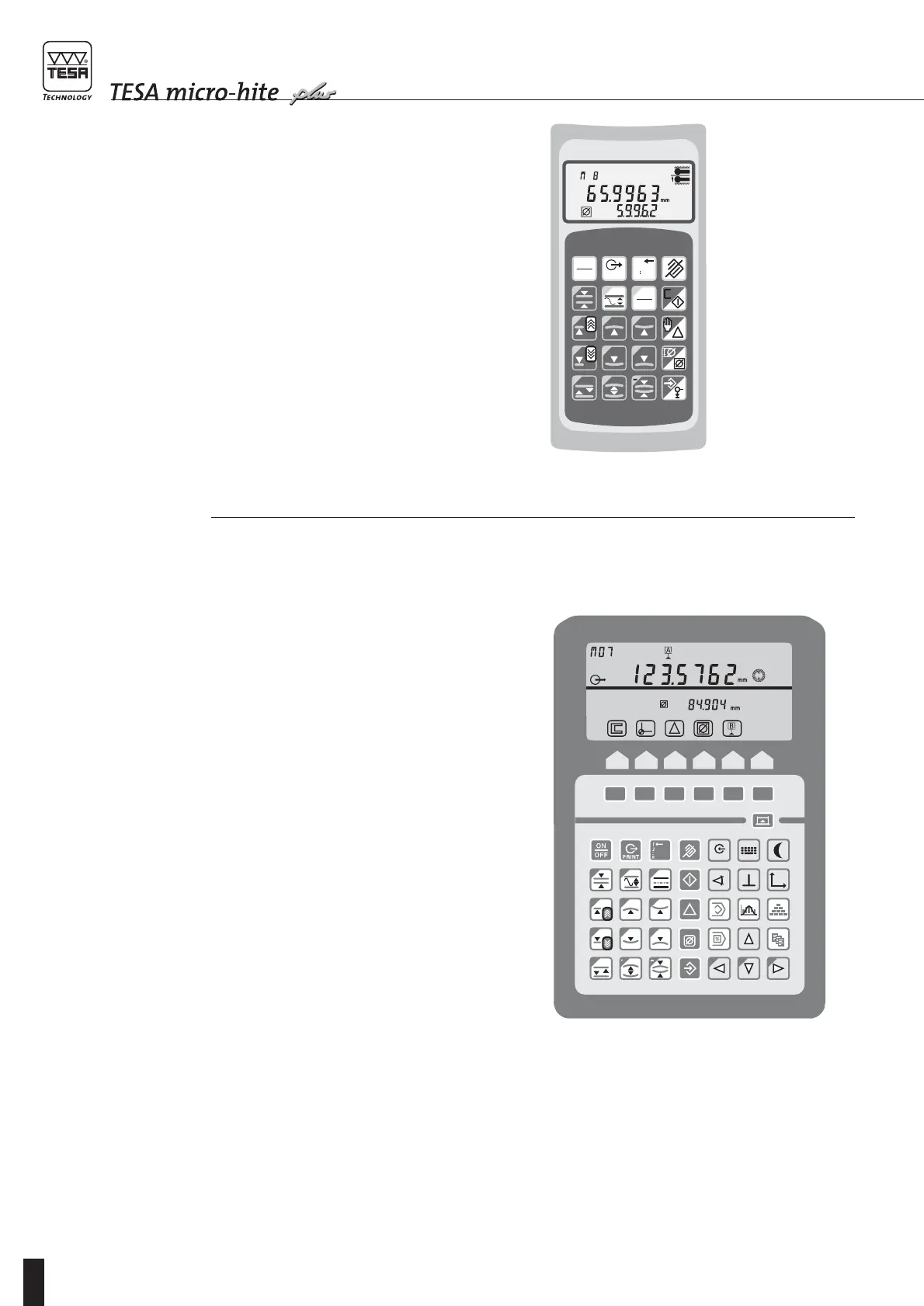

Control panels
1D control panel 00760216
Key features include:
– RS232 serial interface for bi-directional data
transmission.
– Input for the foot switch used for triggering
PRINT function or repeat last measurement
operation.
POWER PANEL PLUS M 00760220,
with built-in printer
POWER PANEL PLUS M 00760221,
without built-in printer
Key features include:
– RS232 serial interface for bi-directional data
transmission.
– Input for a measuring instrument with RS232
digital output.
– Input for a TESA IG-13 digital probe.
– Input for the foot switch used for triggering
PRINT function or repeat last measurement
operation.
– CENTRONICS output for A4 printer.
