Structural Maintenance 12-7
Access to Mounting Holes SLX, SLXe, SLXi
1. Access the top center and top left mounting holes is normally possible without removing the Unit Top Cover.
2. Access the top compressor side mounting hole under the Grill Panel
3. Swing open the entire control box to access the bottom control box side mounting holes.
4. The center mounting hole on the compressor side is accessible through the road-side access door.
5. The lower mounting hole on the compressor side is accessible through the front access door near the compressor.
6. Access the top mounting hole on the compressor side through the road-side access door.
Note: For all whisper and whisper pro unit models fitted with sound insulation blankets fitted: Service access is provided
through access points in the noise Insulation Foam.

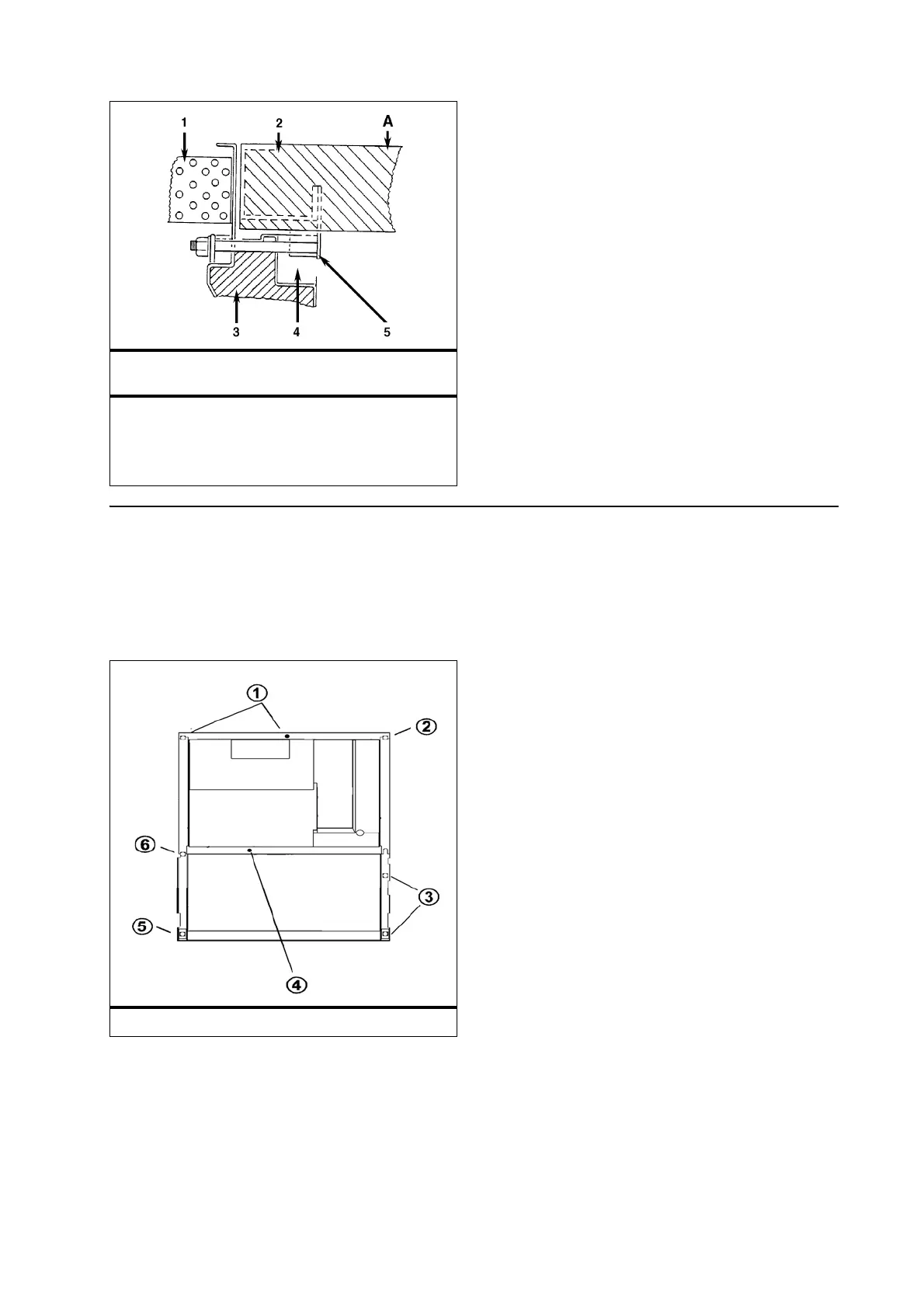

SL and SLe Optional Top Center Mounting Bolt
Installation
A. Side View
1. Unit Condenser Coil
2. Trailer Ceiling
3. Unit Foam
4. Evaporator Bolt Pocket
5. Trailer Installed Top Center Mounting Bolt
SLX/SLXe/SLXi Mounting Holes
To Next Page
