Unit Description 5-26
Engine Compartment Components
The following maintenance items can be checked visually.
: Compressor Oil Sight Glas
Use this sight glass to check the compressor oil level. See the Refrigeration Maintenance Chapter for the correct procedure.
Engine Oil Dipstick:
Use the engine oil dipstick to check the engine oil level.
Receiver Tank Sight Glass:
Use this sight glass to check the level of refrigerant in the receiver tank. See the Refrigeration Maintenance
Chapter for the correct procedure.
WARNING: The unit can start at any time
without warning. Press the Off key on the
HMI control panel and place the
microprocessor On/Off switch in the Off
position before inspecting any part of the
unit.
CAUTION: Make sure the engine is
turned off before attempting to check the
engine oil.

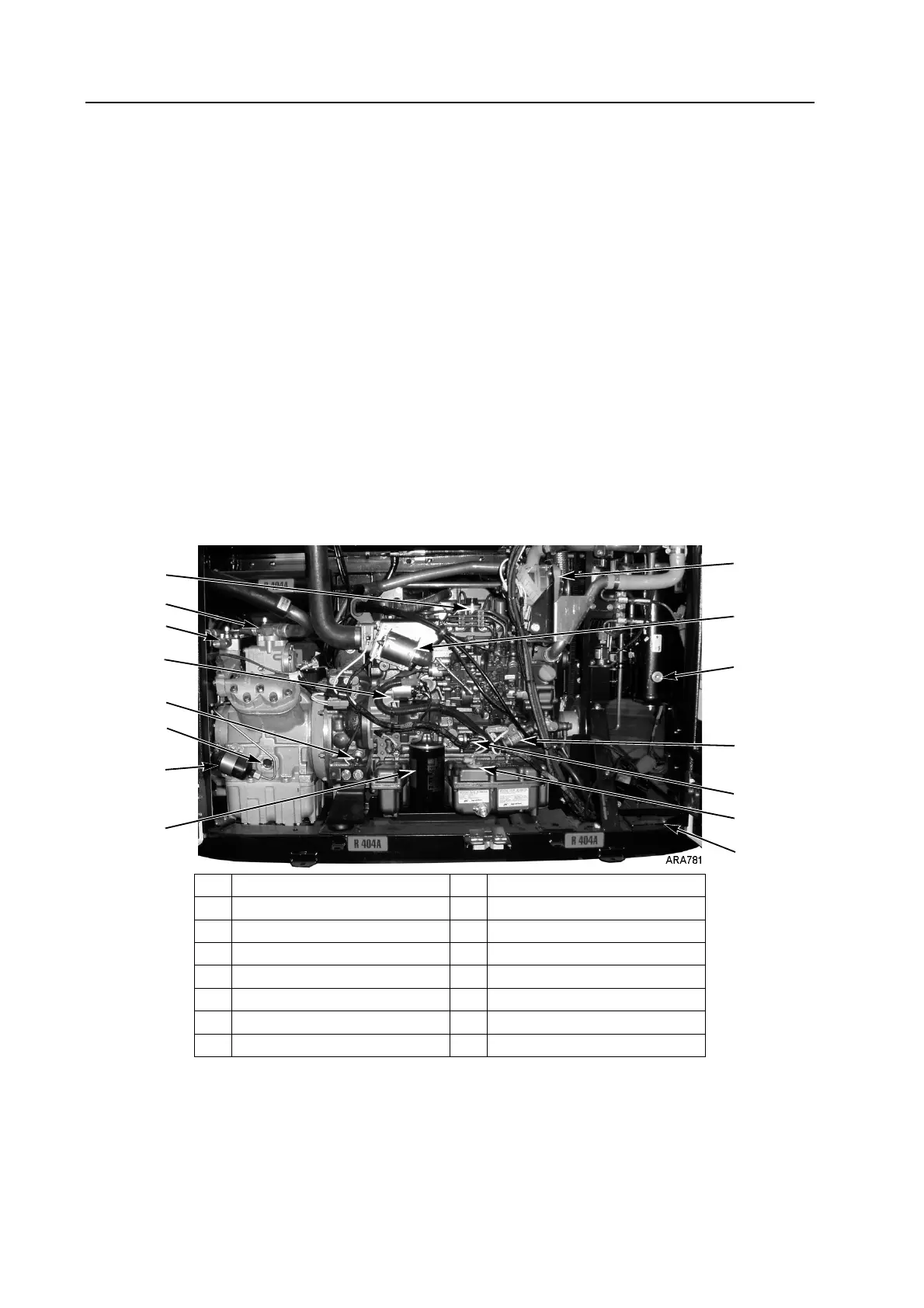

1. Air Filter Restriction Indicator 9. Alternator
2. Suction Service Valve 10. Throttle Solenoid
3. Discharge Service Valve 11. Receiver Tank Sight Glass
4. Engine Starter Motor 12. Hand Primer Pump
5. Engine RPM Sensor 13. Low Engine Oil Pressure Switch
6. Compressor Sight Glass 14. Engine Oil Dipstick
7. Compressor Oil Filter 15. Battery Tray
8. Engine Oil Filter
Engine Compartment Components
