Standard Display Variations
The Standard Display has variations. A display showing any of the following variations is still considered a Standard Display.
The top of the display will show that the unit is operating in either CYCLE-SENTRY or Continuous Mode. The temperature can
be displayed in degrees Fahrenheit (F) or degrees Celsius (C).
Alarm Display
If a unit alarm condition occurs the large Alarm Icon will appear on the Standard Display as shown below.
If an alarm specific to a zone occurs, then a small zone alarm icon will appear next to the affected zone as well. Both Alarm
Icons will be present. Below in Figure the small zone Alarm Icon indicates that an alarm exists specific to Zone 2.

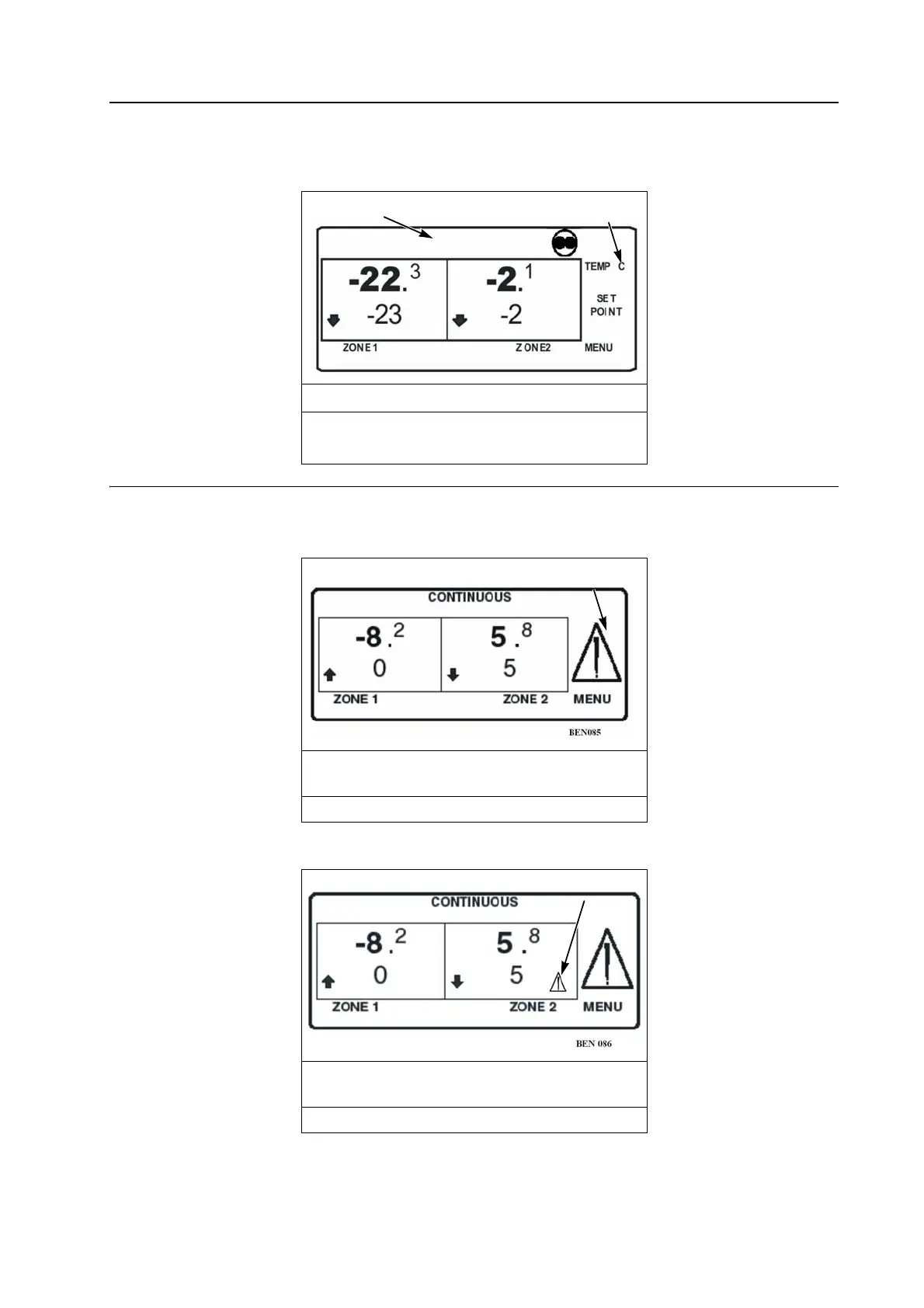

Standard Display Variations
1. CYCLE-SENTRY or Continuous (SR-3 shown -
new cycle sentry icon)
2. Degrees Celsius or Fahrenheit
Alarm Display (SR-2 shown - old continuous/
cycle sentry display)
1. Alarm Icon
Zone Alarm Display (SR-2 shown - old
continuous/cycle sentry display)
1. Zone Alarm Icon
