Structural Maintenance 12-6
SL and SLe Top Center Nut
To reach the top center nut when installing unit:
1. Open the control box side condenser grille door.
2. Remove the coil blower access panel. This is the diagonal panel just above the blower inlet area.
3. Install the mounting bolt washer and nut. Tighten using wrench socket and swivel attachment.
4. Replace the access panel. The unit will not operate properly with the panel removed.
NOTE to trailer manufacturer: Not all trailer configurations will permit adding the top center unit mounting bracket assembly
9154C10G01. The top center mounting bolt can be permanently mounted to the trailer structure as part of the trailer. Trailer
structure to support mounting bolt must fit within the limits of the evaporator assembly bolt pocket to avoid interference with
the unit during installation.

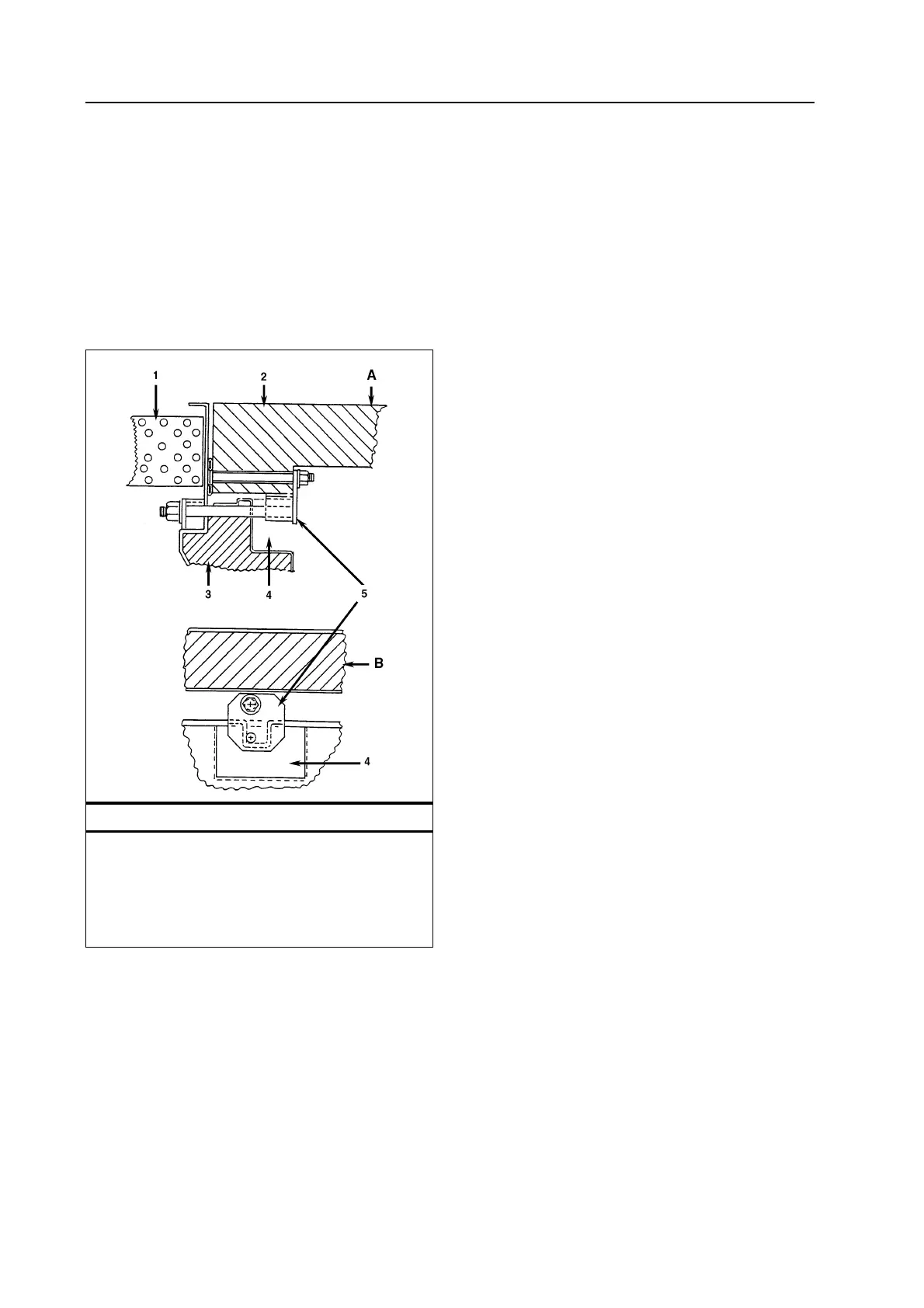

SL and SLe Top Center Mounting Bolt Installation
A. Side View
B. Front View
1. Unit Condenser Coil
2. Trailer Ceiling
3. Unit Foam
4. Evaporator Bolt Pocket
5. Mounting bolt assembly supplied with unit installation kit
