Structural Maintenance 12-41
SLXi, SLXe, SLX Fan Shaft Assembly
These models have a fanshaft with 2 main components - the Fanshaft and the Fanshaft housing.The fanshaft Assembly is
supported in the housing by compressor and control box side Bearing Assemblies.
Disassembly
1. Remove snap Ring (compressor side)
2. Then Press out Shaft from Compressor side.
3. Remove Control Box Side Snap Ring.
4. All components will now separate apart and will be accessible for service.
Assembly
1. Install the bearing on the shaft
2. Install the flat washers (x2) to Fanshaft
3. Install wave washer onto bearing ontop of the flatwasher
4. Add the second bearing onto wavewasher and flatwasher (i.e. the washers are in between the two bearings).
5. Place the narrow end on the Fanshaft housing over the two bearings.
6. Add the ring snap and place into slot provided (on the bearing).
7. Insert the second wavewwasher on the other end of the Fanshaft housing.
8. Install Bearing and then ring snap now over this wavewasher.

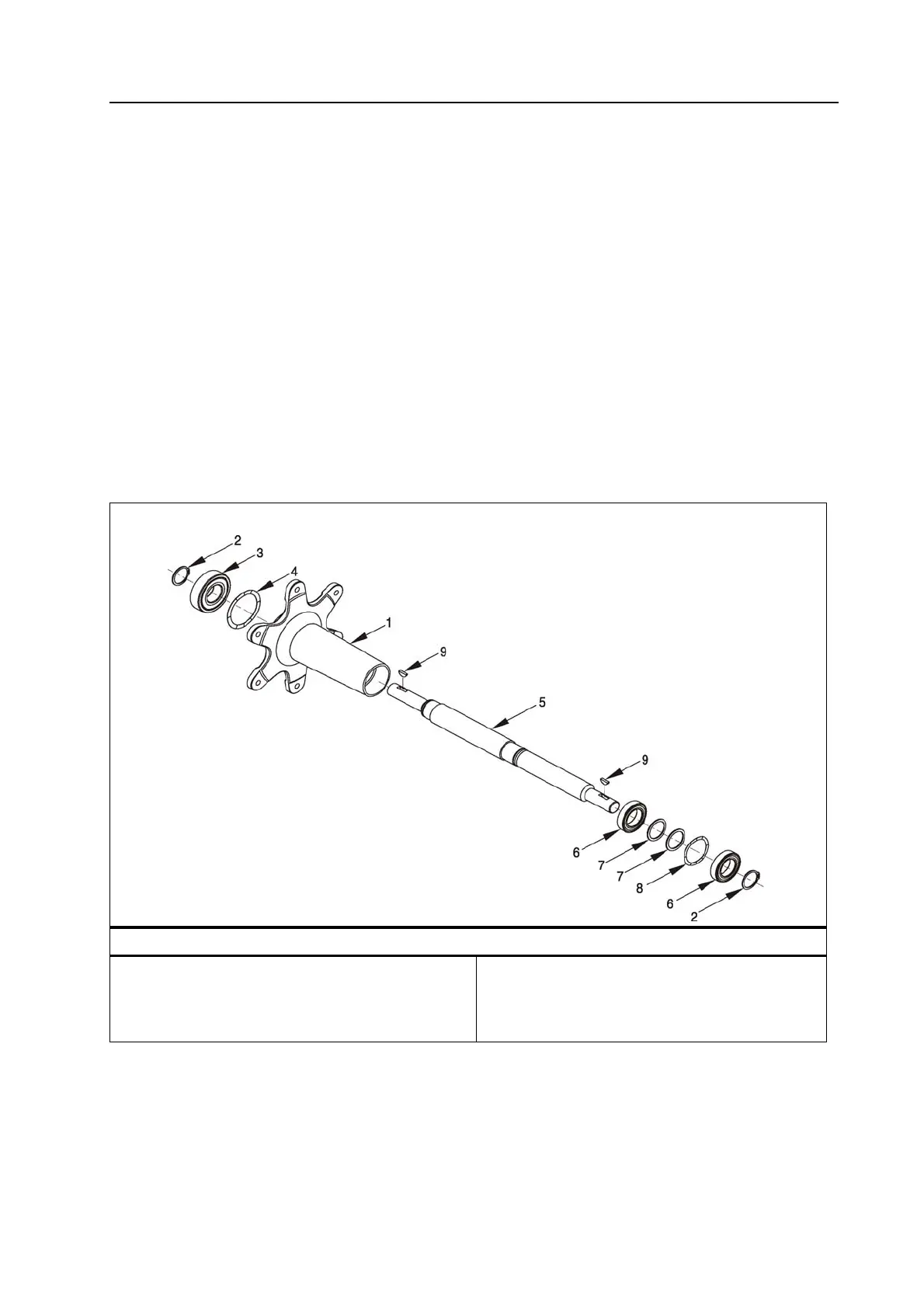

Fan Shaft Assembly – SLXi, SLXe, SLX
1. Housing Fanshaft
2. Ring-Snap
3. Bearing
4. Wave Washer
5. Fan Shaft
6. Bearing
7. Washer
8. Wave Washer
9. Key
