Thermo King SPECTRUM SL User Manual

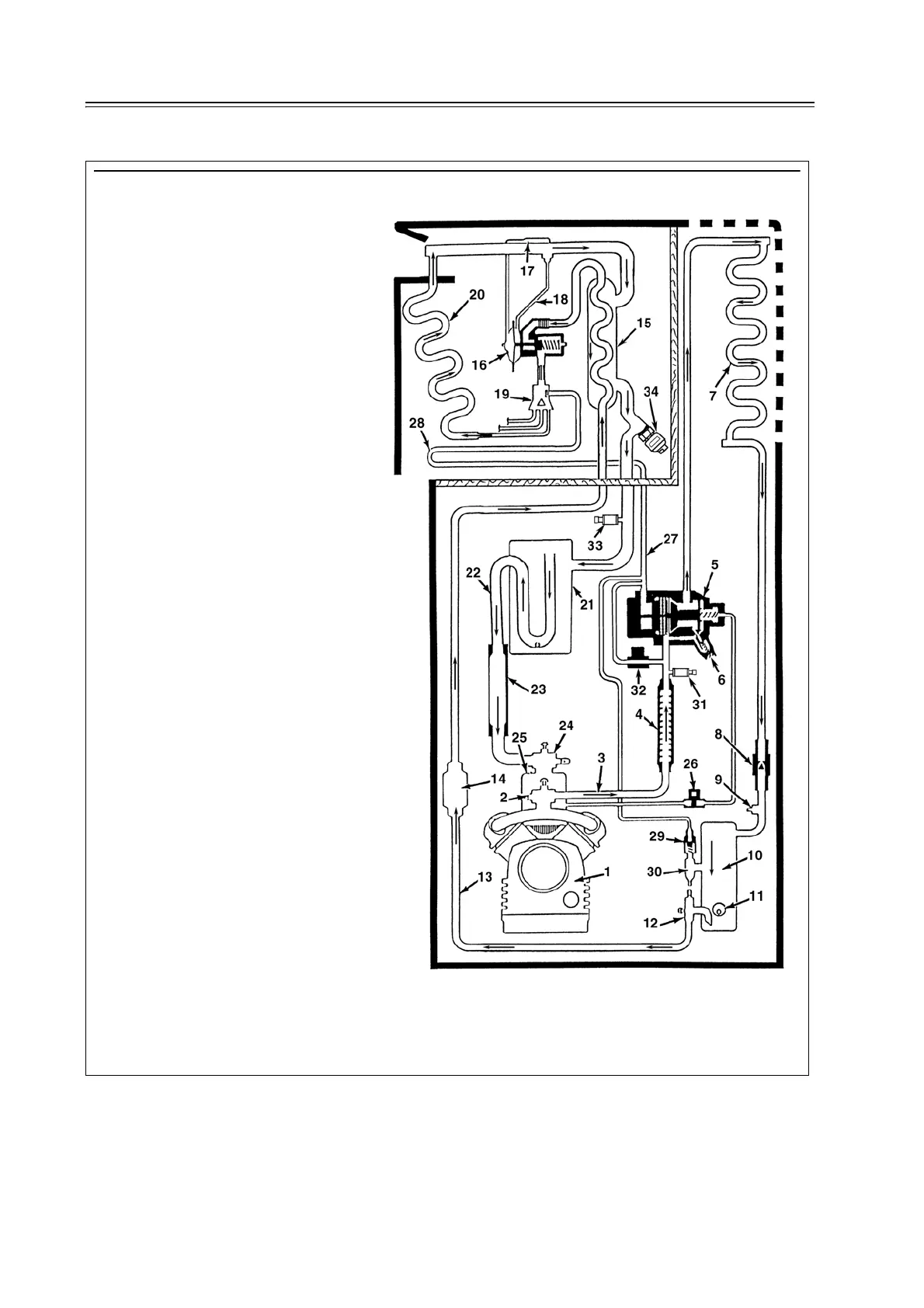

Single Temperature Refrigeration System Diagrams 15-6
SL-400 and SL-400e
Cooling Cycle with Modulation
1. Compressor
2. Discharge Service Valve
3. Discharge Line
4. Discharge Vibrasorber
5. Three-way Valve
6. Three-way Valve Bypass Check Valve
7. Condenser Coil
8. Condenser Check Valve
9. High Pressure Relief Valve
10. Receiver Tank
11. Sight Glass
12. Receiver Outlet Valve
13. Liquid Line
14. Drier
15. Heat Exchanger
16. Expansion Valve
17. Feeler Bulb
18. Equaliser Line
19. Distributor
20. Evaporator Coil
21. Accumulator
22. Suction Line
23. Suction Vibrasorber
24. Suction Service Valve
25. Suction Valve Adapter
26. Pilot Solenoid
27. Hot Gas Line
28. Defrost Pan Heater
29. Bypass Check Valve
30. Bypass Service Valve
31. Discharge Transducer
32. Hot Gas Bypass Valve
33. Suction Transducer
34. Electronic Throttling Valve (ETV)
