Single Temperature Refrigeration System Diagrams 15-2
SL/SLe 100, 200 AND SLX, SLXe, SLXi 100, 200 WITHOUT MODULATION

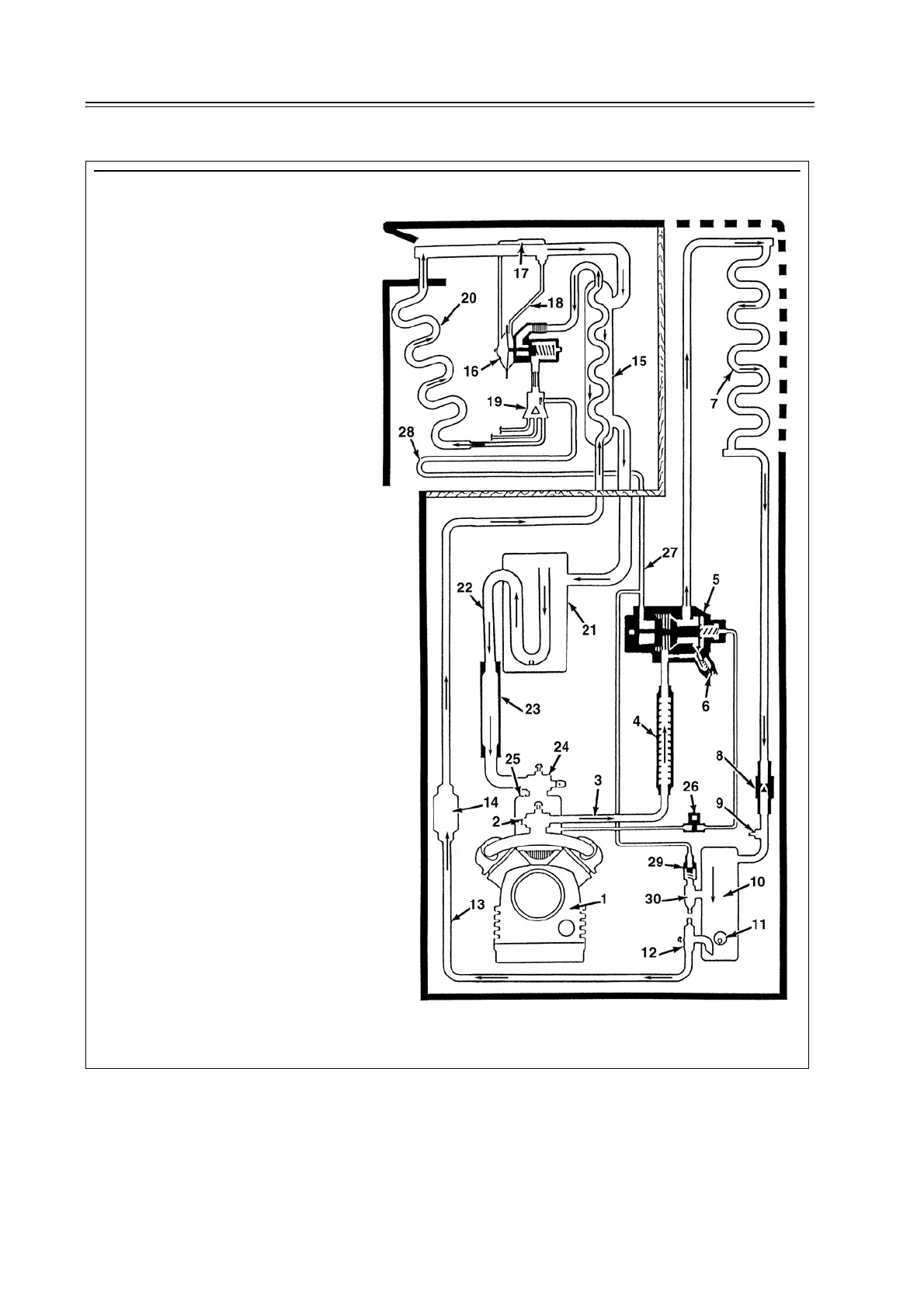

Cooling Cycle
1. Compressor
2. Discharge Service Valve
3. Discharge Line
4. Discharge Vibrasorber
5. Three-way Valve
6. Three-way Valve Bypass Check Valve
7. Condenser Coil
8. Condenser Check Valve
9. High Pressure Relief Valve
10. Receiver Tank
11. Sight Glass
12. Receiver Outlet Valve
13. Liquid Line
14. Drier
15. Heat Exchanger
16. Expansion Valve
17. Feeler Bulb
18. Equaliser Line
19. Distributor
20. Evaporator Coil
21. Accumulator
22. Suction Line
23. Suction Vibrasorber
24. Suction Service Valve
25. Throttling Valve
26. Pilot Solenoid
27. Hot Gas Line
28. Defrost Pan Heater
29. Bypass Check Valve
30. Bypass Service Valve
