MEC 320 GENSET CONTROLLER
PM079 Rev 0 07/06/08 18 Thomson Technology

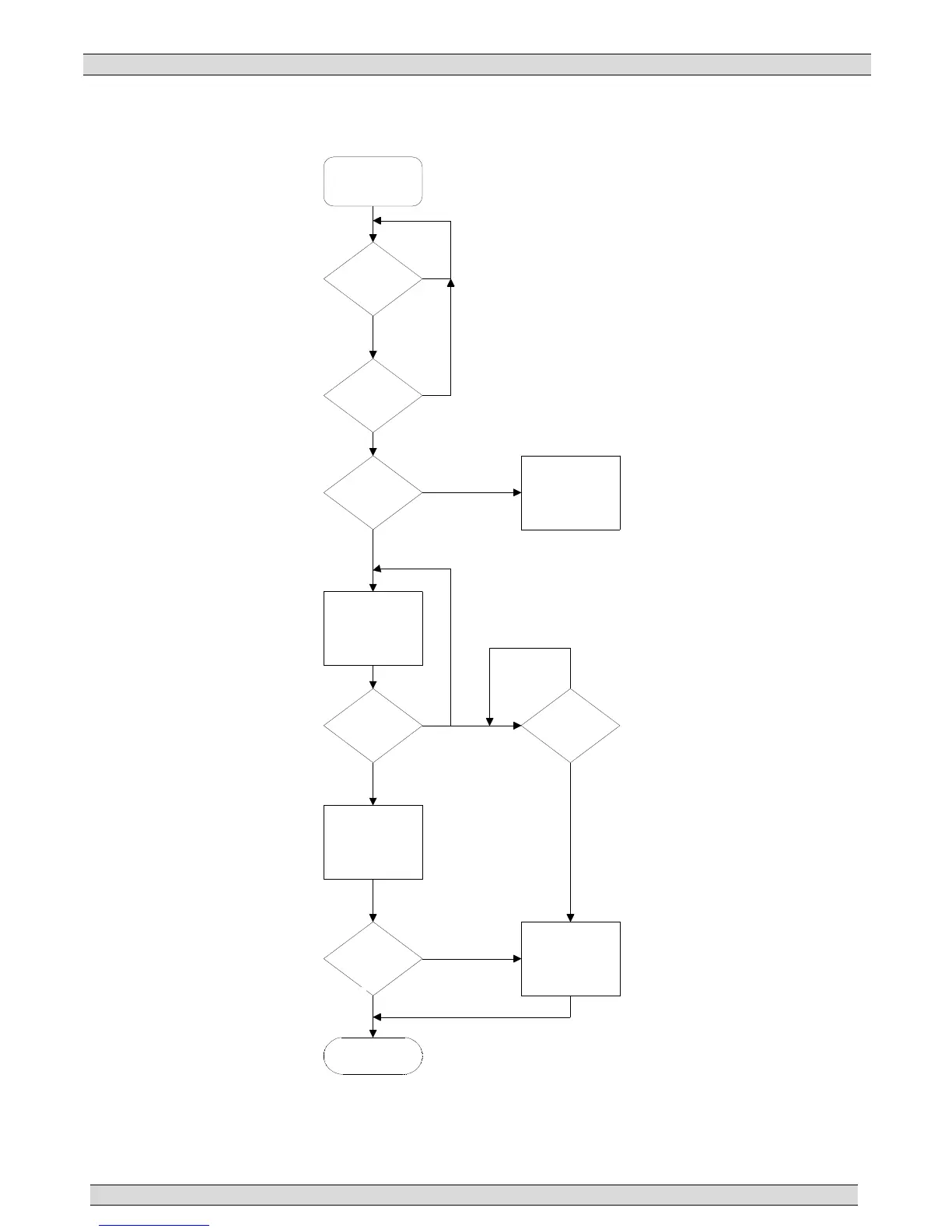

GB open sequence
Start
stop conditions
OK
is GB closed
Yes
No
No
Soft open
Yes
failclass
shutdown
No
deload DG
Yes
load< open set
point
No
open GB
Yes
GB opened Alarm
No
end
Yes
ramp down
timer expired
Yes
No
