Sequences
The following contains information about the sequences of the engine, the generator breaker
and, the mains breaker. These sequences are automatically initiated if the auto mode is
selected, or if the commands are selected in the semi-auto mode.
In the semi-auto mode the selected sequence is the only sequence initiated (e.g. press the
START push-button: The engine will start, but no subsequent synchronizing is initiated).
The following sequences will be illustrated below:
•
START sequence
•
STOP sequence
•
Breaker sequences
START sequence

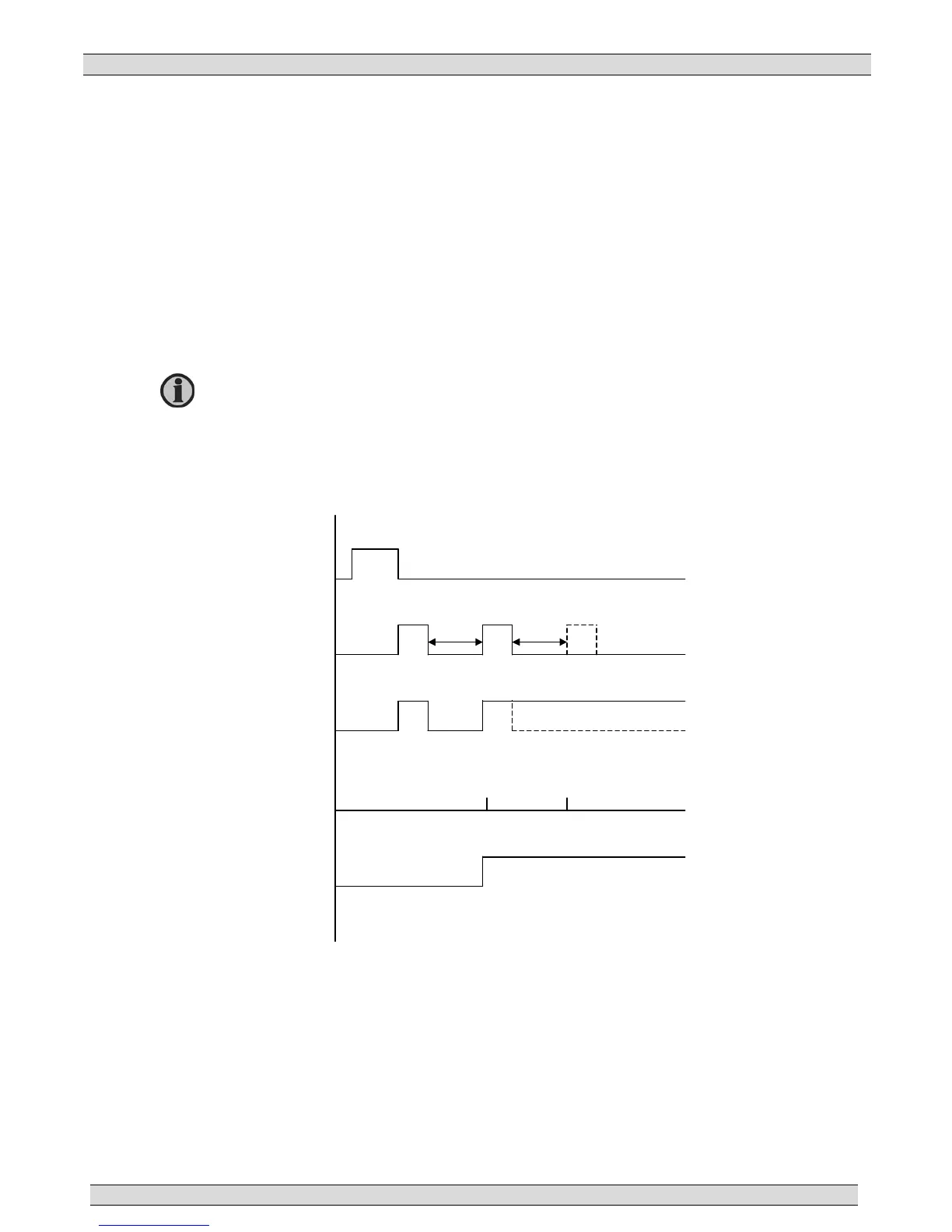

The drawings illustrate the start sequences of the gen-set.
Start sequence:
Run coil
Start prepare
Crank
Running feedback
Run coil
Start attempts
1
2
t
OFF
t
OFF
Refer to our ‘Application Notes’ for in
formation about the required breaker
wiring.
