3.2 Technical Data
PM100 / page 11
3.2.4 S130A / S132B Slim Sensor (PM130 / PM132)

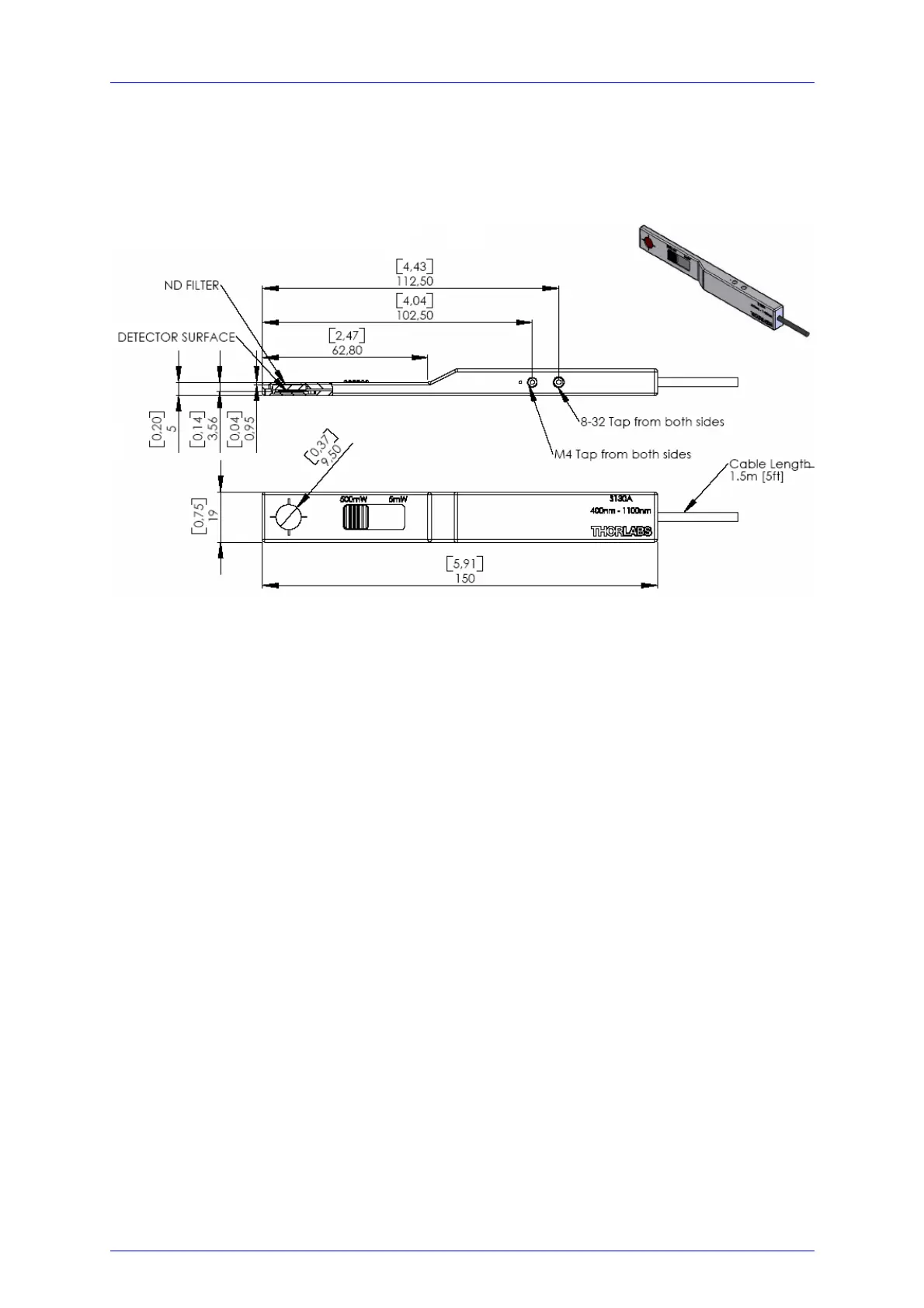

Mechanical Drawing:
Specifications: S130A S132A
Spectral range: 400 – 1100nm | 700 – 1800nm
Sensor: Silicon | Germanium
Sensor size: 10mm x 10mm sq. (0.39” x 0.39”)
Input aperture: ∅ 9.5mm (0.374”)
Distance to ND filter: 3.3mm (0.12”)
Distance to detector: 5.8mm (0.23”)
Optical power range (@980nm): 5nW – 5mW
5µW – 500mW | (50mW @1550nm)
Resolution: 100pW
Optical Damage Threshold: 50W/cm²
Measurement Standard: NIST traceable
Measurement uncertainty: +/- 5%
Operating temperature: 5°C to 40°C
Weight: 0.125kg (0.155lbs)
Notes:
The sensor contains two sets of calibration data for both slider positions. The console
automatically uses the right calibration data a few seconds after the slider has been
moved. Please care that the slider is always in a “snapped” position.
