THORLABS PM100 User Manual

3.2 Technical Data
PM100 / page 15
3.2.8 S213A 30W Thermal Sensor (PM213)

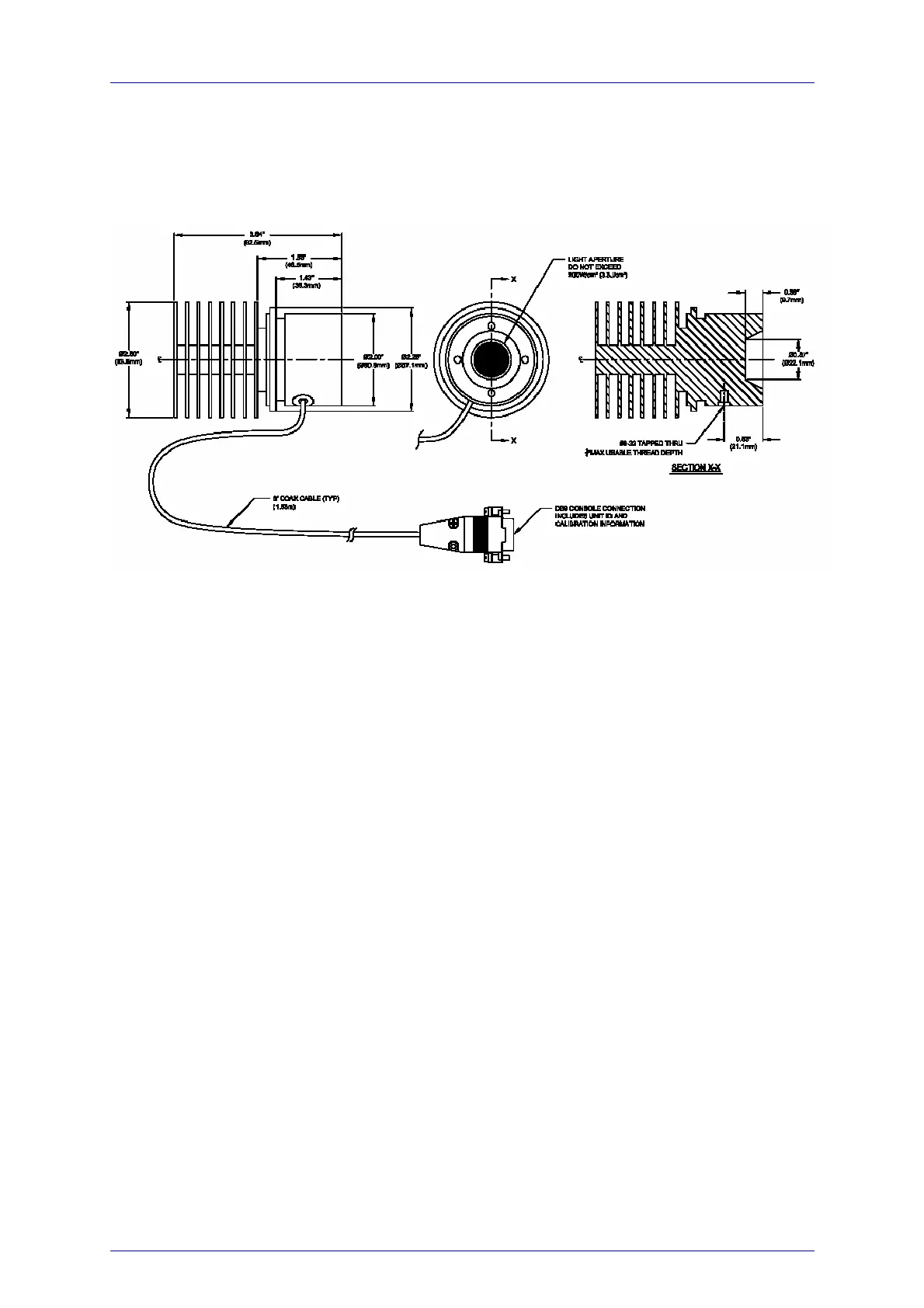

Mechanical Drawing:
Specifications:
Spectra range: 250nm – 10.6µm
Sensor: Thermal
Input aperture: ∅ 15.8mm (5/8”)
Distance to detector: 9.7mm (0.38”)
Aperture thread: none
Optical power range: 100mW – 30W
Resolution: 3mW
Measurement Standard: NIST traceable
Measurement uncertainty: +/- 5%
Optical damage threshold: 200W/cm² CW
3.3J/cm² (1ms pulse @ 1064nm)
50mJ/cm² (20ns pulse @ 1064nm)
Size: 92.5mm x ∅63.5mm (3.64” x ∅2.5”)
Weight: 0.51kg (1.13lbs)
