3.2 Technical Data
PM100 / page 13
3.2.6 S210A 3W Thermal Sensor (PM210)

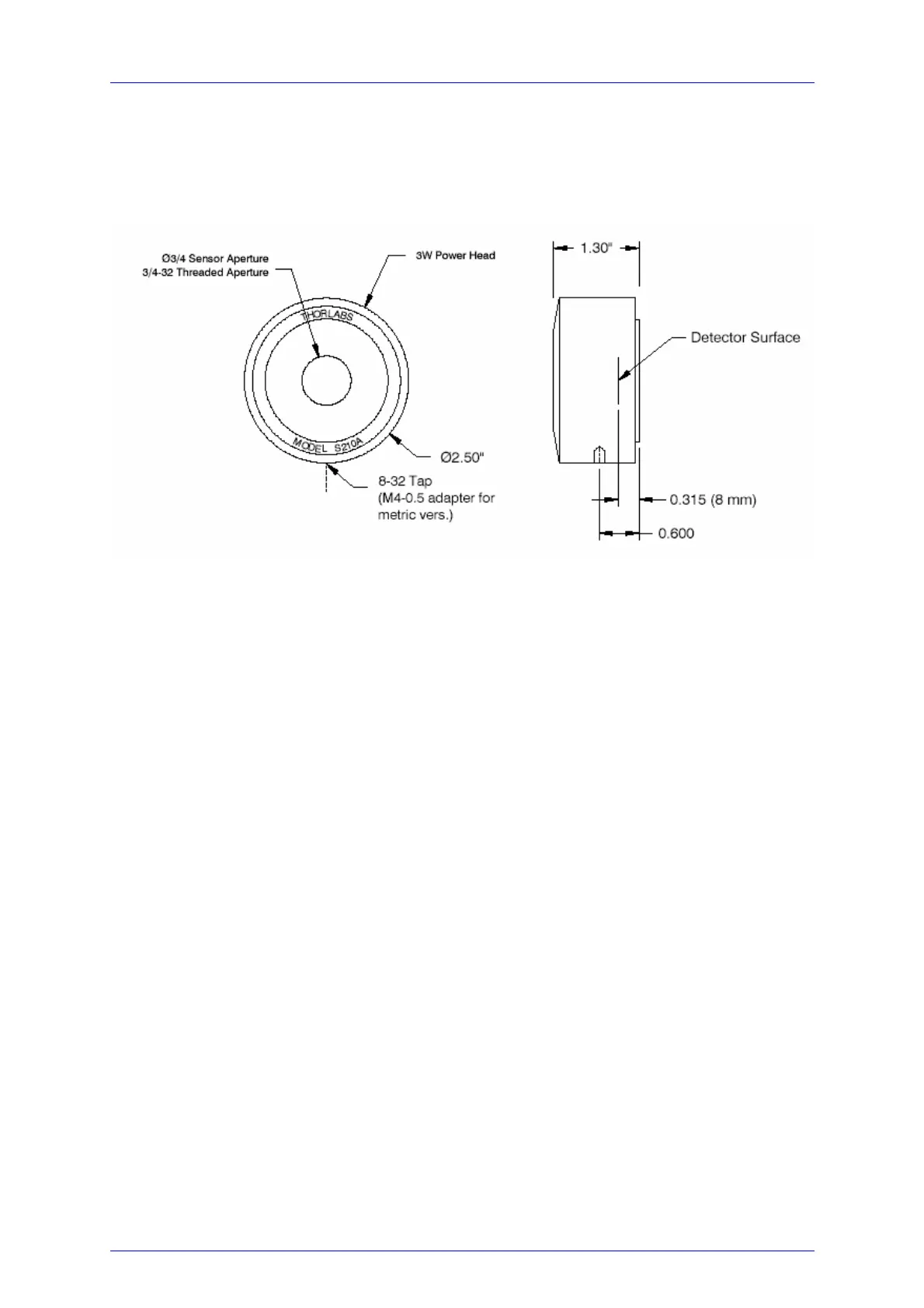

Mechanical Drawing:
Specifications:
Spectra range: 250nm – 10.6µm
Sensor: Thermal Absorber
Input aperture: 19mm (3/4”)
Distance to detector: 8.0mm (0.315”)
Aperture thread: 3/4”-32
Optical power range: 20mW – 3W
Resolution: 1mW
Measurement Standard: NIST traceable
Measurement uncertainty: +/- 5%
Optical damage threshold: 200W/cm² CW
3.3J/cm² (1ms pulse @ 1064nm)
50mJ/cm² (20ns pulse @ 1064nm)
Size: 33.0mm x 63.5mm (1.3” x 2.5”)
Weight: 0.51kg (1.13lbs)
