3.2 Technical Data
PM100 / page 14
3.2.7 S212A 10W Thermal Sensor (PM212)

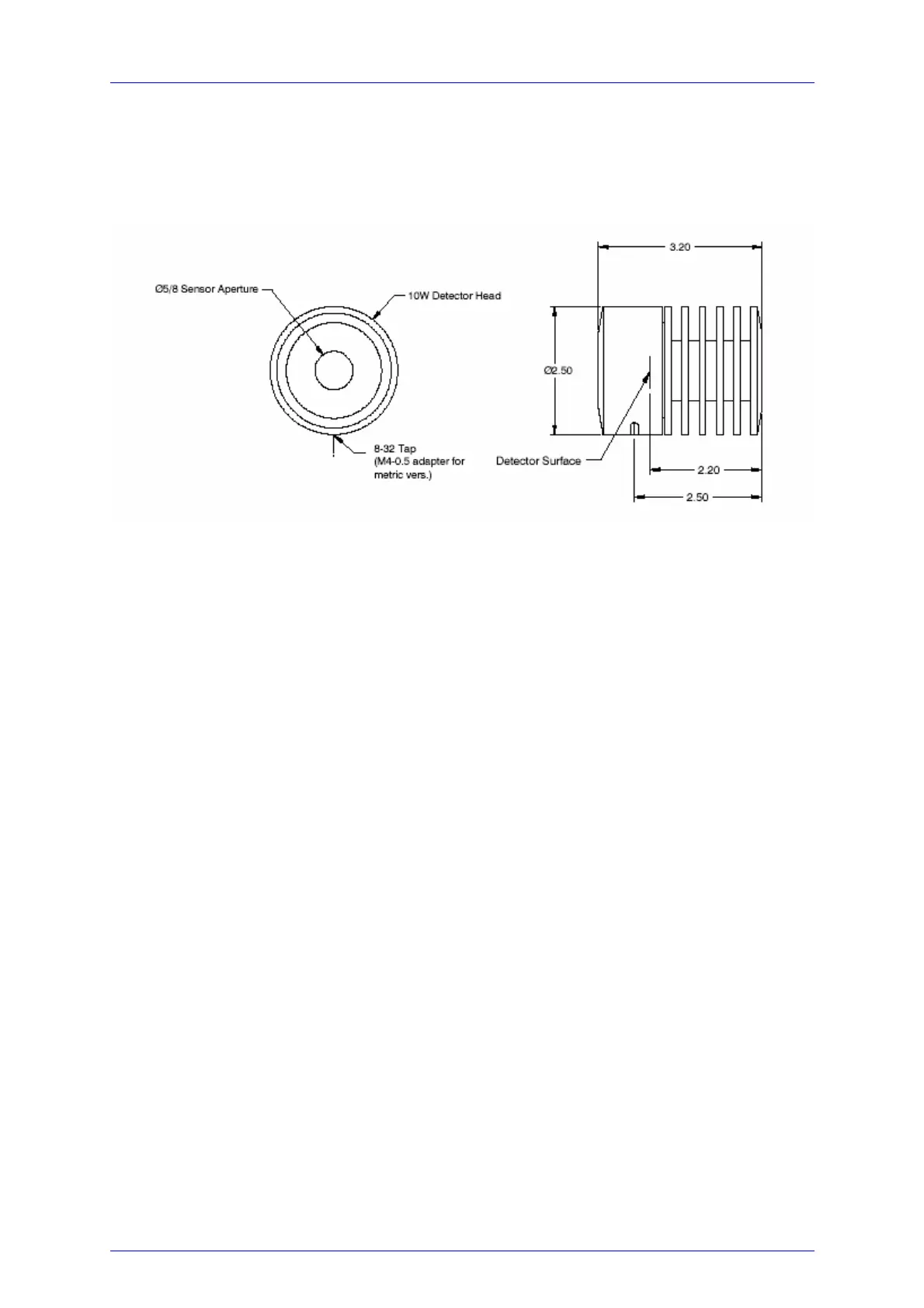

Mechanical Drawing:
Specifications:
Spectra range: 250nm – 10.6µm
Sensor: Thermal
Input aperture: ∅ 12.7mm (1/2”)
Distance to detector: 55.9mm (2.20”)
Aperture thread: none
Optical power range: 20mW – 10W
Resolution: 1mW
Measurement Standard: NIST traceable
Measurement uncertainty: +/- 5%
Optical damage threshold: 200W/cm² CW
3.3J/cm² (1ms pulse @ 1064nm)
50mJ/cm² (20ns pulse @ 1064nm)
Size: 81.3mm x ∅63.5mm (3.2” x ∅2.5”)
Weight: 0.51kg (1.13lbs)
