TiSUN MULTIPLEX User Manual

102

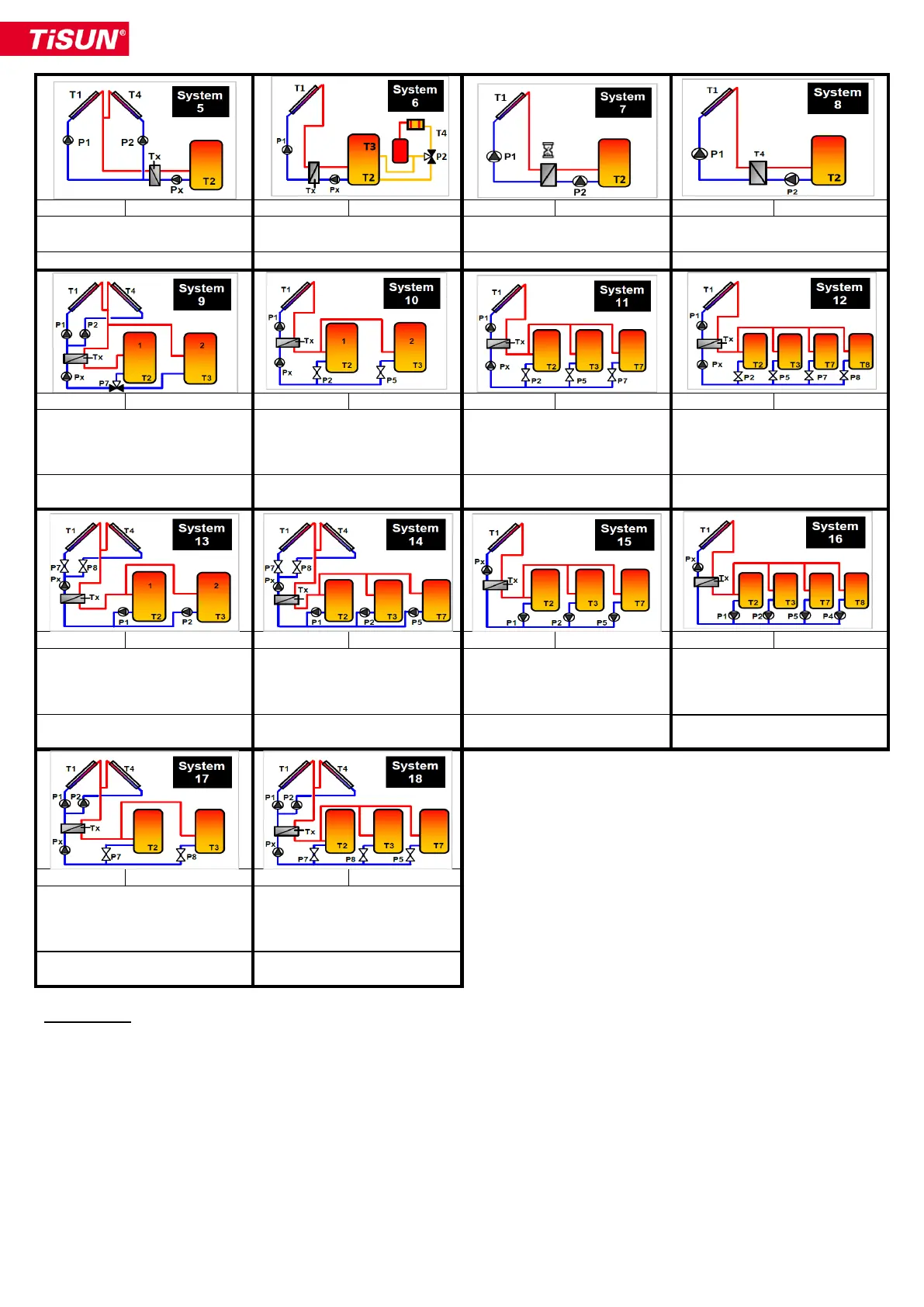

Systeem 5
Mutiplex
Systeem 6
Mutiplex
Systeem 7
Duplex
Systeem 8
Duplex
P1= Dt(T1, T2)
P2= Dt(T4, T2)
P1= Dt(T1, T2) P2= Dt(T3, T4)
P1= Dt(T1, T2)
P2 = Vertraging P1
P1= Dt(T1, T2)
P2= Dt(T4, T2)
1 x PHE = PX = Dt(Tx, T2)
1 x PHE = PX = Dt(Tx, T2)
Geen PHE
Geen PHE
Systeem 9
Multiplex
Systeem 10
Multiplex
Systeem 11
Multiplex
Systeem 12
Multiplex
P1= Dt(T1, T2 of T3)
P2= Dt(T4, T2 of T3)
P7= Dt(T1 of T4, T3)
P1= Dt(T1, T2 of T3)
P2= Dt(T1, T2)
P5= Dt(T1, T3)
P1= Dt(T1, T2 of T3 of T7) P2=
Dt(T1, T2)
P5= Dt(T1, T3)
P7= Dt(T1, T7)
P1= Dt(T1, T2 of T3 of T7 of T8)
P2= Dt(T1, T2)
P5= Dt(T1, T3) P7= Dt(T1, T7)
P8= Dt(T1, T8)
1 x PHE=PX= Dt (Tx, T2 of T3)
1 x PHE = PX = Dt (Tx, T2 of
T3)
1 x PHE = PX = Dt (Tx, T2 of
T3 of T7)
1 x PHE = PX = Dt (Tx, T2 of T3
of T7 of T8)
Systeem 13
Multiplex
Systeem 14
Multiplex
Systeem 15
Multiplex
Systeem 16
Multiplex
P1= Dt(Tx, T2)
P2= Dt(Tx, T3)
P1= Dt(Tx, T2) P2= Dt(Tx, T3)
P5= Dt(Tx, T7)
P1= Dt(Tx, T2)
P2= Dt(Tx, T3)
P5= Dt(Tx, T7)
P1= Dt(Tx, T2) P2= Dt(Tx, T3)
P5= Dt(Tx, T7) P4= Dt(Tx, T8)
P7= Dt(T1, T2 of T3)
P8= Dt(T4, T2 of T3)
P7= Dt (T1, T2 of T3 of T7)
P8= Dt(T4, T2 of T3 of T7)
1 x PHE = PX = Dt (T1 of T4, T2
of T3)
1 x PHE = PX = Dt (T1 of T4,
T2 of T3 of T7)
1 x PHE = PX = Dt (T1, T2 of
T3 of T7)
1 x PHE = PX = Dt (T1, T2 of T3
of T7 of T8)
Systeem 17
Multiplex
Systeem 18
Multiplex
P1= Dt(T1, T2 of T3) P2= Dt(T4,
T2 of T3)
P7= Dt(T1 of T4, T2) P8=
Dt(T1 of T4, T3)
P7= Dt(T1 of T4, T2) P8= Dt(T1
of T4, T3)
P5= Dt(T1 of T4, T7) P1=T1
P2=T4
1 x PHE=P=Dt(Tx, T2 of T3)
1 x PHE=PX=Dt (Tx, T2 of T3
of T7)
Opmerking:
'Extra antistagnatiefunctie alleen beschikbaar bij DUPLEX. Speciaal gebruik van de PHE-functie voor antistagnatie
mogelijk, maar dit is afhankelijk van het individuele project!'
