TiSUN MULTIPLEX User Manual

14

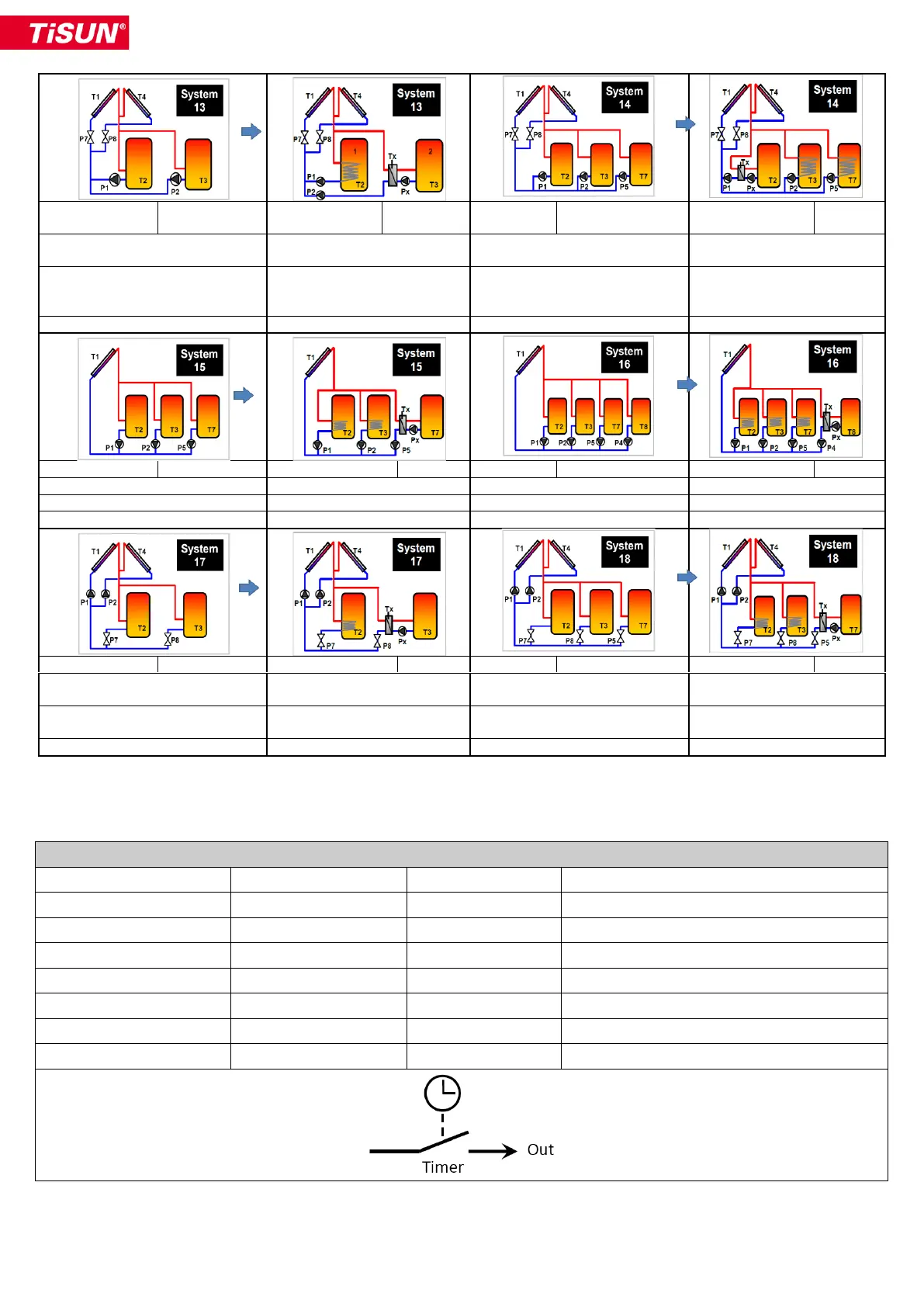

System 13
Multiplex
System13(1PHE
)
Multiplex
System 14
Multiplex
System14 (1PHE)
Multiplex
P1= Dt(T1orT4,T2)
P2= Dt(T1orT4,T3)
P1= Dt(T1orT4,T2)
P2= Dt(T1orT4,T3)
P1= Dt(T1orT4,T2)
P2= Dt(T1orT4,T3)
P1= Dt(T1orT4,T2)
P2= Dt(T1orT4,T3)
P7= Dt(T1,T2orT3)
P8= Dt(T4,T2orT3)
P7= Dt(T1,T2orT3)
P8= Dt(T4,T2orT3)
P5= Dt(T1orT4,T7)
P7= Dt (T1,T2orT3orT7)
P8= Dt(T4,T2orT3orT7)
P5= Dt(T1orT4,T7)
P7= Dt (T1,T2orT3orT7)
P8= Dt(T4,T2orT3orT7)
No PHE
Diff 1 = Px = Dt(Tx,T3)
No PHE
Diff 1 = Px = Dt(Tx,T2)
System 15
Multiplex
System15 (1PHE)
Multiplex
System16
Multiplex
System16 (1PHE)
Multiplex
P1= Dt(T1,T2) P2= Dt(T1,T3)
P1= Dt(T1,T2) P2= Dt(T1,T3)
P1= Dt(T1,T2) P2= Dt(T1,T3)
P1= Dt(T1,T2) P2= Dt(T1,T3)
P5= Dt(T1,T7)
P5= Dt(T1,T7)
P5= Dt(T1,T7) P4= Dt(T1,T8)
P5= Dt(T1,T7) P4= Dt(T1,T8)
No PHE
Diff 1 = Px = Dt(Tx,T7)
No PHE
Diff 1 = Px = Dt(Tx,T8)
System 17
Multiplex
System17 (1PHE)
Multiplex
System 18
Multiplex
System18 (1PHE)
Multiplex
P1= Dt(T1,T2orT3) P2=
Dt(T4,T2orT3)
P1= Dt(T1,T2orT3) P2=
Dt(T4,T2orT3)
P7= Dt(T1 orT4,T2) P8= Dt(T1
orT4,T3)
P7= Dt(T1 orT4,T2) P8=
Dt(T1 orT4,T3)
P7= Dt(T1 orT4,T2) P8= Dt(T1
orT4,T3)
P7= Dt(T1 orT4,T2) P8=
Dt(T1 orT4,T3)
P5= Dt(T1orT4,T7) P1=T1
P2=T4
P5= Dt(T1orT4,T7) P1=T1
P2=T4
No PHE
Diff 1 = Px = Dt(Tx,T3)
No PHE
Diff 1 = Px = Dt(Tx,T7)
4.5 "Timer" functional block
Settings
Options
Factory setting
Note
Time 1 ON
00.00-24.00
00.00
Time frame 1 Switches ON
Time 1 OFF
00.00-24.00
24.00
Time frame 1 Switches OFF
Time 2 ON
00.00-24.00
11.30
Time frame 2 Switches ON
Time 2 OFF
00.00-24.00
13.30
Time frame 2 Switches OFF
Time 3 ON
00.00-24.00
19.00
Time frame 3 Switches ON
Time 3 OFF
00.00-24.00
22.00
Time frame 3 Switches OFF
Delay
-900 to +900sec.
0sec.
pre(- sec.) and after(+ sec.) output delay
