TiSUN MULTIPLEX User Manual

11

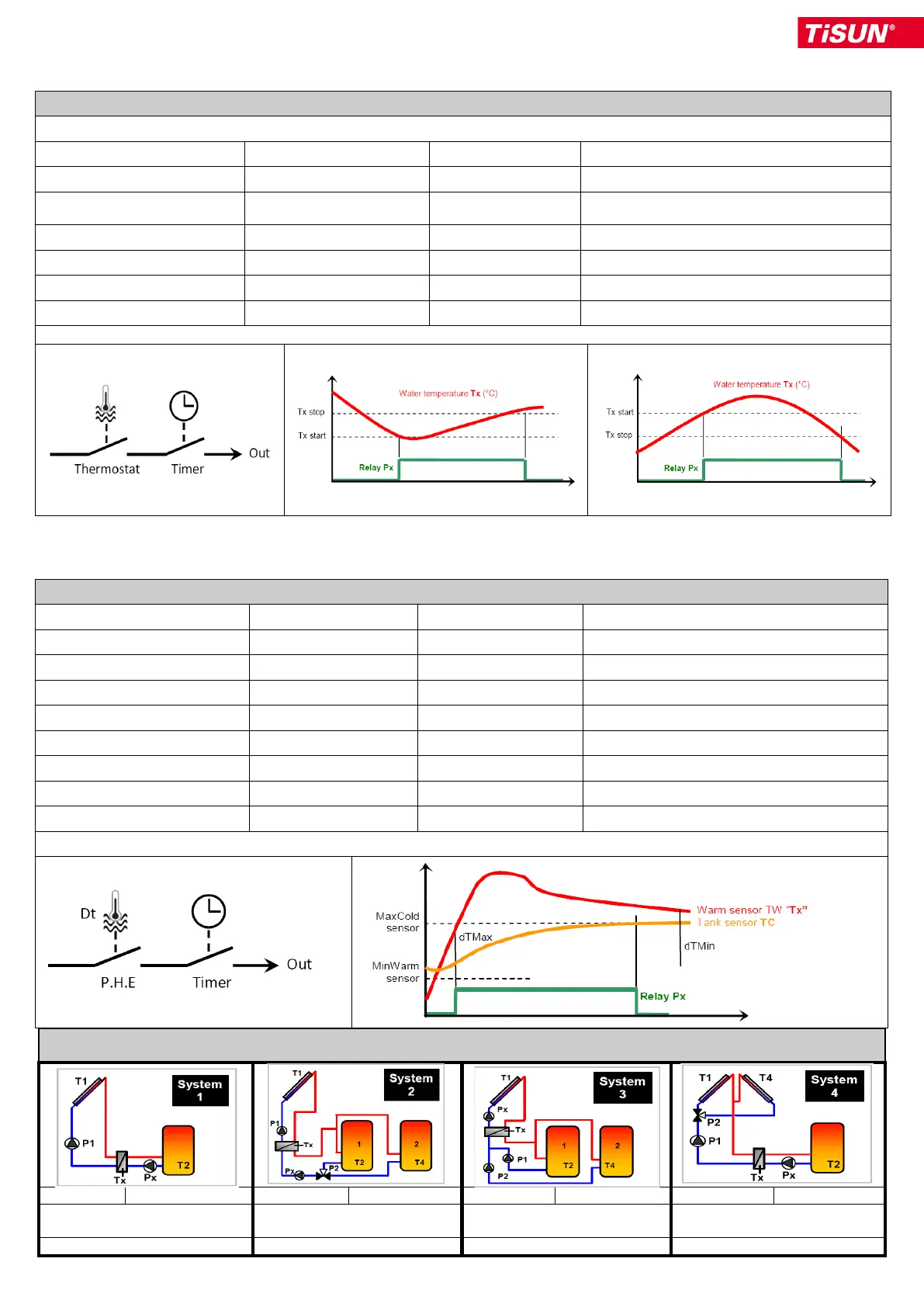

4.2 "Thermostat" functional block
Heating (if Start < Stop) and cooling (if Start > Stop)
Settings
Options
Factory setting
Note
Sensor (ON/OFF)
T1 to T12
Selectable
Temperature Sensor PT1000
Off-Sensor (just OFF)
no, T1 to T12
no
Optinal Thermostat function with 2
nd
Off-
Sensor for tank loading (lower placed)
Start (output ON)
15 to 130 °C
55 °C
Start temperature
Stop (output OFF)
0 to 140 °C
65 °C
Stop temperature
Timer (3x)
00.00-24.00
00.00-24.00
3 time frames adjustable (see timer)
Delay
-900 to +900sec.
0sec.
pre(- sec.) and after(+ sec.) output delay
4.3 "PHE" primary plate heat exchanger functional block
Settings
Options
Factory setting
Note
Primary sensor (warm)
Tx = T1 to T12
Selectable
Temperature sensor onplate heat exchanger
Secondary sensor (cold)
Tank sensor(s)
Of specified system
Tank temperature sensor(s)
dT max (start)
3 to 40 °C
15 °C
dT max
dT min (stop)
2 to 30 °C
7 °C
dT min
Min. primary sensor
0 to 95 °C
65 °C
Minimum temperature for ON
Max. secondary sensor
15 to 95 °C
15 °C
Maximum tank temperature
Timer (3x)
00.00-24.00
00.00-24.00
3 time frames adjustable (see timer)
Delay
-900 to +900sec.
0sec.
pre(- sec.) and after(+ sec.) output delay
DUPLEX and MULTIPLEX Systems with Main Plate Heat Exchanger function
System 1
Mutiplex
System 2
Mutiplex
System 3
Mutiplex
System 4
Mutiplex
P1= Dt(T1,T2)
P1= Dt(T1,T2orT4)
P2= Dt(T1,T4)
P1= Dt(Tx,T2)
P2= Dt(Tx,T4)
P1= Dt(T1orT4,T2)
P2= Dt(T4,T2)
1 x PHE = PX = Dt(Tx,T2)
1 x PHE = PX = Dt(Tx,T2orT4)
1 x PHE=PX=Dt(T1,T2orT4)
1 x PHE = PX = Dt(Tx,T2)
