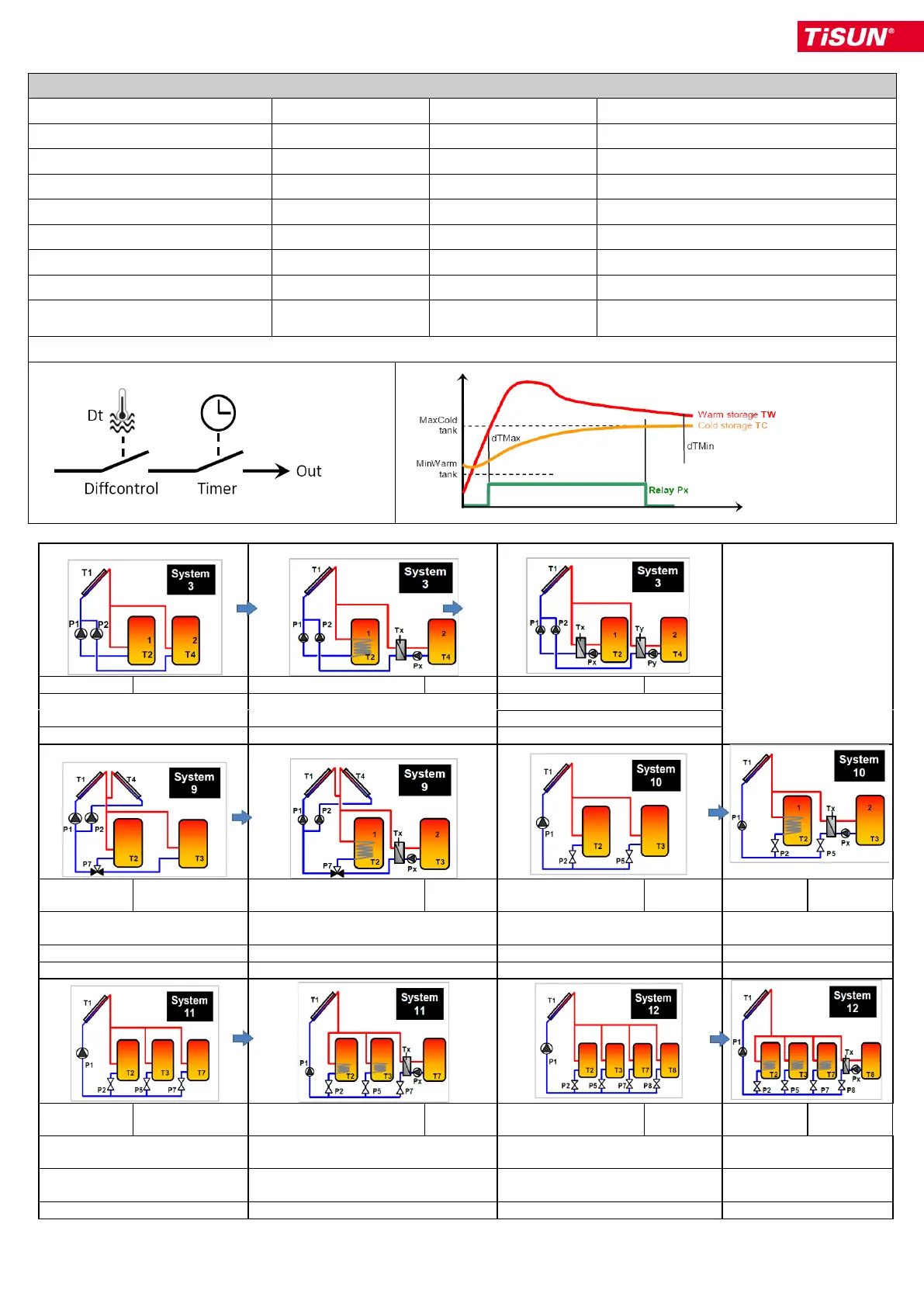

4.4 Functieblok 'verschilcontrole-eenheid'
Instellingen
Opties
Fabrieksinstelling
Opmerking
Primaire sensor (warm)
T1 tot T12
Selecteerbaar
Temperatuursensor warmtebron
Secundaire sensor (koud)
T1 tot T12
Selecteerbaar

dT max (start)
3 tot 40 °C
15 °C
dT max
dT min (stop)
2 tot 30 °C
7 °C
dT min
Min. primaire sensor
0 tot 95 °C
65 °C
Minimumtemperatuur voor AAN
Max. secundaire sensor
15 tot 95 °C
15 °C
Maximum tanktemperatuur
Timer (3x)
00.00-24.00
00.00-24.00
3 tijdframes aanpasbaar (zie timer)
Vertraging
-900 tot +900 sec.
0 sec.
voor (- sec.) en na (+ sec.)
outputvertraging
Systeem 3
Duplex
Systeem 3 (1PHE)
Multiplex
Systeem 3 (2 PHE)
Multiplex
P1= Dt(T1,T2) P2= Dt(T1,T4)
P1= Dt(T1,T2) P2= Dt(T1,T4)
P1= Dt(T1,T2) P2= Dt(T1,T4)
Diff 1 = Px = Dt(Tx,T2)
Geen PHE
Diff 1 = Px = Dt(Tx,T4)
Diff 2 = Py = Dt(Ty,T4)
Systeem 9
Multiplex
Systeem 9 (1PHE)
Multiplex
Systeem 10
Multiplex
Systeem
10 (1PHE)
Multiplex
P1= Dt(T1,T2 of T3) P2=
Dt(T4,T2 of T3)
P1= Dt(T1,T2 of T3) P2= Dt(T4,T2 of
T3)
P1= Dt(T1,T2 of T3) P2=
Dt(T1,T2)
P1= Dt(T1,T2 of T3) P2=
Dt(T1,T2)
P7= Dt(T1 of T4,T3)
P7= Dt(T1 of T4,T3)
P5= Dt(T1,T3)
P5= Dt(T1,T3)
Geen PHE
Diff 1 = Px = Dt(Tx,T3)
No PHE
Diff 1 = Px = Dt(Tx,T3)
Systeem 11
Multiplex
Systeem 11 (1PHE)
Multiplex
Systeem 12
Multiplex
Systeem 12
(1PHE)
Multiplex
P1= Dt(T1,T2 of T3 of T7) P2=
Dt(T1,T2)
P1= Dt(T1,T2 of T3 of T7) P2=
Dt(T1,T2)
P1= Dt(T1,T2 of T3 of T7 of T8)
P2= Dt(T1,T2)
P1= Dt(T1,T2 of T3 of T7
of T8) P2= Dt(T1,T2)
P5= Dt(T1,T3) P7= Dt(T1,T7)
P5= Dt(T1,T3) P7= Dt(T1,T7)
P5= Dt(T1,T3) P7= Dt(T1,T7) P8=
Dt(T1,T8)
P5= Dt(T1,T3) P7=
Dt(T1,T7) P8= Dt(T1,T8)
Geen PHE
Diff 1 = Px = Dt(Tx,T7)
No PHE
Diff 1 = Px = Dt(Tx,T8)
