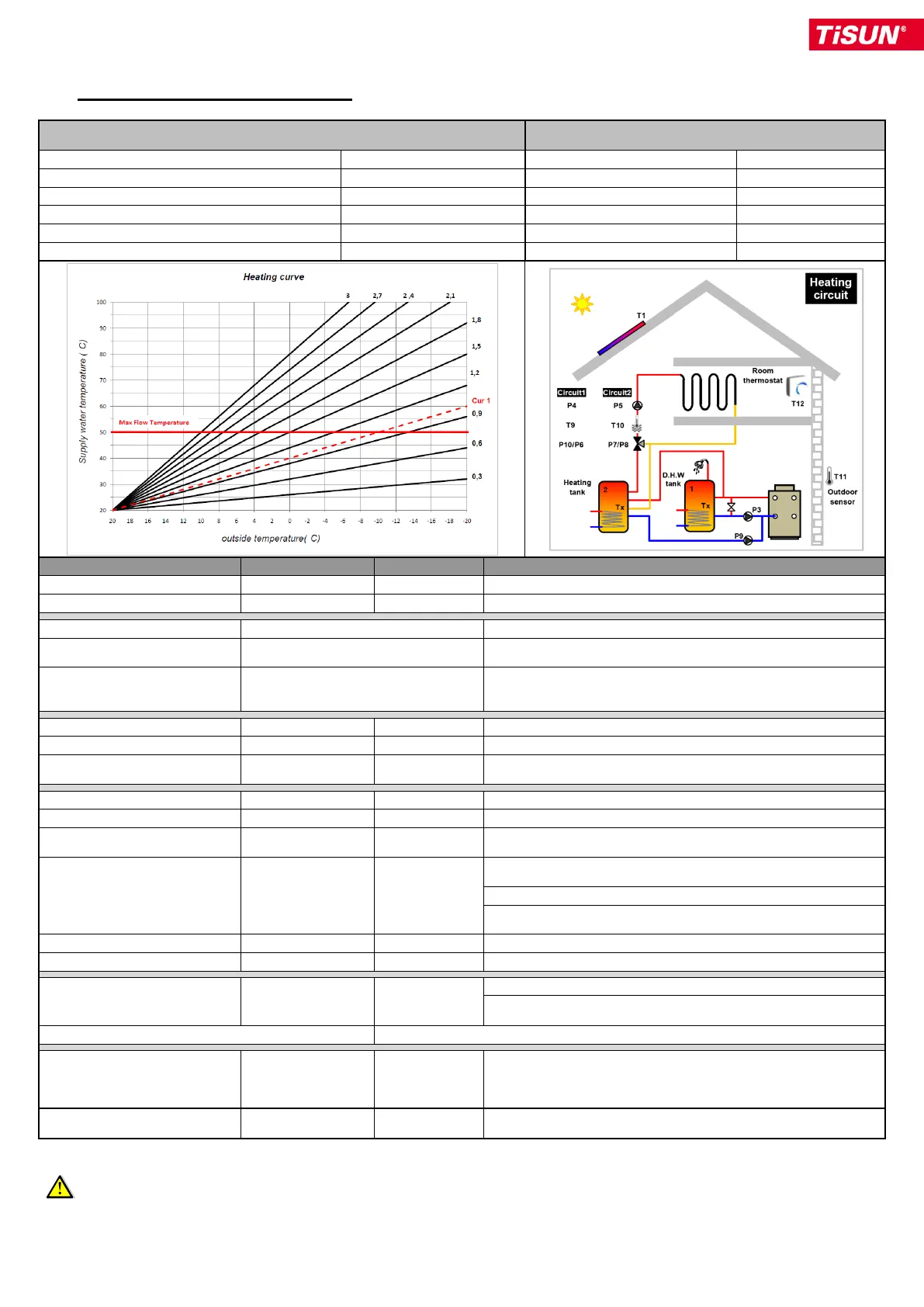

6 HEATING CIRCUIT 1 / 2
HEATING CIRCUIT 1
(Available with all systems (1 - 18)
HEATING CIRCUIT 2
(Only available with systems 1 8)
Only view of the values.
The value in the braket "(_ _)" is the calculated value.
Room Thermostat for adjusting the
supply temperature (heating
circuit)
Only view of the value
The adjustment must be done on the room thermostat
Reduction of the temperature
during day period
Reduction of the temperature
during night period
10 to 25 = Stop automaticaly in summer when outside temperature is
more than this level for more than 8 Hours.
ON = "Operation is Off" which means that Heating circuit is stopped.
OFF = "Operation is On" which means that there is no summer stop
whatever the temperature.
Time duration for the complete valve cycle (Open / Close)
Upper limit for water injected in the heating circuit
Domestic Hot water priority
(tank 1)
OFF = > P3 and the backup space heating pump work independantely
ON => The backup space heating pump will be stopped when D.H.W
demand.
Domestic Hot water tank backup heater Pump
P3 (can be defined manually as thermostat function block)
If yes, the space heating tank will be load with the bakup heater in
accordance with the water heating demand in the heating circuit.
The tank will be load at +10°C of the water temperature requested by
the curve.
Space Heating tank
Backup heater pump
Pump use for backup heater of the space heating tank
