TiSUN MULTIPLEX User Manual

8

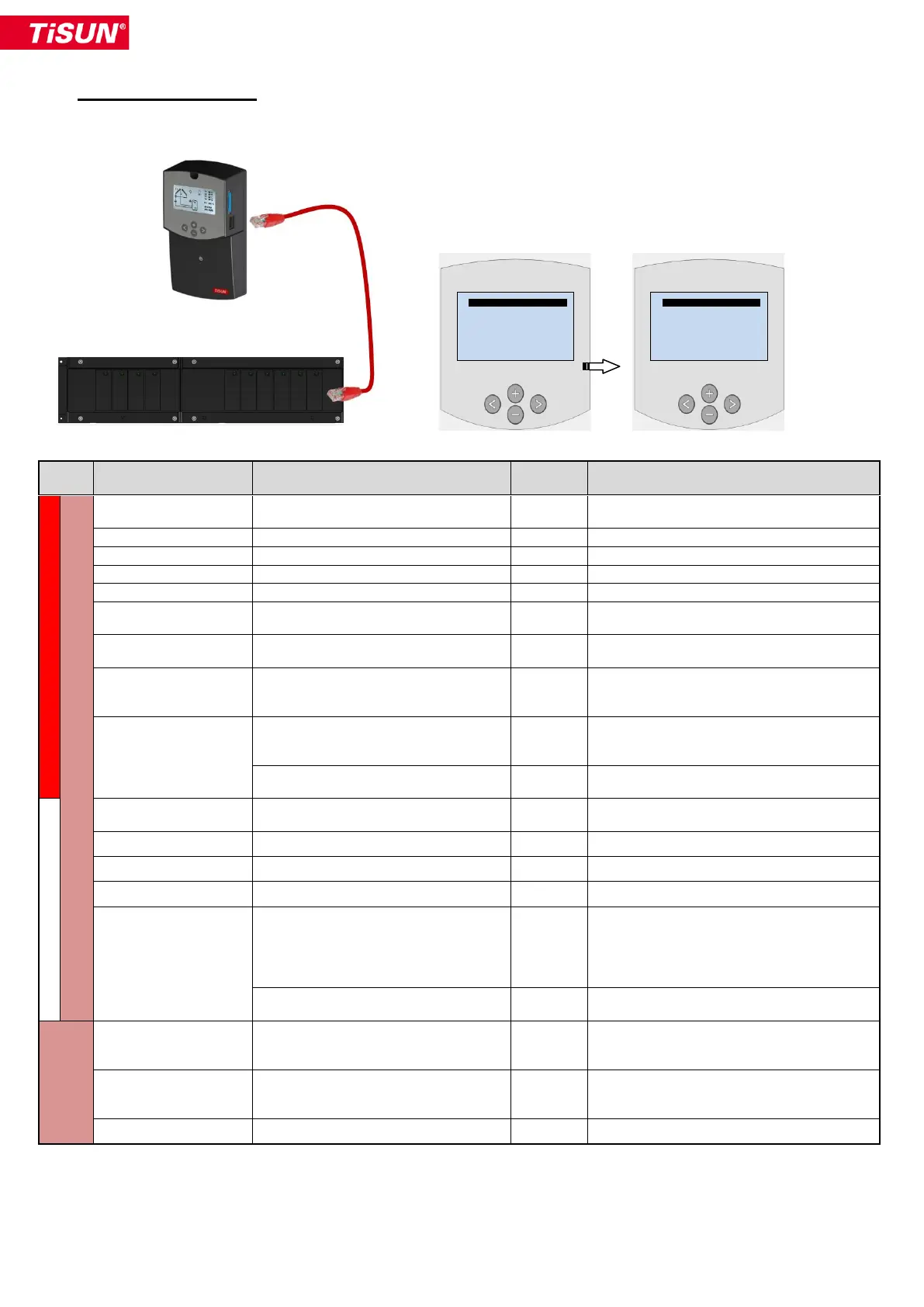

2 Multiplex Menu
(These extensions of the menus are only available when the extension module MULTIPLEX is linked on the DUPLEX controller)
Where
Parameters
Possibility
Factory
Setting
With
DUPLEX Setting menu
MULTIPLEX Setting menu
Maximum temperature
tank 1/2
15-95°C
65°C
All systems
dTMax tank 1/2
4-40°C
15°C
All systems
dTMin tank1/2
2-35°C
7°C
All systems
Min speed P. (Triac)
30-100%
60%
P1,P2,P4,P5 (if speed controlled)
dT FS
5-50°C
35°C
P1,P2,P4,P5 (if speed controlled)
Min. collector
temperature
1 - 99°C
25°C
All systems
Max. collector
temperature
110 – 150 °C
120°C
Heat protection (system protection)
GDS 1
RPS 0-4 or 0-6 or 0-10 bar
VFS 1-12, 2-40, 5-100, 10-200, 20-400
l/min
Not
connected
Grundfoss Flow sensor (VFS) or Pressure
sensor (RPS)
GDS 2
RPS 0-4 or 0-6 or 0-10 bar
VFS 1-12, 2-40, 5-100, 10-200, 20-400
l/min
Not
connected
Grundfoss Flow sensor (VFS) or Pressure
sensor (RPS)
T1 to T5 and T7 to 12
Not
connected
Optionnal PT1000 temperature sensor for
energy calculation
Maximum temperature
tank 3/4
15-95°C
65°C
3/4 tank system
dTMax tank 3/4
4-40°C
15°C
3/4 tank system
dTMin tank3/4
2-35°C
7°C
3/4 tank system
Heating circuit 1/2
Yes/No
No
Heating circuit 1/2
GDS 3/4
RPS 0-4 or 0-6 or 0-10 bar
VFS 1-12, 2-40, 5-100, 10-200, 20-400
l/min
VFS Energy calculation see DUPLEX

Not
connected
Grundfoss Flow sensor (VFS) or Pressure
sensor (RPS)
Temp Sensor 2
T1 to T5 and T7 to 12
Not
connected
Optionnal PT1000 temperature sensor for
energy calculation
Multiplex Output
Menu
Relay 2 to 8
Schematic/off/thermostat/
difference control unit/plate
heat exchanger/timer
Off
Schematic or functional blocks
Relay 9
Schematic/off/thermostat/
difference control unit/plate
heat exchanger/timer
Off
Schematic or functional blocks (floating)
Relay 10
scheme/off/thermostat
Off
Schematic or functional block
 Multiplex Out -
 P2
P3
Relay 4
Relay 5
Relay 6
Relay 7
 Informations -
Services
Settings
Operation
Operation h
Temperatures
 Multiplex Out
New Submenu:

New Fonction in Submenu:
Settings
See part 4
Function Blocks
