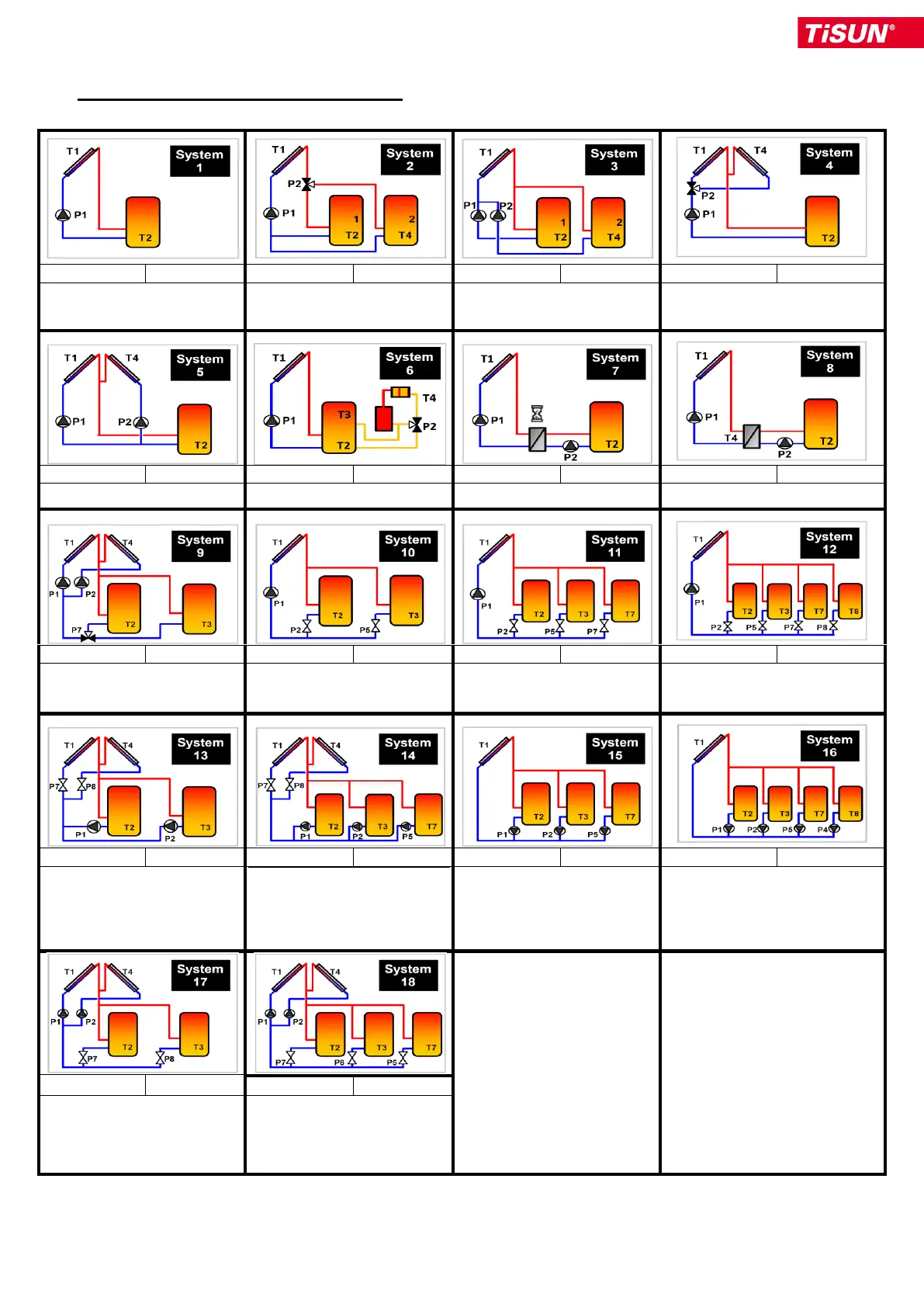

3 Multiplex standard systems
System 1
Duplex
System 2
Duplex
System 3
Duplex
System 4
Duplex
P1= Dt(T1,T2)
P1= Dt(T1,T2orT4)
P2= Dt(T1,T4)
P1= Dt(T1,T2) P2= Dt(T1,T4)
P1= Dt(T1orT4,T2) P2= Dt(T4,T2)
System 5
Duplex
System 6
Duplex
System 7
Duplex
System 8
Duplex
P1 = Dt(T1,T2) P2 = Dt(T4,T2)
P1= Dt(T1,T2) P2= Dt(T3,T4)
P1 = Dt(T1,T2) P2 = Delay P1
P1 = Dt(T1,T2) P2 = Dt(T4,T2)
System 9
Multiplex
System 10
Multiplex
System 11
Multiplex
System 12
Multiplex
P1= Dt(T1,T2 or T3)
P2= Dt(T4,T2orT3)
P7= Dt(T1 or T4,T3)
P1= Dt(T1,T2 or T3)
P2= Dt(T1,T2)
P5= Dt(T1,T3)
P1= Dt(T1,T2orT3orT7)
P2= Dt(T1,T2)
P5= Dt(T1,T3) P7= Dt(T1,T7)
P1= Dt(T1,T2orT3orT7orT8)
P2= Dt(T1,T2) P5= Dt(T1,T3)
P7= Dt(T1,T7) P8= Dt(T1,T8)
System 13
Multiplex
System 14
Multiplex
System 15
Multiplex
System 16
Multiplex
P1= Dt(T1orT4,T2)
P2= Dt(T1orT4,T3)
P7= Dt(T1,T2orT3)
P8= Dt(T4,T2orT3)
P1= Dt(T1orT4,T2)
P2= Dt(T1orT4,T3)
P5= Dt(T1orT4,T7)
P7= Dt (T1,T2orT3orT7)
P8= Dt(T4,T2orT3orT7)
P1= Dt(T1,T2)
P2= Dt(T1,T3)
P5= Dt(T1,T7)
P1= Dt(T1,T2) P2= Dt(T1,T3)
P5= Dt(T1,T7) P4= Dt(T1,T8)
Functional blocks:
(for individual connection to
outputs)
- Schematic
- Primary plate heat exchanger
- Secondary plate heat exchanger
- Thermostat function
(with 3x timer)
- Difference control unit
(with 3x timer)
- Timer block
Heating circuit control unit:
-Two availables
weather-compensating heating circuits
with
- Remote control for living areas
- Ambient temperature sensor
- Domestic hot water priority circuit
- Day/Night setback
- Auto summer mode
- ECO Mode
System 17
Multiplex
System 18
Multiplex
P1= Dt(T1,T2orT3)
P2= Dt(T4,T2orT3)
P7= Dt(T1 orT4,T2)
P8= Dt(T1 orT4,T3)
P7= Dt(T1 orT4,T2)
P8= Dt(T1 orT4,T3)
P5= Dt(T1orT4,T7)
P1=T1 P2=T4
