TiSUN MULTIPLEX User Manual

59

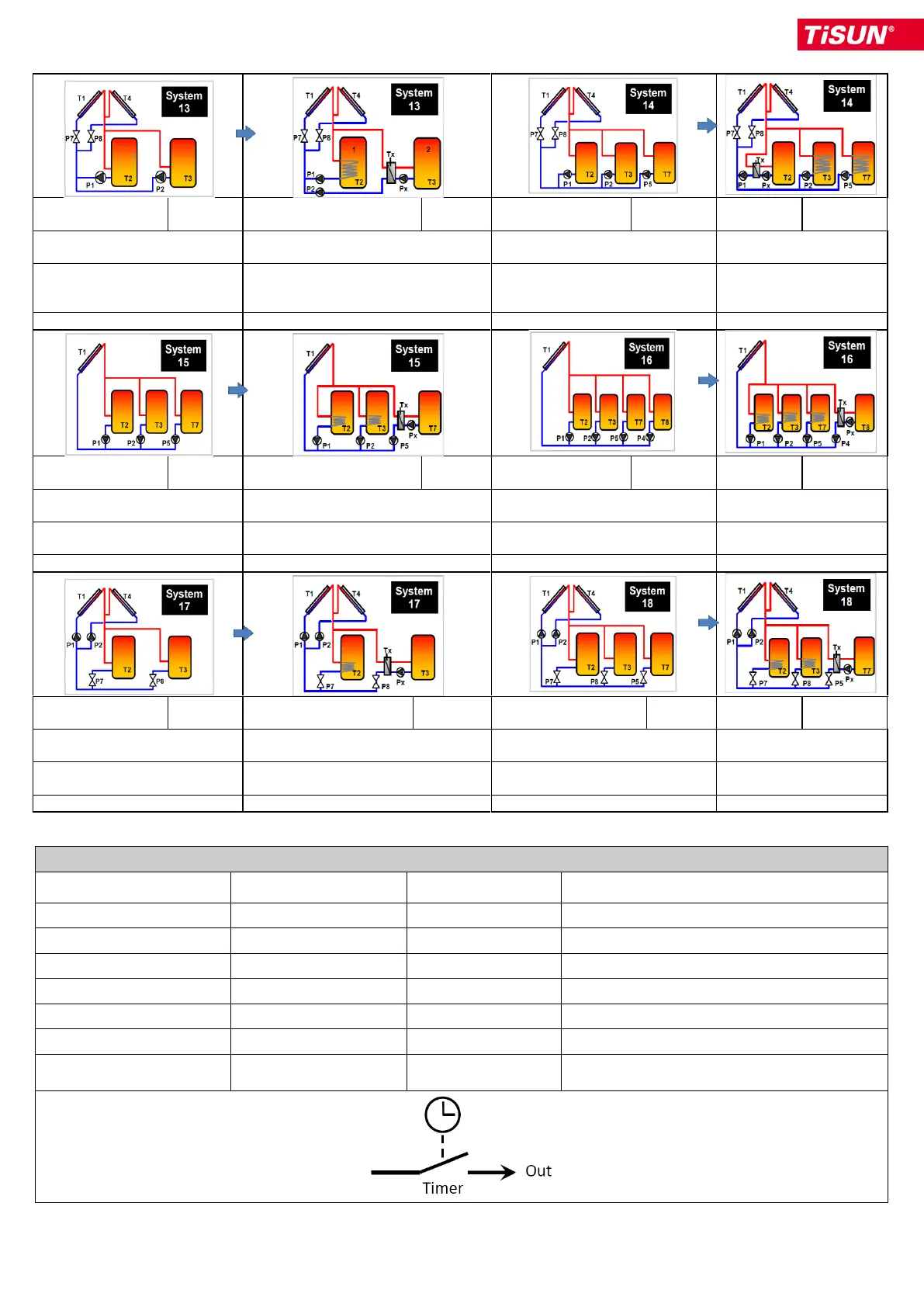

Sistema 13
Multiplex
Sistema 13 (1PHE)
Multiplex
Sistema 14
Multiplex
Sistema 14
(1PHE)
Multiplex
P1= Dt(T1 o T4,T2)
P2= Dt(T1 o T4,T3)
P1= Dt(T1 o T4,T2)
P2= Dt(T1 o T4,T3)
P1= Dt(T1 o T4,T2)
P2= Dt(T1 o T4,T3)
P1= Dt(T1 o T4,T2)
P2= Dt(T1 o T4,T3)
P7= Dt(T1,T2 o T3)
P8= Dt(T4,T2 o T3)
P7= Dt(T1,T2 o T3)
P8= Dt(T4,T2 o T3)
P5= Dt(T1 o T4,T7)
P7= Dt (T1,T2 o T3 o T7)
P8= Dt(T4,T2 o T3 o T7)
P5= Dt(T1 o T4,T7)
P7= Dt (T1,T2 o T3 o T7)
P8= Dt(T4,T2 o T3 o T7)
Nessun PHE
Diff 1 = Px = Dt(Tx,T3)
Nessun PHE
Diff 1 = Px = Dt(Tx,T2)
Sistema 15
Multiplex
Sistema 15 (1PHE)
Multiplex
Sistema 16
Multiplex
Sistema 16
(1PHE)
Multiplex
P1= Dt(T1,T2) P2= Dt(T1,T3)
P1= Dt(T1,T2) P2= Dt(T1,T3)
P1= Dt(T1,T2) P2= Dt(T1,T3)
P1= Dt(T1,T2) P2=
Dt(T1,T3)
P5= Dt(T1,T7)
P5= Dt(T1,T7)
P5= Dt(T1,T7) P4= Dt(T1,T8)
P5= Dt(T1,T7) P4=
Dt(T1,T8)
Nessun PHE
Diff 1 = Px = Dt(Tx,T7)
Nessun PHE
Diff 1 = Px = Dt(Tx,T8)
Sistema 17
Multiplex
Sistema 17 (1PHE)
Multiplex
Sistema 18
Multiplex
Sistema 18
(1PHE)
Multiplex
P1= Dt(T1,T2 o T3) P2=
Dt(T4,T2 o T3)
P1= Dt(T1,T2 o T3) P2= Dt(T4,T2 o
T3)
P7= Dt(T1 o T4,T2) P8= Dt(T1 o
T4,T3)
P7= Dt(T1 o T4,T2) P8=
Dt(T1 o T4,T3)
P7= Dt(T1 o T4,T2) P8= Dt(T1
o T4,T3)
P7= Dt(T1 o T4,T2) P8= Dt(T1 o
T4,T3)
P5= Dt(T1 o T4,T7) P1=T1
P2=T4
P5= Dt(T1 o T4,T7)
P1=T1 P2=T4
Nessun PHE
Diff 1 = Px = Dt(Tx,T3)
Nessun PHE
Diff 1 = Px = Dt(Tx,T7)
4.5 Blocco operativo - Timer
Impostazioni
Opzioni
Impostazione
predefinita
Note
Ora 1 ON
00.00-24.00
00.00
Intervallo 1 - Interruttori ON
Ora 1 OFF
00.00-24.00
24.00
Intervallo 1 - Interruttori OFF
Ora 2 ON
00.00-24.00
11.30
Intervallo 2 - Interruttori ON
Ora 2 OFF
00.00-24.00
13.30
Intervallo 2 - Interruttori OFF
Ora 3 ON
00.00-24.00
19.00
Intervallo 3 - Interruttori ON
Ora 3 OFF
00.00-24.00
22.00
Intervallo 3 - Interruttori OFF
Ritardo
da -900 a +900 sec.
0 sec.
Ritardo in uscita prima (- sec.) e dopo (+
sec.)
