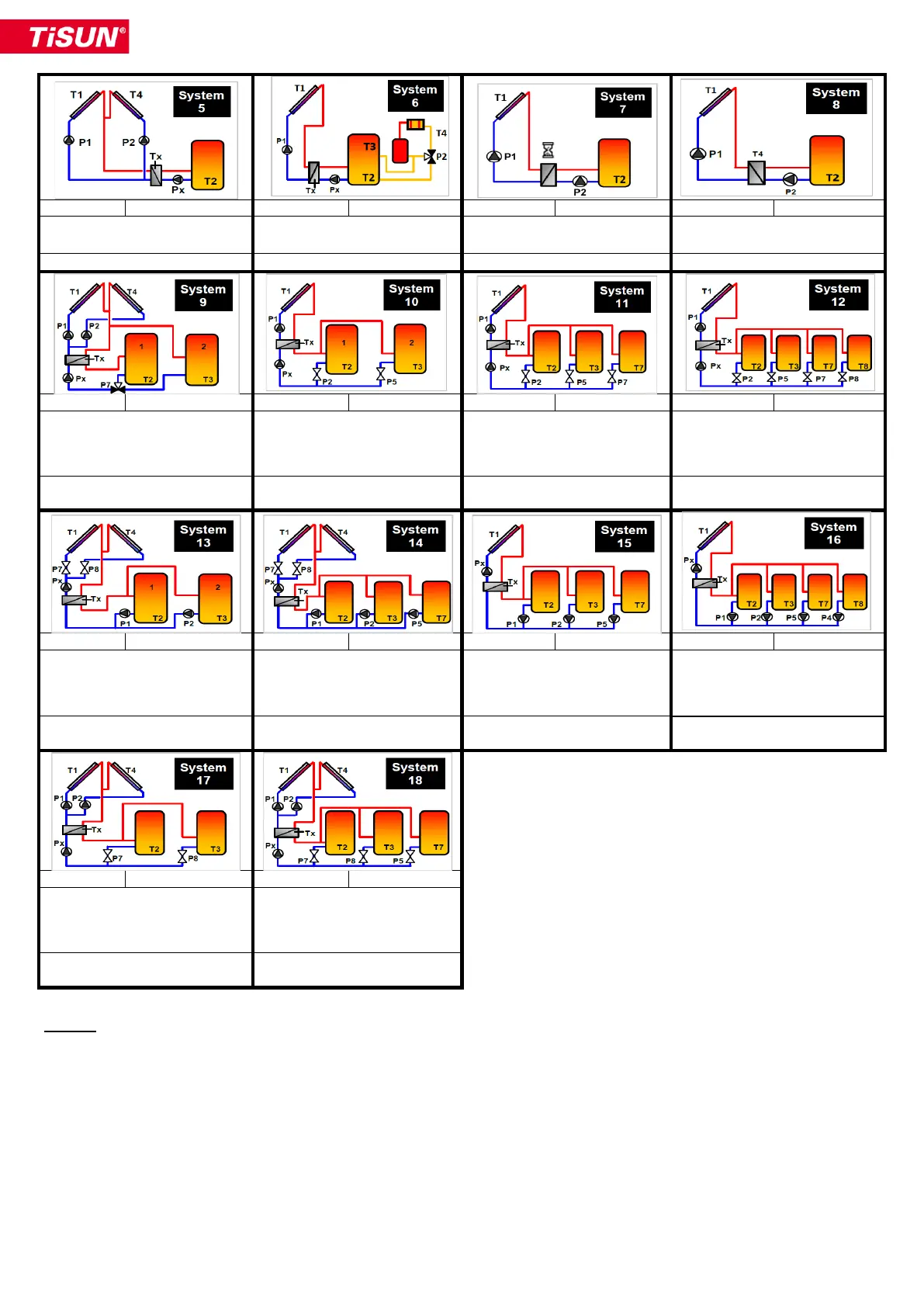

TiSUN MULTIPLEX User Manual

132
Sistem 5
Mutiplex
Sistem 6
Mutiplex
Sistem 7
Duplex
Sistem 8
Duplex
P1= Dt(T1,T2)
P2= Dt(T4,T2)
P1= Dt(T1,T2) P2= Dt(T3,T4)
P1= Dt(T1,T2)
P2 = zakasnitev P1
P1= Dt(T1,T2)
P2= Dt(T4,T2)
1 x PHE = PX = Dt(Tx,T2)
1 x PHE = PX = Dt(Tx,T2)
Ni PHE
Ni PHE
Sistem 9
Multiplex
Sistem 10
Multiplex
Sistem 11
Multiplex
Sistem 12
Multiplex
P1= Dt(T1,T2 ali T3)
P2= Dt(T4,T2aliT3)
P7= Dt(T1 ali T4,T3)
P1= Dt(T1,T2 ali T3)
P2= Dt(T1,T2)
P5= Dt(T1,T3)
P1= Dt(T1,T2aliT3aliT7) P2=
Dt(T1,T2)
P5= Dt(T1,T3)
P7= Dt(T1,T7)
P1= Dt(T1,T2aliT3aliT7aliT8)
P2= Dt(T1,T2)
P5= Dt(T1,T3) P7= Dt(T1,T7)
P8= Dt(T1,T8)
1 x PHE=PX= Dt(Tx,T2aliT3)
1 x PHE = PX = Dt(Tx,T2aliT3)
1 x PHE = PX =
Dt(Tx,T2aliT3aliT7)
1 x PHE = PX =
Dt(Tx,T2aliT3aliT7aliT8)
Sistem 13
Multiplex
Sistem 14
Multiplex
Sistem 15
Multiplex
Sistem 16
Multiplex
P1= Dt(Tx,T2)
P2= Dt(Tx,T3)
P1= Dt(Tx,T2) P2= Dt(Tx,T3)
P5= Dt(Tx,T7)
P1= Dt(Tx,T2)
P2= Dt(Tx,T3)
P5= Dt(Tx,T7)
P1= Dt(Tx,T2) P2= Dt(Tx,T3)
P5= Dt(Tx,T7) P4= Dt(Tx,T8)
P7= Dt(T1,T2aliT3)
P8= Dt(T4,T2aliT3)
P7= Dt (T1,T2aliT3aliT7)
P8= Dt(T4,T2aliT3aliT7)
1 x PHE = PX =
Dt(T1aliT4,T2aliT3)
1 x PHE = PX =
Dt(T1aliT4,T2aliT3aliT7)
1 x PHE = PX =
Dt(T1,T2aliT3aliT7)
1 x PHE = PX =
Dt(T1,T2aliT3aliT7aliT8)
Sistem 17
Multiplex
Sistem 18
Multiplex
P1= Dt(T1,T2aliT3) P2=
Dt(T4,T2aliT3)
P7= Dt(T1aliT4,T2) P8=
Dt(T1aliT4,T3)
P7= Dt(T1aliT4b,T2) P8=
Dt(T1aliT4,T3)
P5= Dt(T1aliT4,T7) P1=T1
P2=T4
1 x PHE=P=Dt(Tx,T2aliT3)
1 x
PHE=PX=Dt(Tx,T2aliT3aliT7)
Pomni:
HE proti mirovanju,
odvisno od posameznega projekta!"
