TiSUN MULTIPLEX User Manual

27

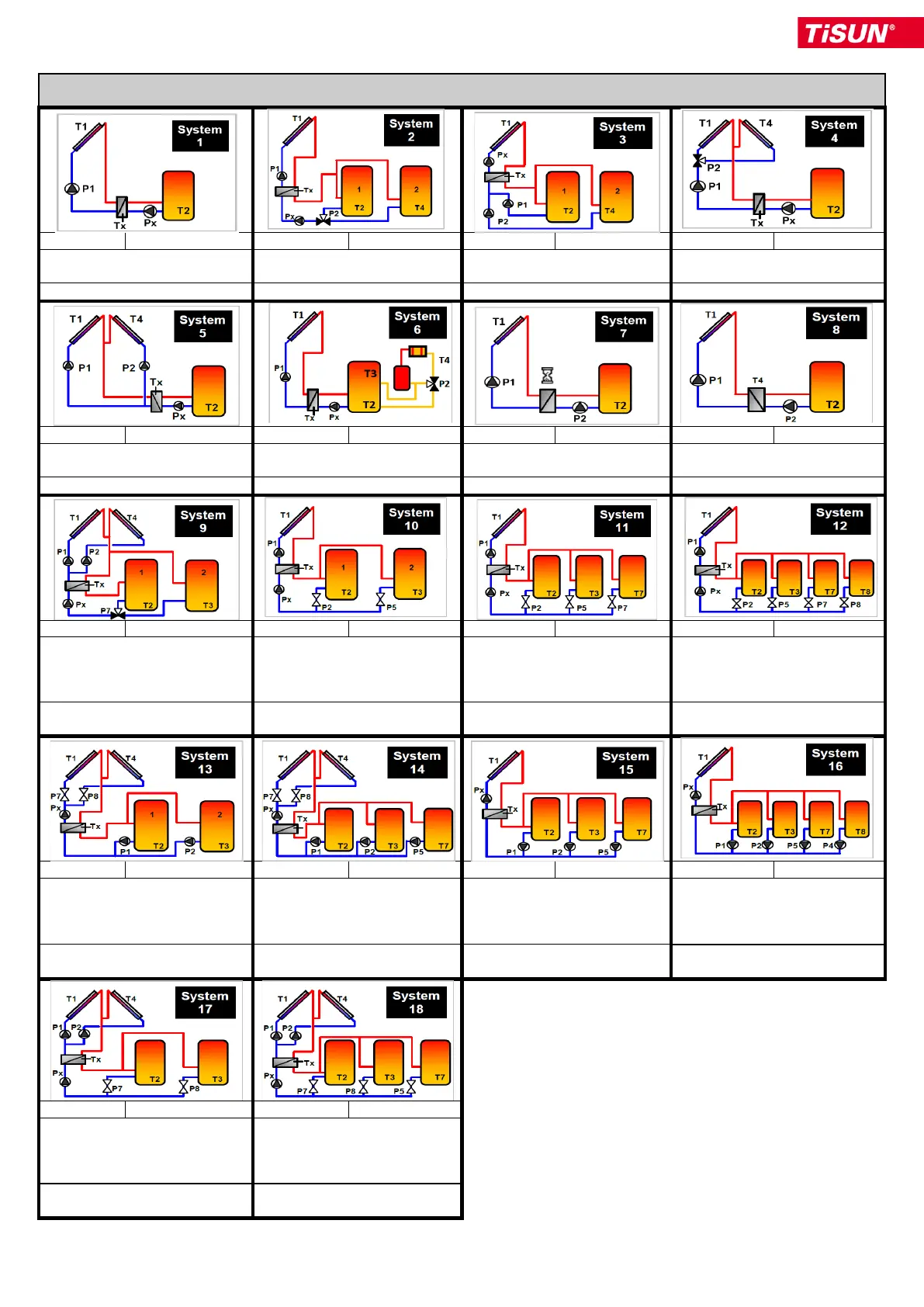

Systèmes DUPLEX et MULTIPLEX avec fonction PHE
System 1
Mutiplex
System 2
Mutiplex
System 3
Mutiplex
System 4
Mutiplex
P1= Dt(T1,T2)
P1= Dt(T1,T2orT4)
P2= Dt(T1,T4)
P1= Dt(Tx,T2)
P2= Dt(Tx,T4)
P1= Dt(T1orT4,T2)
P2= Dt(T4,T2)
1 x PHE = PX = Dt(Tx,T2)
1 x PHE = PX = Dt(Tx,T2orT4)
1 x PHE=PX=Dt(T1,T2orT4)
1 x PHE = PX = Dt(Tx,T2)
System 5
Mutiplex
System 6
Mutiplex
System 7
Duplex
System 8
Duplex
P1 = Dt(T1,T2)
P2 = Dt(T4,T2)
P1= Dt(T1,T2) P2= Dt(T3,T4)
P1 = Dt(T1,T2)
P2 = Delay P1
P1 = Dt(T1,T2)
P2 = Dt(T4,T2)
1 x PHE = PX = Dt(Tx,T2)
1 x PHE = PX = Dt(Tx,T2)
No PHE
No PHE
System 9
Multiplex
System 10
Multiplex
System 11
Multiplex
System 12
Multiplex
P1= Dt(T1,T2 or T3)
P2= Dt(T4,T2orT3)
P7= Dt(T1 or T4,T3)
P1= Dt(T1,T2 or T3)
P2= Dt(T1,T2)
P5= Dt(T1,T3)
P1= Dt(T1,T2orT3orT7) P2=
Dt(T1,T2)
P5= Dt(T1,T3)
P7= Dt(T1,T7)
P1= Dt(T1,T2orT3orT7orT8)
P2= Dt(T1,T2)
P5= Dt(T1,T3) P7= Dt(T1,T7)
P8= Dt(T1,T8)
1 x PHE=PX= Dt(Tx,T2orT3)
1 x PHE = PX = Dt(Tx,T2orT3)
1 x PHE = PX =
Dt(Tx,T2orT3orT7)
1 x PHE = PX =
Dt(Tx,T2orT3orT7orT8)
System 13
Multiplex
System 14
Multiplex
System 15
Multiplex
System 16
Multiplex
P1= Dt(Tx,T2)
P2= Dt(Tx,T3)
P1= Dt(Tx,T2) P2= Dt(Tx,T3)
P5= Dt(Tx,T7)
P1= Dt(Tx,T2)
P2= Dt(Tx,T3)
P5= Dt(Tx,T7)
P1= Dt(Tx,T2) P2= Dt(Tx,T3)
P5= Dt(Tx,T7) P4= Dt(Tx,T8)
P7= Dt(T1,T2orT3)
P8= Dt(T4,T2orT3)
P7= Dt (T1,T2orT3orT7)
P8= Dt(T4,T2orT3orT7)
1 x PHE = PX =
Dt(T1orT4,T2orT3)
1 x PHE = PX =
Dt(T1orT4,T2orT3orT7)
1 x PHE = PX =
Dt(T1,T2orT3orT7)
1 x PHE = PX =
Dt(T1,T2orT3orT7orT8)
System 17
Multiplex
System 18
Multiplex
P1= Dt(T1,T2orT3) P2=
Dt(T4,T2orT3)
P7= Dt(T1 orT4,T2) P8= Dt(T1
orT4,T3)
P7= Dt(T1 orT4,T2) P8= Dt(T1
orT4,T3)
P5= Dt(T1orT4,T7) P1=T1
P2=T4
1 x PHE=P=Dt(Tx,T2orT3)
1 x
PHE=PX=Dt(Tx,T2orT3orT7)
