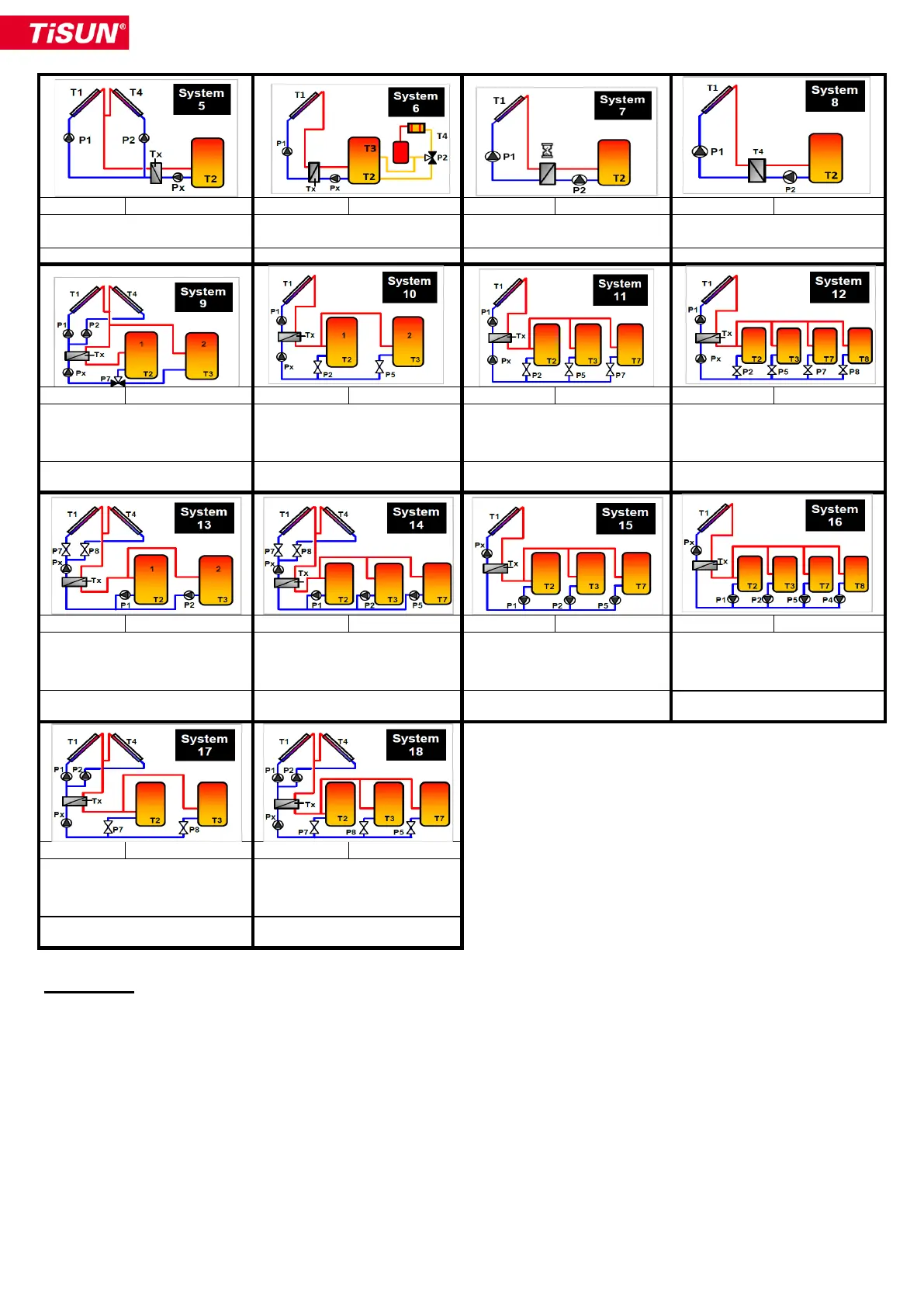

System 5

Multiplex

System 6

Multiplex

System 7

Duplex

System 8

Duplex

P1 = dt (T1, T2)

P2 = dt (T4, T2)

P1 = dt (T1, T2)

P2 = dt (T3, T4)

P1 = dt (T1, T2)

P2 = Einschaltverzögerung P1

P1 = dt (T1, T2)

P2 = dt (T4, T2)

1 x PHE = PX = dt (Tx, T2)

Kein PHE

System 9

Multiplex

System 10

Multiplex

System 11

Multiplex

System 12

Multiplex

P1 = dt (T1, T2 oder T3)

P2 = dt (T4, T2 oder T3)

P7 = dt (T1 oder T4, T3)

P1 = dt (T1, T2 oder T3)

P2 = dt (T1, T2)

P5 = dt (T1, T3)

P1 = dt (T1, T2 oder T3 oder T7)

P2 = dt (T1, T2)

P5 = dt (T1, T3)

P7 = dt (T1, T7)

P1 = dt (T1, T2 oder T3 oder T7

oder T8) P2 = dt (T1, T2)

P5 = dt (T1, T3) P7 = dt (T1, T7) P8

= dt (T1, T8)

1 x PHE = PX = dt (Tx, T2 oder T3)

1 x PHE = PX = dt (Tx, T2 oder T3

oder T7)

1 x PHE = PX = dt (Tx, T2 oder T3

oder T7 oder T8)

System 13

Multiplex

System 14

Multiplex

System 15

Multiplex

System 16

Multiplex

P1 = dt (Tx, T2)

P2 = dt (Tx, T3)

P1 = dt (Tx, T2) P2 = dt (Tx, T3)

P5= dt (Tx, T7)

P1 = dt (Tx, T2)

P2 = dt (Tx, T3)

P5 = dt (Tx, T7)

P1 = dt (Tx, T2) P2= dt (Tx, T3)

P5 = dt (Tx, T7) P4 = dt (Tx, T8)

P7 = dt (T1, T2 oder T3)

P8 = dt (T4, T2 oder T3)

P7 = dt (T1, T2 oder T3 oder T7)

P8 = dt (T4, T2 oder T3 oder T7)

1 x PHE = PX = dt (T1 oder T4, T2

oder T3)

1 x PHE = PX = dt (T1 oder T4, T2

oder T3 oder T7)

1 x PHE = PX = dt (T1, T2 oder T3

oder T7)

1 x PHE = PX = dt (T1, T2 oder T3

oder T7 oder T8)

System 17

Multiplex

System 18

Multiplex

P1 = dt (T1, T2 oder T3) P2 = dt (T4,

T2 oder T3)

P7 = dt (T1 oder T4, T2) P8= dt (T1

oder T4, T3)

P7 = dt (T1 oder T4, T2) P8= dt (T1

oder T4, T3)

P5 = dt (T1 oder T4, T7) P1 = T1

P2 = T4

1 x PHE = P = dt (Tx, T2 oder T3)

1 x PHE = PX = dt (Tx, T2 oder T3

oder T7)

Bemerkung:

-Funktion für Antistagnation


