Toa RM-200M - If the Name Label Is Not Printed Correctly; Dimensional Diagram for Printing Devices

73
Name label A
Cutting size: 30 x 110 mm
Name label B
Cutting size: 30 x 136 mm
30
131313
13
13.5
13.5
136
13 x 9 (=117)
39
110
30

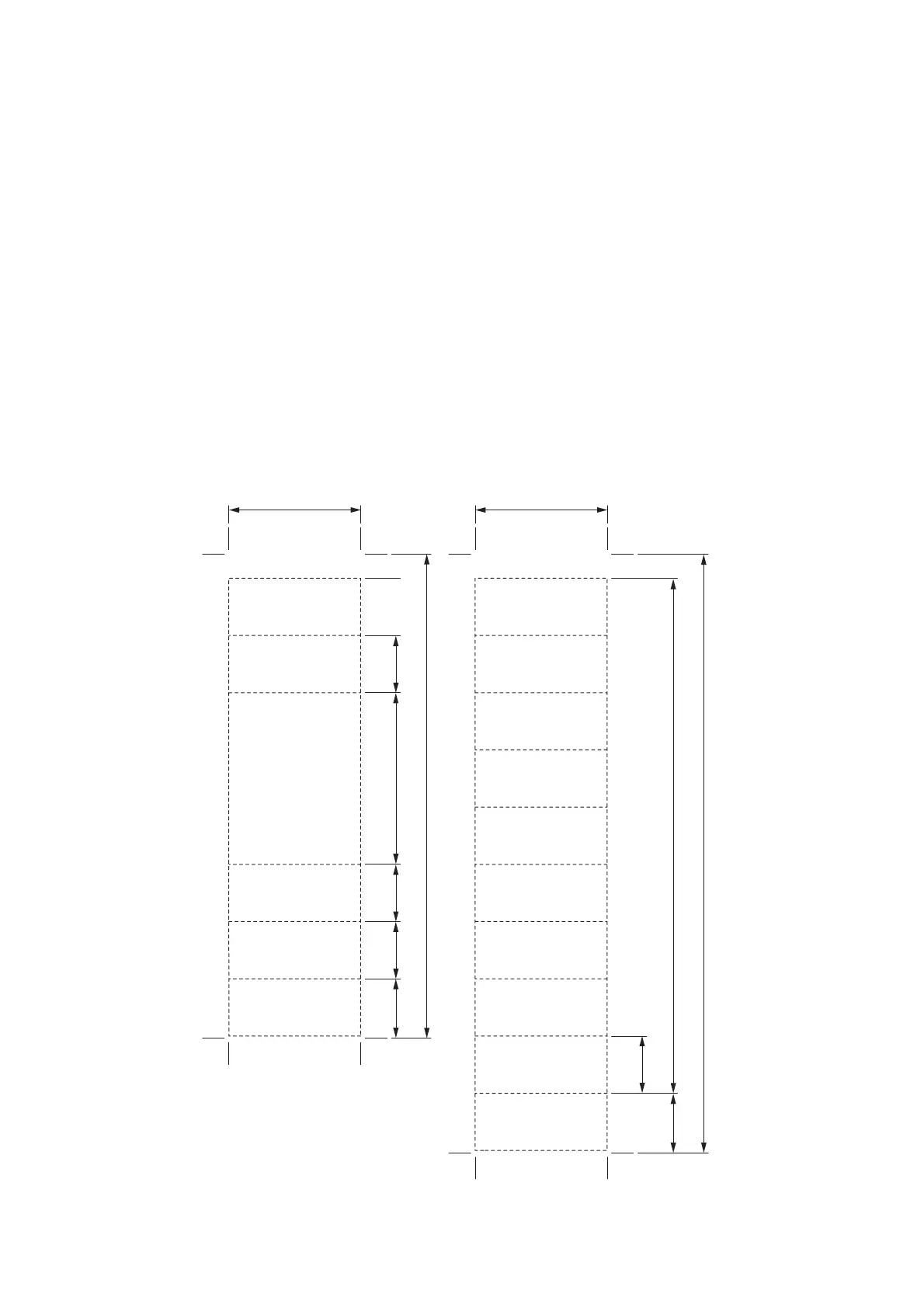

12.2.3. Dimensional diagram for printing devices
12.2.2. If the name label is not printed correctly
The name label created using the VM-3000 Setting Software may not be printed in correct size depending on
the configuration environment of your PC. In such cases, try one of the methods described below.
(1) Preparation by hand
Copy the "Pattern paper for hand writing" on the next page. After writing a name, cut out the pattern paper
aligning it with the cutting guidelines.
(2) Preparation by using a PC or word processor
Prepare and print according to the instructions given in the "Dimensional diagram for printing devices."
Then cut out to the instructed size.
