Toa RM-200M - Nomenclature and Functions; VM-3240 VA Voice Alarm System Amplifier; VM-3240 E VM Extension Amplifier

10
1 23
4
5 6
7
8
9
10 11
12
13
14
15 16
17
19 20
21 22 23 24 25 26
27
27
28 29
30
30
31
32
33
16 18
2 17 18

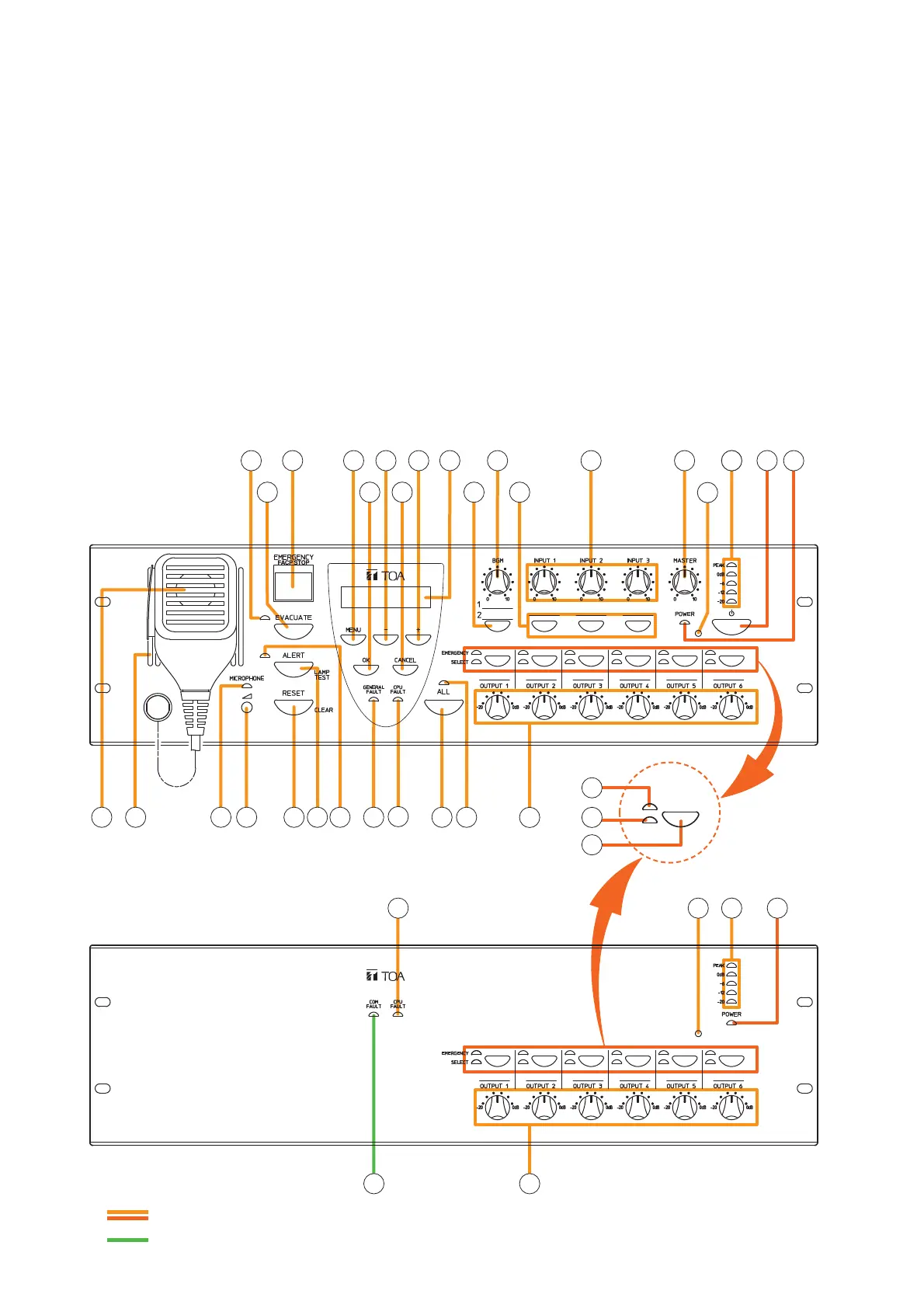

VM-3240VA
VM-3240E
34
Common to both Voice Alarm System and Extension amplifiers.
Differing between Voice Alarm System and Extension amplifiers.
*
*
For emergency use only.
4. NOMENCLATURE AND FUNCTIONS
4.1. VM-3240VA Voice Alarm System Amplifier
This amplifier functions as the central unit in the VM-3000 system and its power output is rated at 200 W.
Only one unit can be connected in the system.
The front panel-mounted LCD displays setting and operation status. The amplifier also features an automatic
message function and can play back up to 6 recorded general announcements and 2 recorded emergency
announcements. Up to 4 RM-200M general broadcast-use Remote Microphones can be connected.
4.2. VM-3240E VM Extension Amplifier
The system can be expanded by connecting up to 9 VM-3240E Extension Amplifiers. The VM-3240E is
equipped with 6 speaker line outputs. It also features 8 control inputs for general broadcasts and 6 inputs and
3 status outputs for emergency broadcasts. It is connected to the VM-3240VA via the VM Link connector.
[Front]
