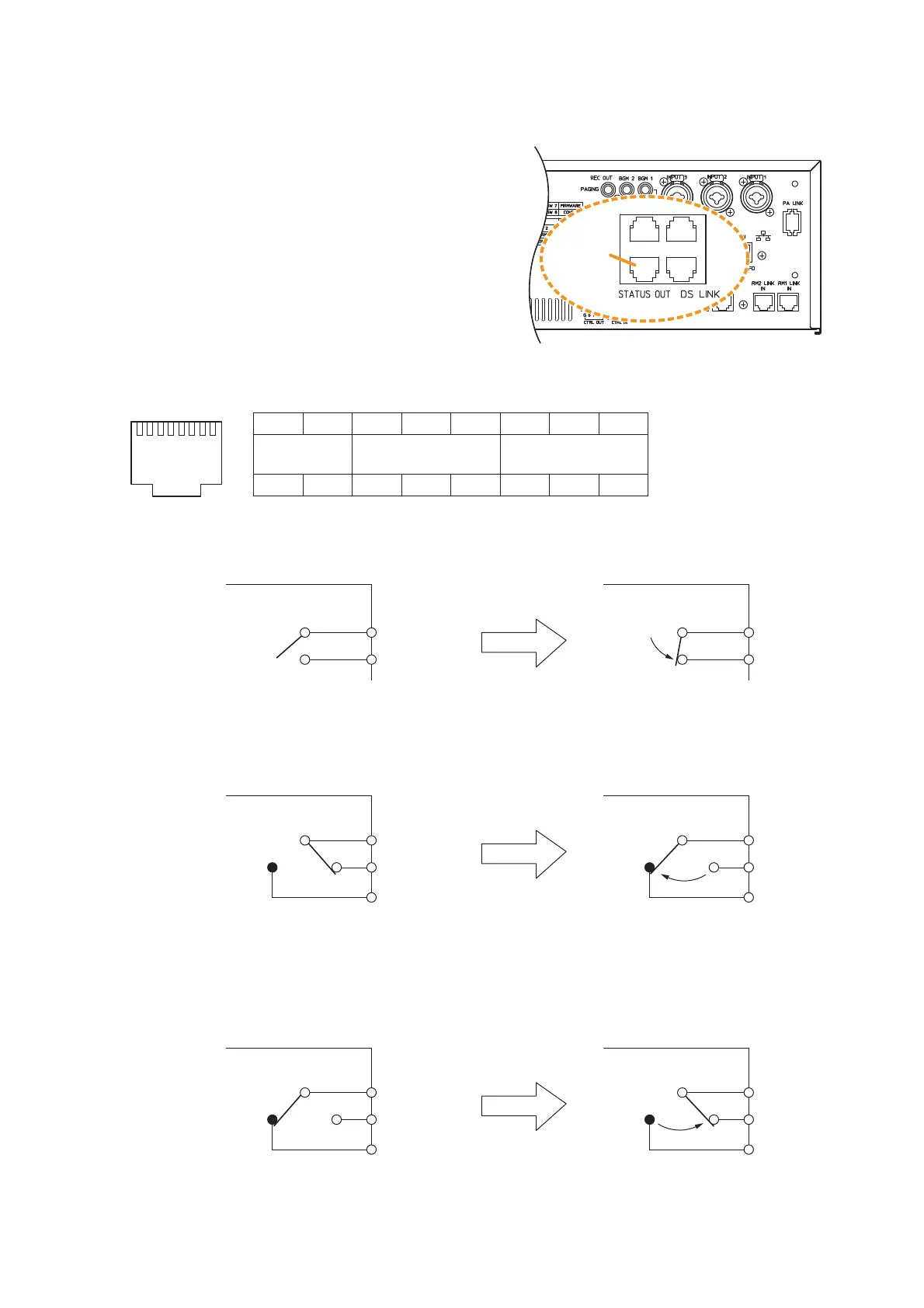

Toa RM-200M - Status Output Terminal Connections

88
VM-3240VA rear
Status
Output
Terminal
87654321
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8
COM NO
*
1
*
1
NO: Normally Open
*
2
NC: Normally Closed
COM NO*
1
NC*
2
COM NO*
1
NC*
2
CPU OFF
STATUS OUT
FAULT
STATUS OUT
EMERGENCY
STATUS OUT
[Operation at CPU OFF status output]
Normal condition
Unit’s inside
Pin 1
Pin 2
CPU OFF status
Unit’s inside
Pin 1
Pin 2
[Operation at failure status output]
Normal condition
Unit’s inside
Pin 3
Pin 4
Failure status
Pin 5
Unit’s inside
Pin 3
Pin 4
Pin 5
[Operation at emergency status output]
Normal condition
Unit’s inside
Pin 6
Pin 7
Emergency status
Pin 8
Unit’s inside
Pin 6
Pin 7
Pin 8
The RJ45’s pin arrangement and pin functions are shown below.
13.6. Status Output Terminal Connections
These terminals provide control outputs of relay contact
type.
Control signals (make contact) are output in synchronization
with unit operation.
