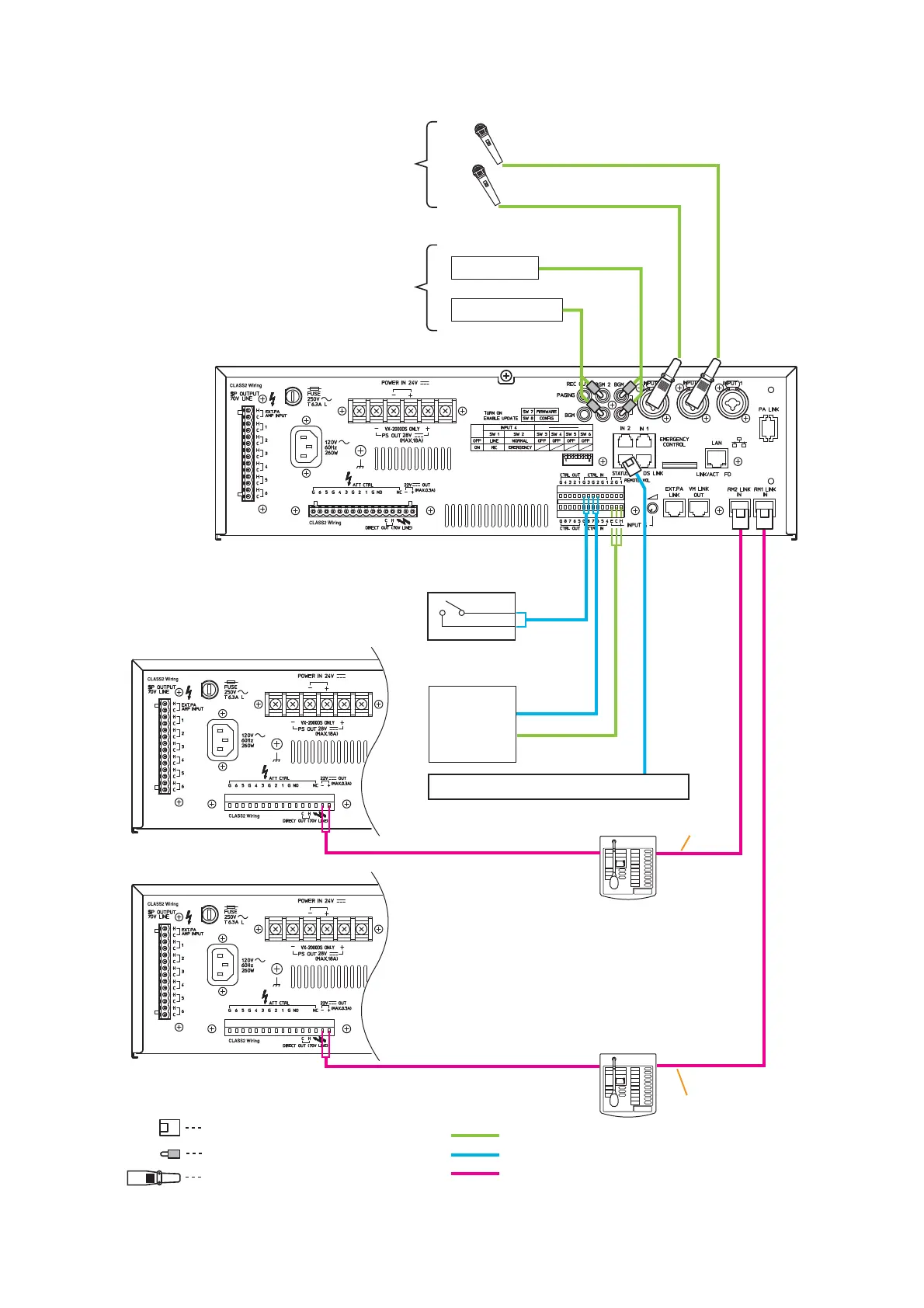

13.2. Audio and Control Connection Example
Cassette Player
CD Player
CAT. 5
CAT. 5
Talk switch or other
make contact
BGM sources
Paging microphones
VM-3240VA rear
PBX
Notification Appliance Circuits Extender
Control
Audio
RM-200M
RM-200M
VM-3240VA/3240E rear
VM-3240VA/3240E rear
XLR type female connector
RCA plug
RJ45 male connector
Audio line
Control line
Audio + control + DC power line
