Toa RM-200M - FACP and NAC and UPS connection

94

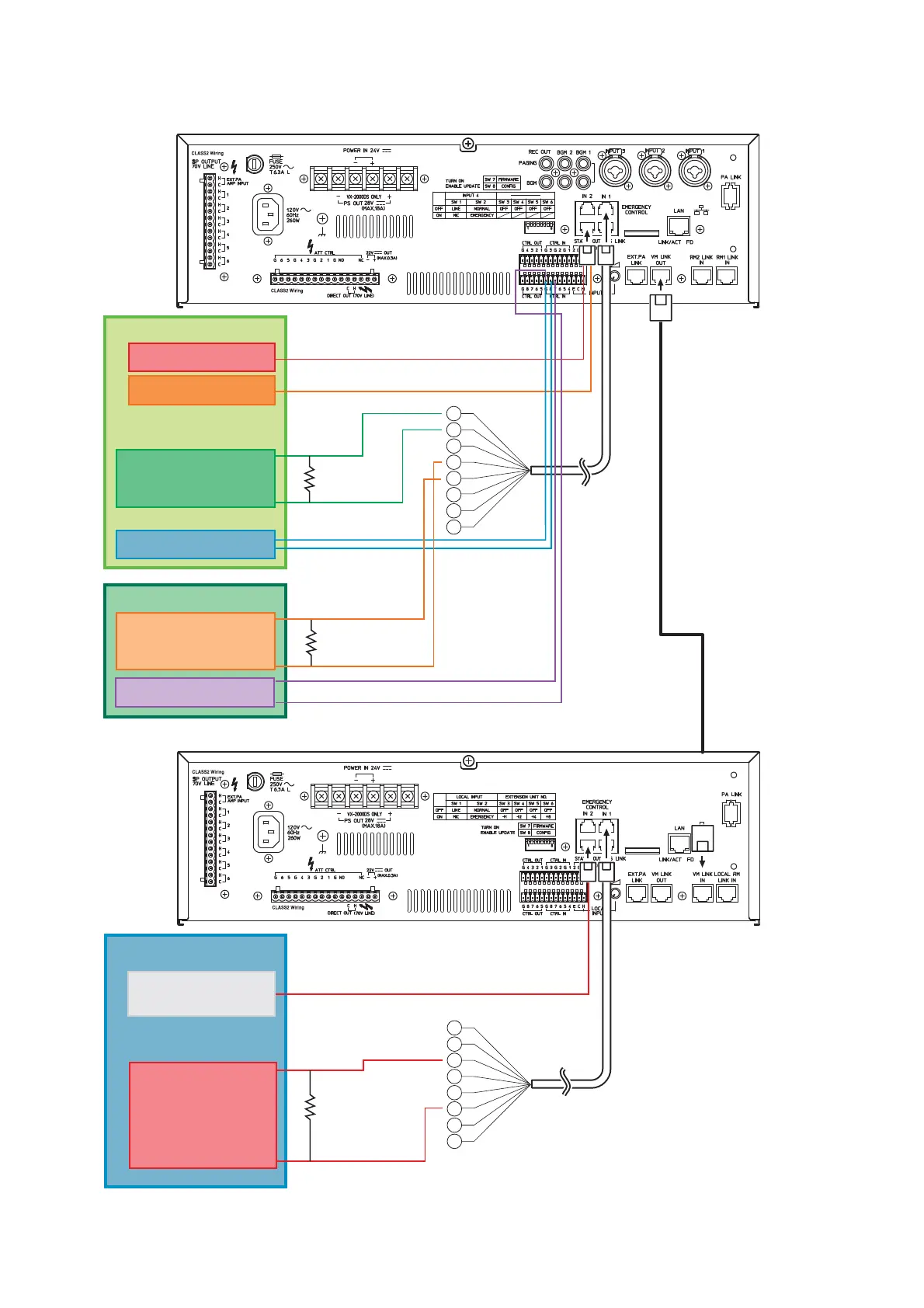

[FACP and NAC and UPS connection]
VM-3240VA rear
VM-3240E rear
EMERGENCY STATUS OUT
CTRL IN 1
10 kΩ
COM 1
1
2
3
4
5
6
7
8
FACP
MNS ACTIVE INPUT
FACP FAULT OUTPUT
MNS FAULT INPUT
FACP ACTIVE OUTPUT
FAULT STATUS OUT
EMERGENCY STATUS OUT
CTRL IN 2
10 kΩ
COM 2
1
2
3
4
5
6
7
8
NAC EXTENDER
NAC FAULT OUTPUT
MNS-NAC
ACTIVE INPUT
CTRL IN 3
COM 3
UPS
UPS FAULT OUTPUT
AC DOWN OUTPUT
10 kΩ
CTRL IN 7
COM
CTRL IN 8
COM
