Page 2-22 Document Ref 942583-001 Rev 8
Site Preparation Quantium 510 Installation Manual

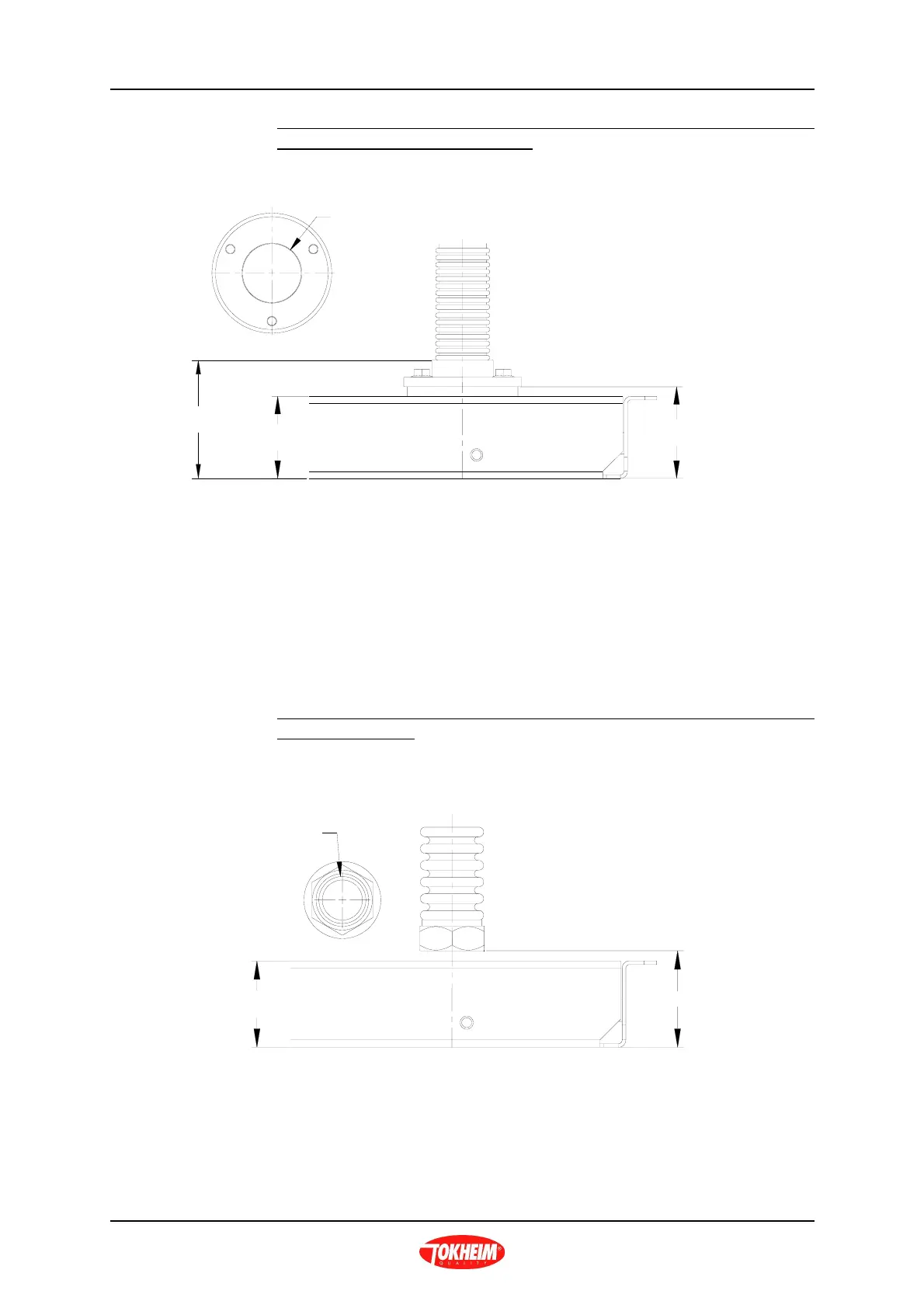

Suction Connection - Flexible Coupling to 1.5” Female Thread (with &
without Filterbox)
Ø38
Option - Flexible coupling to
1.5" female thread
Rc 1.5"
70
Driptray
height
78
O-ring seal level
Island Level
Suction Connection - Flexible Coupling to 1.5” O-ring Compression
Flange (with & without Filterbox)
Ø50
70
Island Level
Driptray
height
101
Flexible coupling to 1.5"
O-ring compression
flange
max
O-ring seal level
78
