Document Ref 942583-001 Rev 8 Page 2-23

Quantium 510 Installation Manual Site Preparation

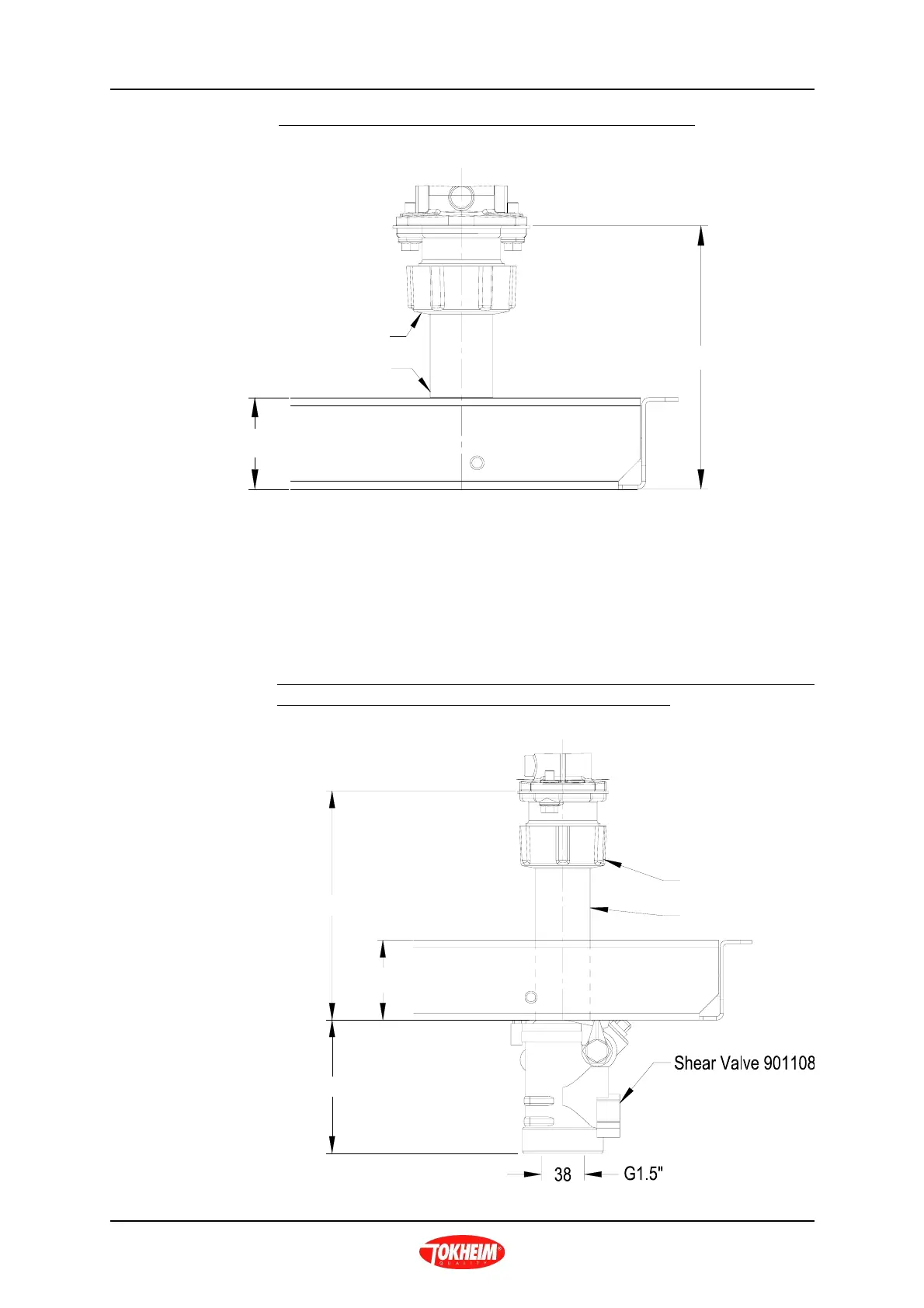

Submerged Connection with Nefit Adaptor & Shear Valve (Filterbox

only) - Dispensers Manufactured Before June 2014

Adapter NEFIT

Pipe 903583

201

Island Level

117

Driptray

height

Filter Level

Suction Connection with Nefit Adaptor (Filterbox only)

Driptray

height

Inlet riser pipe

NEFIT adapter

201

Island Level

Filter Level
