Document Ref 942583-001 Rev 8 Page 4-7
Quantium 510 Installation Manual Packaging & Handling

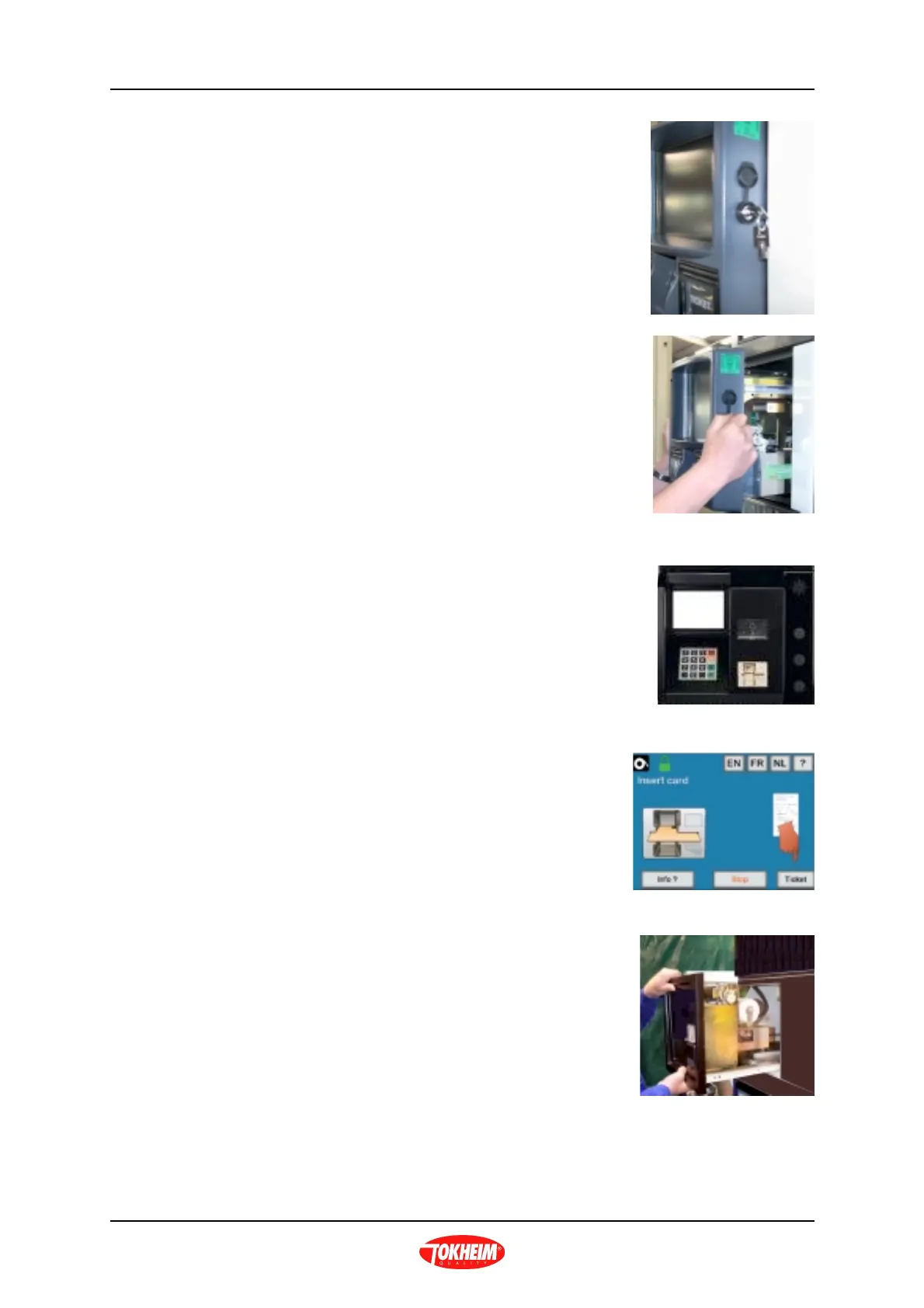

IQ7000 DIT
The IQ7000 is locked with special tubular keys.
•Locate the tubular keys for the IQ7000 DIT.
•Unlock the IQ7000 DIT.
•Carefully slide the IQ7000 drawer open.
•Repeat for the opposite side of the dispenser as
required.
•To re-fit, follow the instructions in reverse.
IQ6000 DIT
The IQ6000 DIT is electronically locked and can only
be released at the Fuel Point of Sale (POS) in the
kiosk.
•Swipe the Maintenance/Service card at the POS or
terminal and select the option Maintenance/Service.
Note : A spanner or paper roll on the display
indicates the terminal is in Maintenance/Service
mode.
•Press first the padlock and then ‘Ticket’ on the
DIT screen to disarm the electronic lock.
•Slide the IQ6000 drawer open.
Note : The red open padlock on the Fuel POS
display indicates the drawer is open and
unalarmed.
•Repeat for the opposite side of the dispenser as
required.
Note : Closing the drawer will re-arm the
electronic lock.
•To re-fit, follow the instructions in reverse.
