■ 3-76

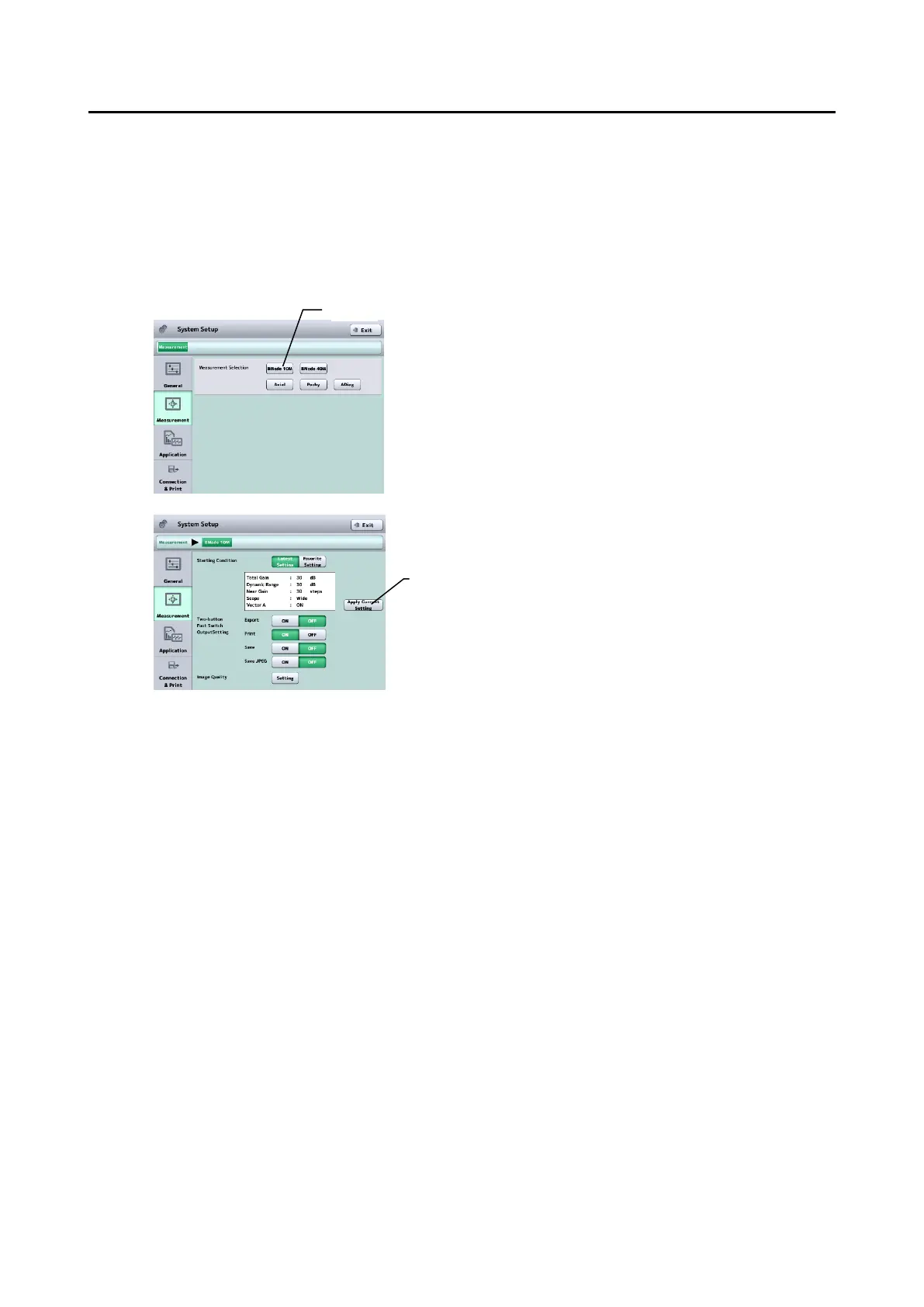

3.9.2 Measurement
Make settings related to measurement on this screen. Select the Measurement tab.
a) Measurement Selection: B-Mode 10MHz
Touch the “B-Mode 10MHz” button (1) to make settings for 10 MHz
● Starting Condition
Set the default condition of the instrument when power is turned on and when the
measurement mode is switched.
Latest Setting : The system starts with values set when power was last turned off.
Favorite Setting : The system starts with setting values shown in the setting display.
Touch the “Apply Current Setting” button (2) to show setting values on the
last real-time screen in the setting display.
● Foot Switch (Two Button)
Select functions of the two-button foot switch.
All functions selected by one operation of the foot switch are executed.
Export : ON/OFF
Print : ON/OFF
Save : ON/OFF
Save JPEG : ON/OFF
(1)
(2)
