3-81 ■

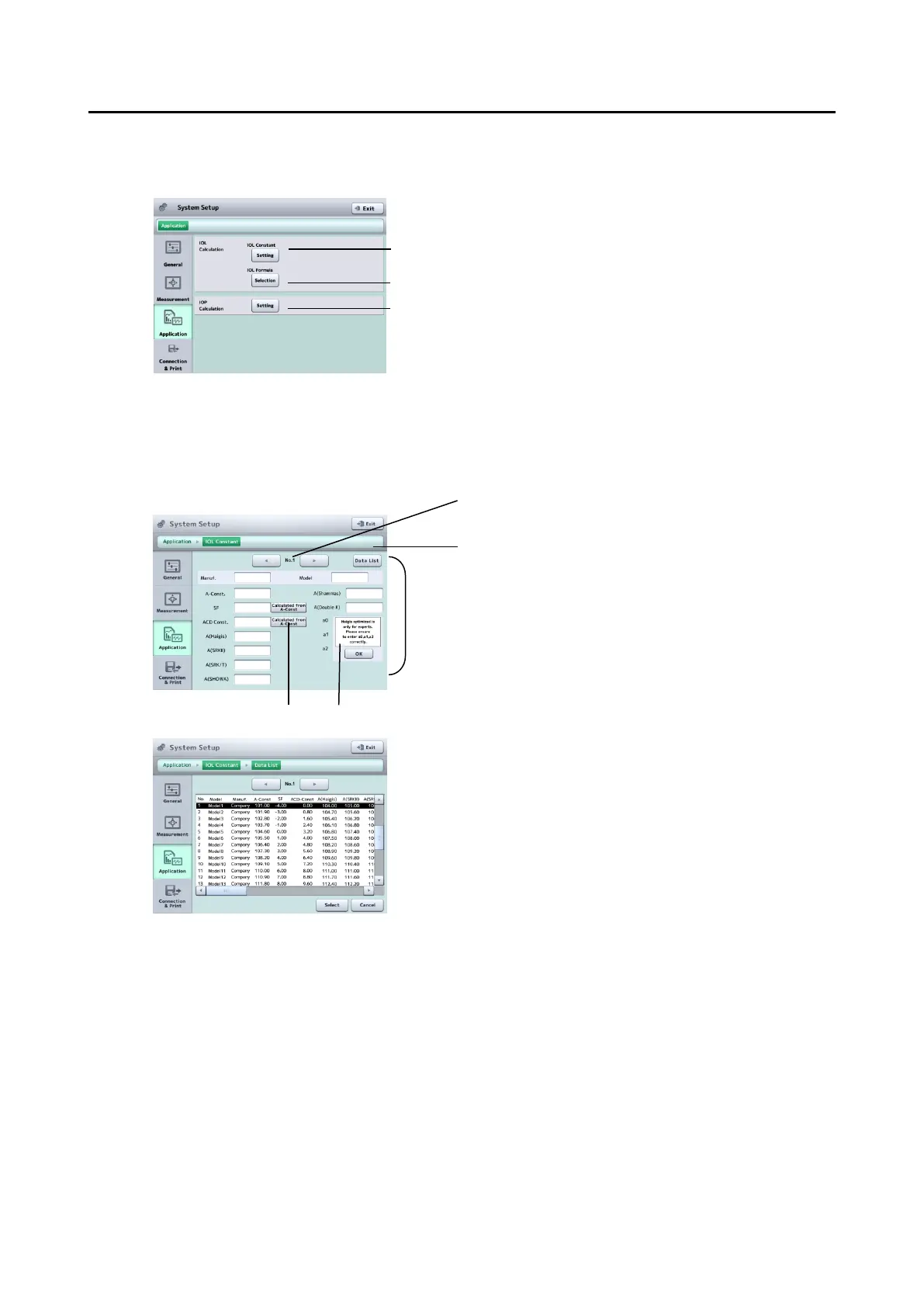

3.9.3 Application
Make settings related to measurement of calculation, correction, etc. Select the Application tab.
a) Registering IOL data
Touch the IOL Constant “Setting” button to open the System Setup – IOL Constant screen (Fig.
1).
(1) Data list No.
Set the registration number of the IOL data list.
(2) “Data List” button
The IOL data list (Fig. 2) is displayed.
(3) IOL data input field
Enter each item. The software keyboard appears when the entry field is
touched.
(4) “Calculated from A-Const” button
Calculates the values corresponding to SF and ACD constants. The
calculated values are displayed in the respective input boxes.
Registration of IOL data
Selection of IOL power
formula
Setting of IOP correction
formula
(4)
(5)
(1)
(2)
(3)
(Fig. 1)
)
(Fig. 2)
)
