3-49 ■
d) Measurement mode
Set the measurement mode.
● Auto mode : Select this for measurement in Auto mode.
● Manual mode : Select this when measurement is difficult in Auto mode.

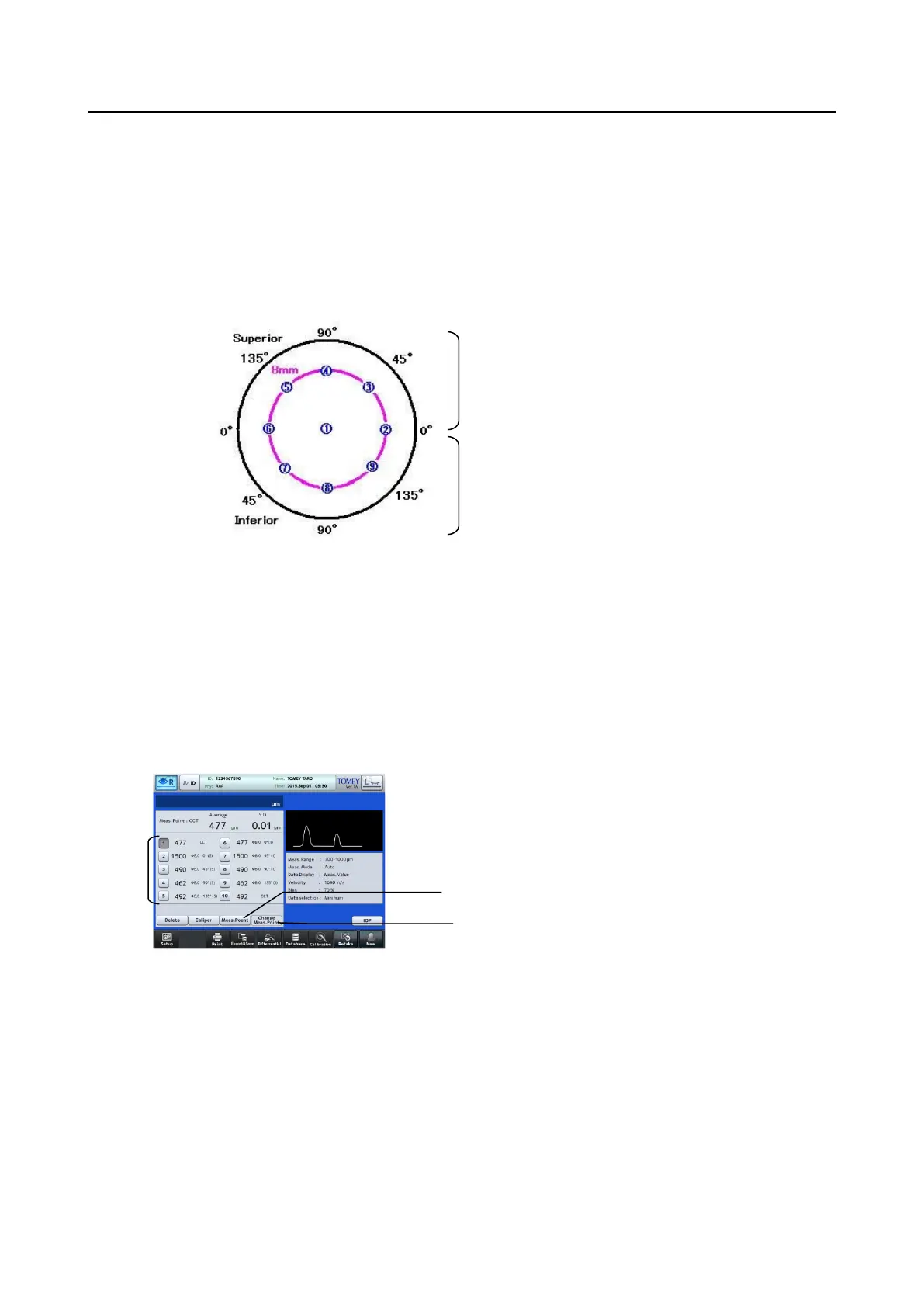

3.6.3 Displaying and setting measurement points
The measurement point indicates “diameter – angle – S/I.”
 Radius : Radius from the center (mm)
 Angle : The upper and lower angles (°) when regarding the horizontal axis as zero degrees
 S/I : Section above the horizontal axis (Superior), section below the horizontal axis
(Inferior)
The center point is indicated as “CCT.”
1) Touch the "Meas Point" button (1) to display measurement points in the
measurement data display field (2).
(fig.2)
2) Touch the “Change Meas. Point” button (3) to open the measurement point
change screen (Fig. 1) to change the measurement point.
Above the
horizontal
axis
Below the
horizontal
axis
(1)
(3)
(2)
