2-2

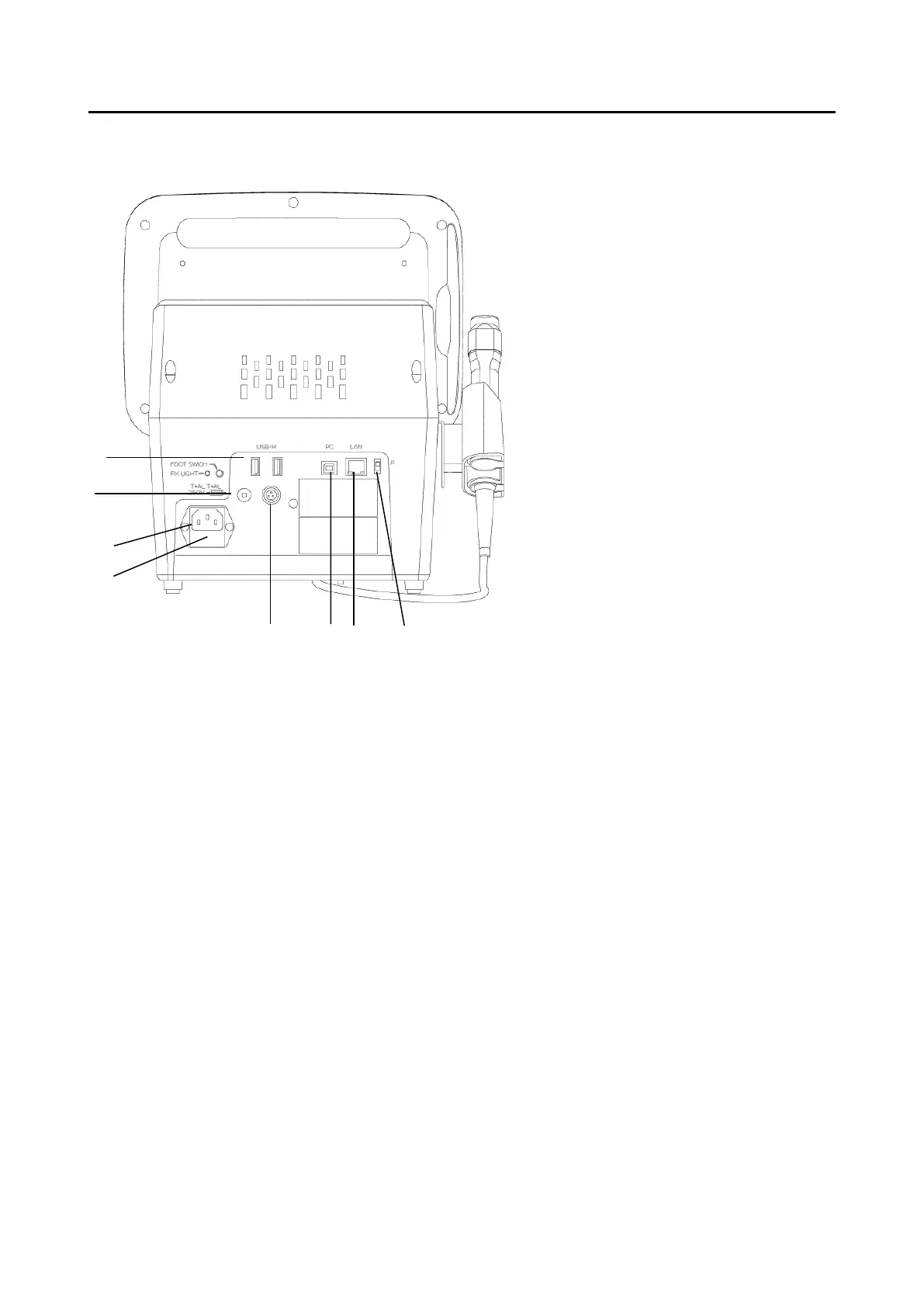

2.2 Back of the main unit
(1)
Maintenance switch
Our serv
ice personnel us
e this swit
ch for maintena
nce. Nev
er touch this
switch.
(2)
LAN connector
(3)
USB-D connector
(PC) Co
nnect a persona
l compute
r here.
(4)
Foot switch conn
ector
(5)
Inlet
(6)
Fuse holder
(7)
Connector for ext
ernal stor
age media such
as USB flash m
emory
, a v
ideo printer
, and an
external ID in
put devic
e, etc.
(8)
Connector for f
ixlight
Connect the
external fixl
ight of the spe
cial chin rest
here.
(1)
(2)
(3)
(4)
(5)
(7)
(6)
(8)
21
23
Table of Contents
How to Read this Manual
5
Symbols Used in this Manual
6
Table of Contents
7
Prior to Use
11
Precautions for Operation
11
Checking Package Contents
15
Glossary
16
Overview
19
Names and Functions
21
Front of the Main Unit
21
Back of the Main Unit
22
Sides of the Main Unit
23
Screen
24
Common Items
24
B Mode Image Diagnosis Screen
25
Axial Length Measurement/View Screen
27
Pachymetry Screen
29
A-Diag Measurement Screen
30
Symbols Used for Marking
32
Operation Procedures
33
Preparation before Use
33
Connections
33
Turning the Power on and Adjustment after Turning the Power on
37
Switching Modes
37
Entering the Patient Data
38
Deleting All Measurement Data (Measurement Preparation for Other Patient)
41
Selecting an Eye
41
B Mode Image Diagnosis
42
Settings Related to Measurement
42
Displaying Probe Angle
42
Gain Adjustment
44
Patient Preparation
45
Obtaining Ultrasonic Image
46
Various Functions
47
Biometry Function
54
Setting Measurement Conditions
54
Operation Check
57
Preparation for Measurement
57
Precautions for Measurement
58
Measurement
64
Checking Waveforms after Measurement
67
IOL Power Calculation
70
Calculation
70
Entering Calculation Parameters
70
Setting Calculation Formula
75
Entering Data after Surgery
76
Statistical Processing
77
Pachymetry Function
79
Setting the Data Type to be Displayed
79
Setting Measurement Conditions
79
Displaying and Setting Measurement Points
81
Operation Check
82
Preparation for Measurement
82
Measurement
83
Checking Measurement Data
84
A Mode Diagnosis
88
Connecting the Probe
88
Switching to a Mode Diagnosis Function
88
Registering Ref. Data
88
Measurement
89
Setting Gain
89
Switching Data Display
90
Setting the Beam Direction
90
Gradation Characteristics Function
91
Analysis Functions
91
Export, Print, and Save
93
Export
93
Print
95
Saved Data Management
102
System Setup
105
General
106
Measurement
108
Application
113
Connecting & Printing
115
Technical Information
127
IOL Power Calculation Formula
127
Haigis Optimized / Haigis Standard
127
Hoffer ® Q Formula
129
Holladay 1
131
SRK-II Formula
133
SRK/T Formula
135
SRK SHOWA Formula
137
Shammas-PL Formula
138
SRK/T Double K
140
How to Calculate Axial Length Using the Biometry Function
142
Phakic Eye
142
Dense Cataract Eye
142
Aphakic Eye
142
IOL Eye
142
Amplifier Characteristics of the A-Scan Diagnosis
144
Ultrasonic Wave Output
144
Inspection and Maintenance
145
Warranty
145
Operation Life
146
Inspection
146
Routine Maintenance
146
Maintenance of Measurement Probes
146
Cleaning and Disinfection of Measurement Probes (for Europe)
148
Maintenance of Main Unit
150
Replacing Consumables
151
Fuses
151
Printer Paper
151
Storing
152
Disposal
152
Troubleshooting
153
Common Items
153
B Mode Image Diagnosis
155
Biometry Function
157
Pachymetry Function
160
Consumables and Optional Equipment
163
Spare Parts
163
Optional Parts
163
Specifications
165
Quantity of Ultrasonic Energy
169
Noise
171
Operating Environment
171
Classification of ME Equipment
171
Declaration of Conformity to EMC
173
