Tomey UD-800 User Manual

3-35 ■
3.3.6 Checking waveforms after measurement
a) Displaying waveform of arbitrary measurement data

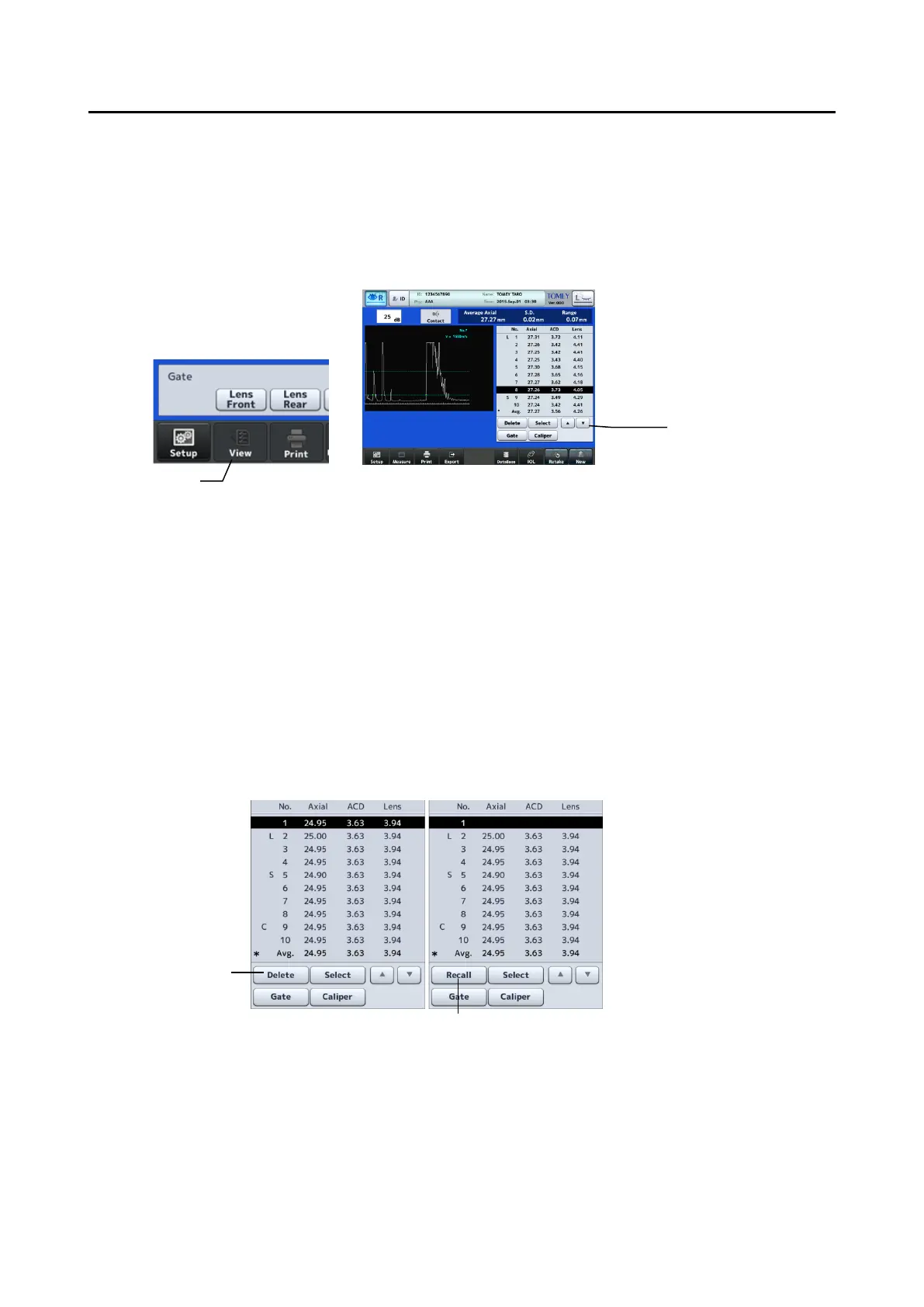

After all necessary measurement data is captured or when the “View” button (1)
is touched, the edit screen (Fig. 1) opens.
(Fig. 1)
1) The waveform measured at the selection cursor is displayed. Touch the
selection cursor movement buttons (2) to move the cursor up or down.
The following marks are assigned to the measurement data.
*
:
Data used for calculating IOL power
L
:
Longest axial length
S
:
Shortest axial length
C
:
Callipered data
b) Deleting and recovering measurement values
1) Touch the “Delete” button (1) to delete the data at the selection cursor. The
data deleted here is excluded from the average.
2) To recover the deleted data, move the cursor to the data. Touch the “Recall”
button (2) to cancel deletion. However, once the screen returns to the
measurement screen, the deleted data cannot be restored by using the
“Return” button even when the screen is switched to the edit screen again.
(2)
(1)
(1)
(2)
