3-1 ■
3. OPERATION PROCEDURES
3.1 Preparation before use
3.1.1 Connections
■ The power connector completely isolates the instrument from the
commercial power source. If there is a problem with the instrument,
turn off the power switch and disconnect the power connector. Install
the instrument in a place where this can be performed smoothly.
■ Faulty connection of the instrument and relevant accessories may
result in fire, electric shock, or fatal accident. Turn off all devices and
disconnect the power plugs from the outlet before connection.
■ The connector needs to be inserted in a specific direction. Check the
direction and firmly insert the connector.

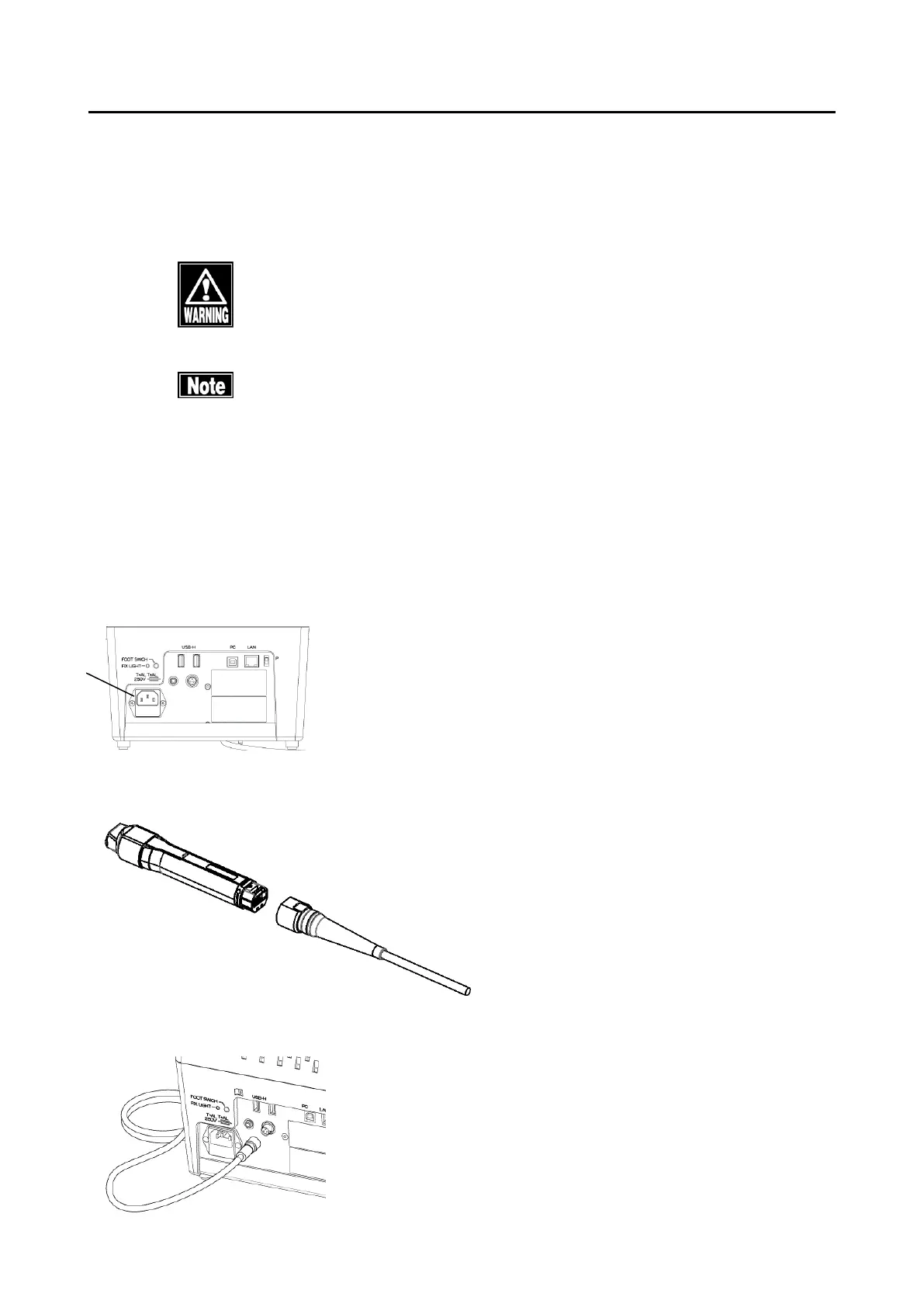

a) Connection of the power cord
1） Insert the connector of the power cord into the power socket (1) in
the correct orientation. Connect all three pins of the plug.
b) Connecting the probe cable
Fully insert it in the correct direction. Press the unlock button
when disconnecting the probe cable.
c) Connecting the foot switch
- Insert the footswitch connector into the footswitch connector
on the back of the instrument, aligning the notches of the
connectors.
- Turn the fixture (3) of the connector clockwise until it stops to
secure the connector.
(Fig. 1)
)
(1)
