3-2

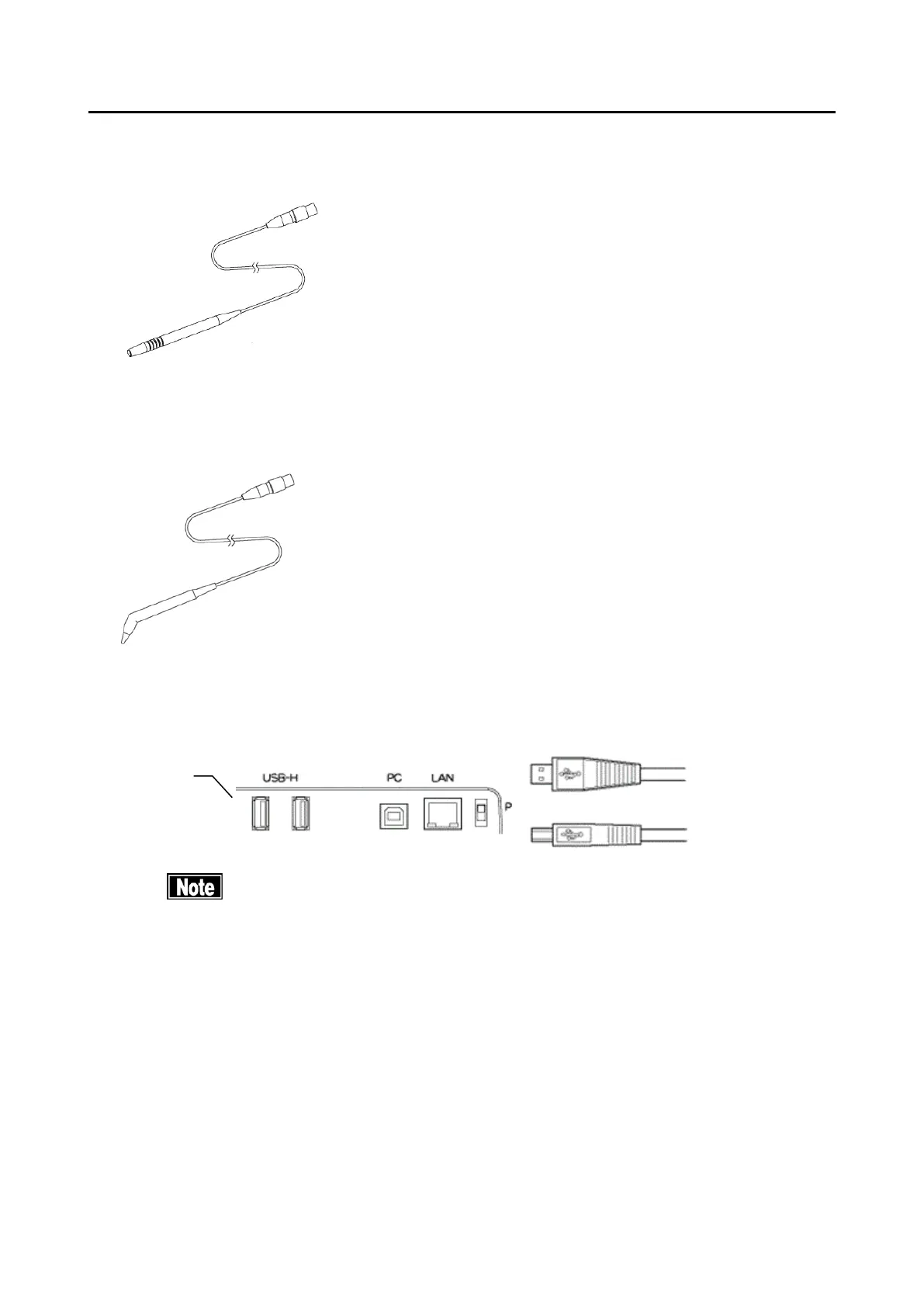

d) Connecting the biometry probe / A-scan diagnosis probe
Insert the connector of the biometry probe into the biometry
probe/A-scan diagnosis probe connector, indicated by “Axial” on
the front of the instrument, in the correct orientation.
e) Connecting the pachymetry probe
Insert the connector of the pachymetry probe into the pachymetry
probe connector, indicated by “Pachy” on the front of the
instrument, in the correct orientation.
f) Connecting an external digital printer
■
Use only the specified printer and cables. Use a video signal cable or
remote cable to connect this instrument to a device conforming to
IEC60601-1 or JIS T 0601-1, or conforming to IEC60950-1 and with a
power source isolated by an isolation transformer.
● Video printer
Insert the cable plug A (1) of the USB cable into the USB connector on the
side of the main unit in the correct orientation.
Connect the other cable plug B (2) of the USB cable to the video printer.
Follow the instruction manual of the video printer for details on how to
connect the printer.
To Next Page
